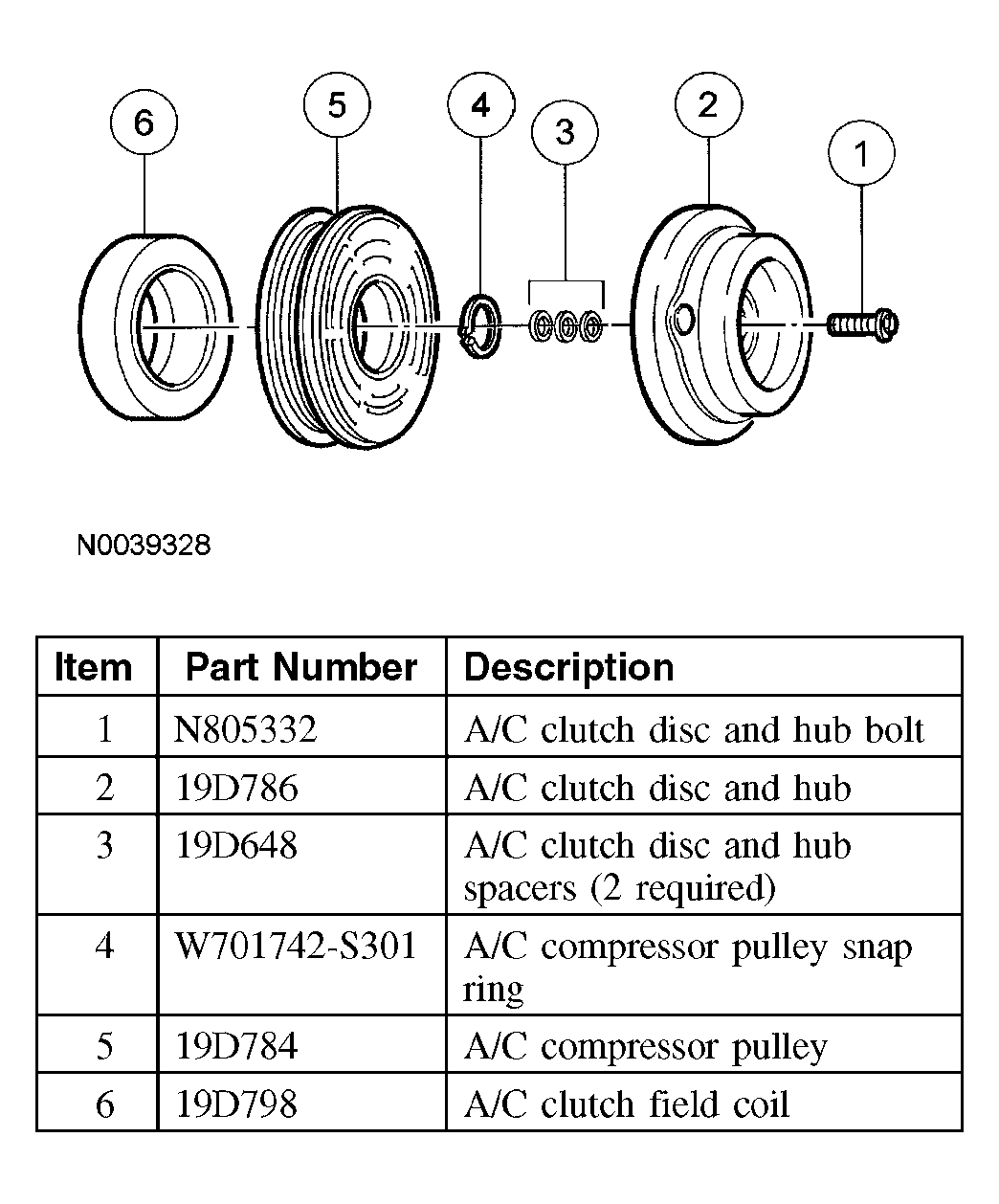

Clutch and Clutch Field Coil: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
|
|
Holding Fixture, Compressor Clutch
412-134 |
|
|
Remover, Compressor Pulley
412-001 (T71P-19703-B) |
|
|
Coil Replacer
412-065 (T89P-19623-EH) |
|
|
Field Coil Replacer
412-078 (T91L-19623-CH) |
|
|
Field Coil Remover
412-067 (T89P-19623-FH) |
Courtesy of FORD MOTOR CO.
