Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the plenum chamber. For additional information, refer to PLENUM CHAMBER .
Remove the RH front wheel and tire.

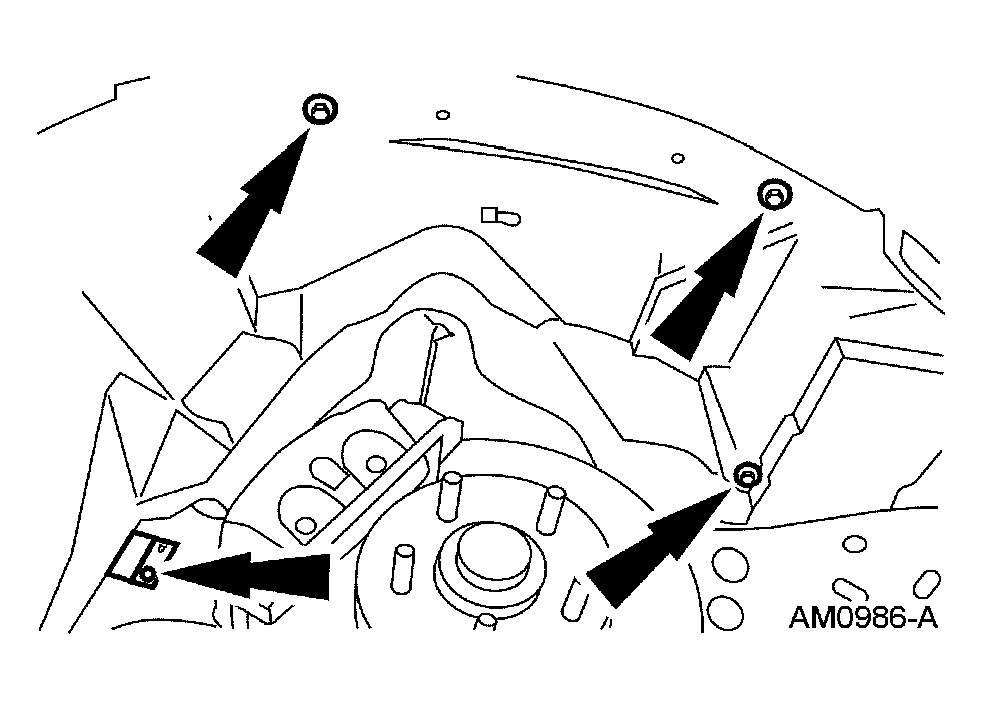

Remove the bolts and reposition the fender apron.

Fig 1: Removing Fender Apron
Courtesy of FORD MOTOR CO.
Remove the bolt.

Fig 2: Identifying Bolts
Courtesy of FORD MOTOR CO.

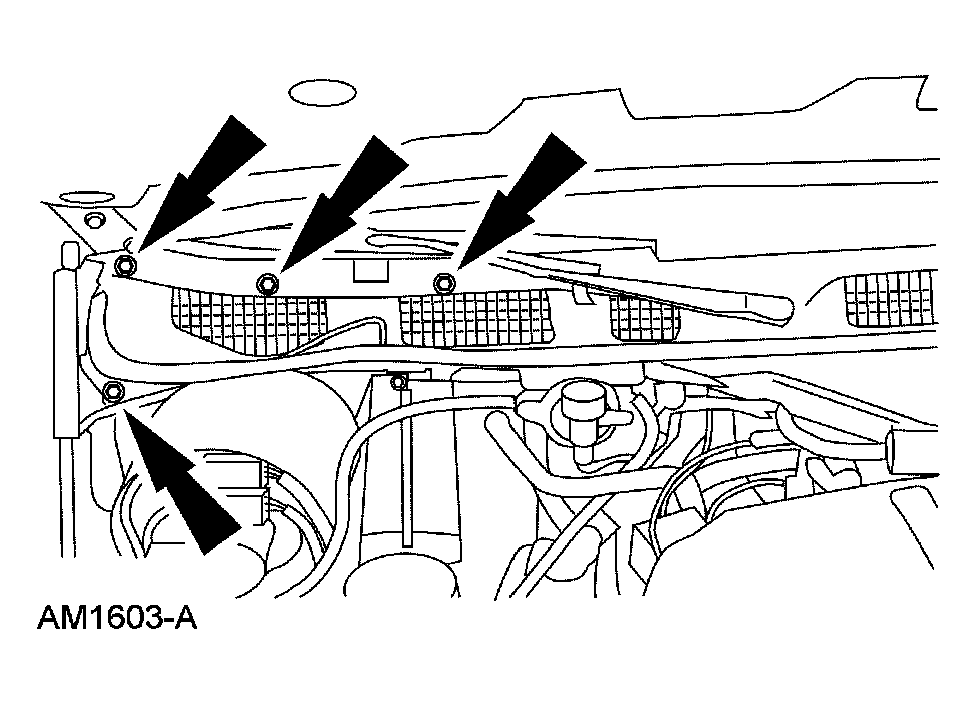

Remove the screws and the pin-type retainer and reposition the cowl top cover to access the air inlet duct nut.

Fig 3: Removing Screws And Pin-Type Retainer
Courtesy of FORD MOTOR CO.

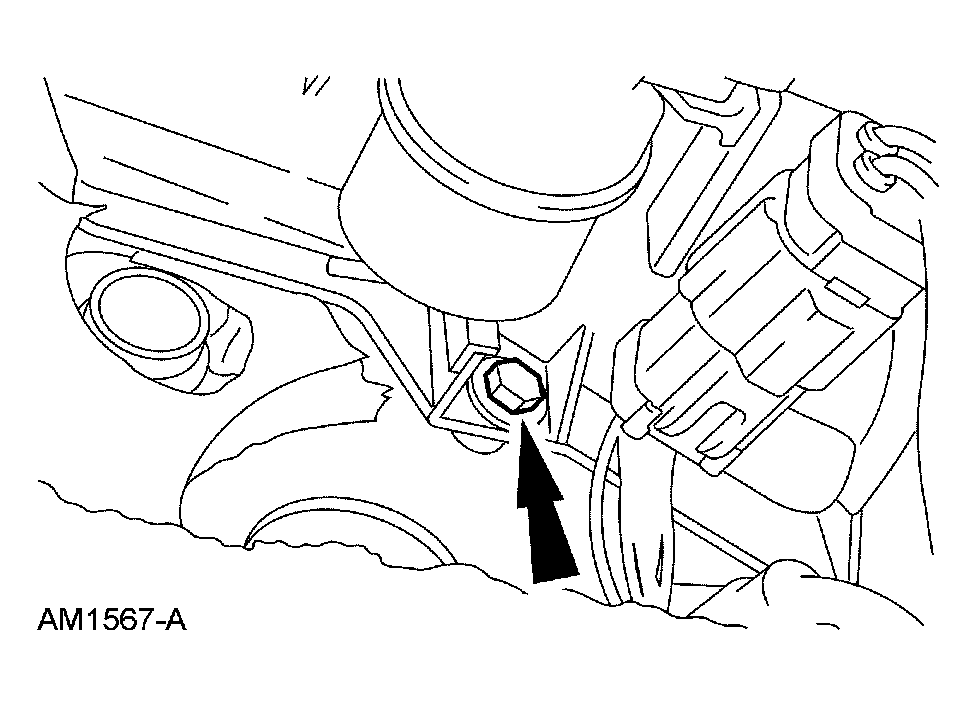

Remove the nut.

Fig 4: Removing Nut
Courtesy of FORD MOTOR CO.

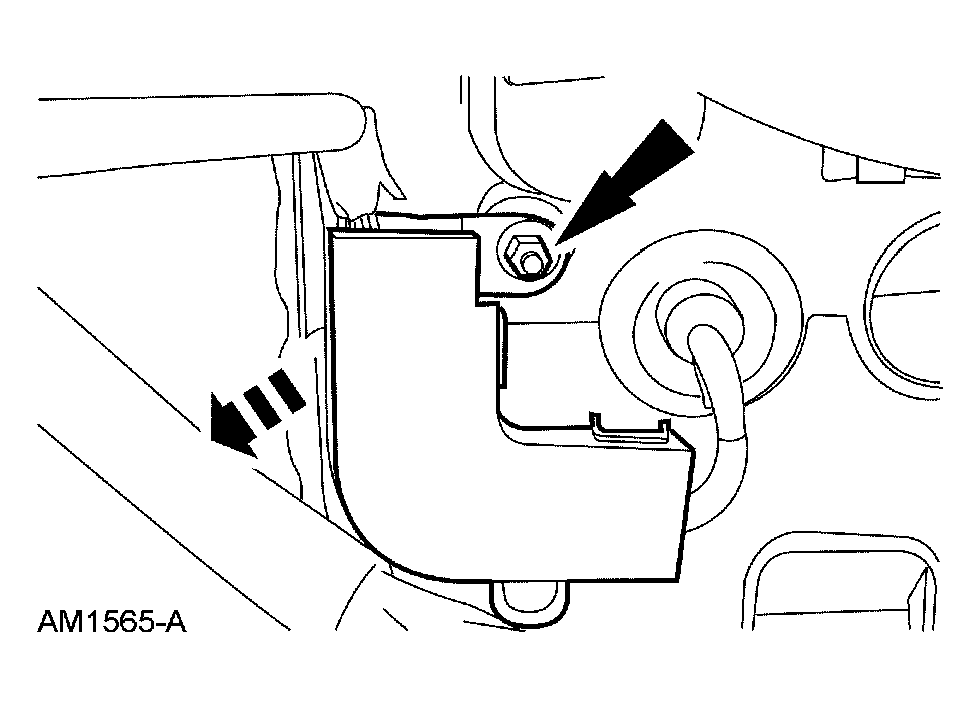

Remove the nut and position the harness cover aside.

Fig 5: Removing Harness Cover
Courtesy of FORD MOTOR CO.
Remove the nut.

Fig 6: Identifying Nut
Courtesy of FORD MOTOR CO.

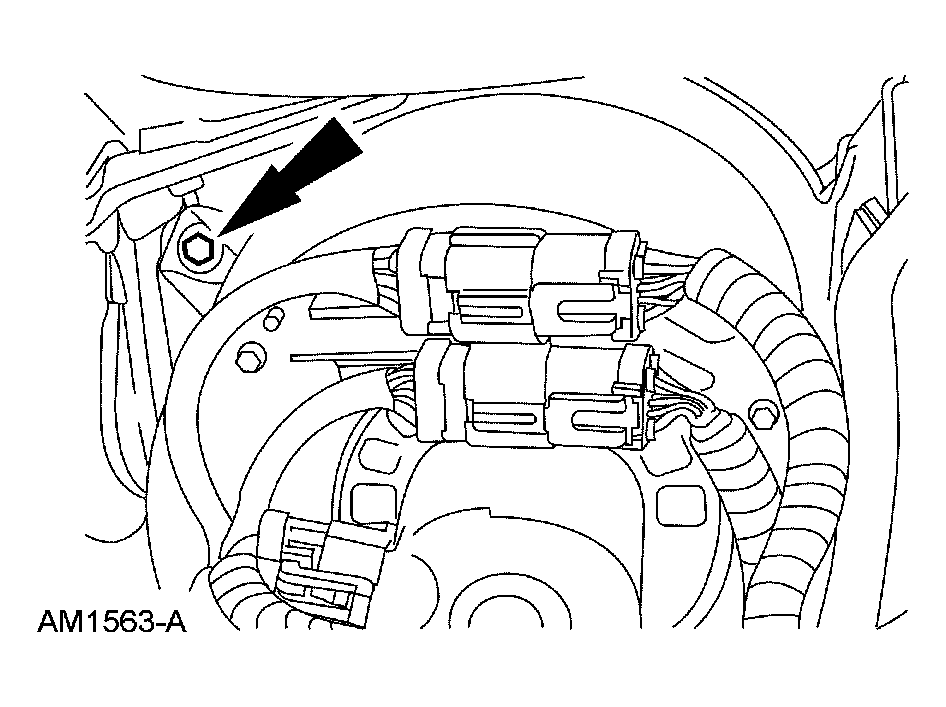

Inside the vehicle, remove the bolt.

Fig 7: Identifying Bolts
Courtesy of FORD MOTOR CO.

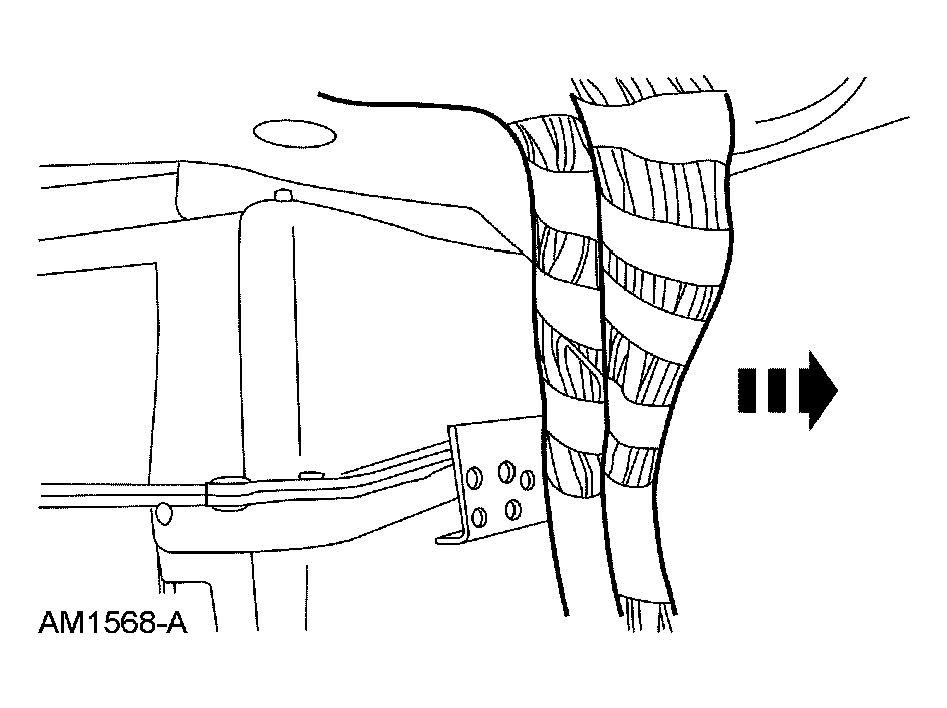

Detach the wire harness.

Fig 8: Removing Wiring Harness
Courtesy of FORD MOTOR CO.

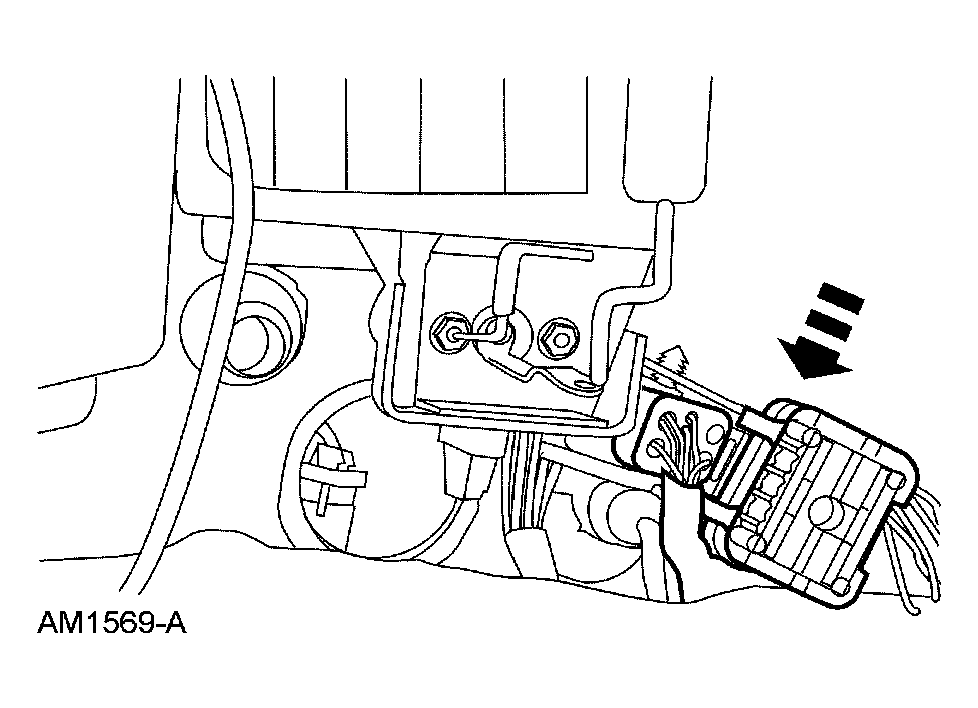

Detach the electrical connectors and remove the air inlet duct.

Fig 9: Detatching Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

To install, reverse the removal procedure.
