Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  1. Remove the transmission support crossmember. For additional information, refer to TRANSMISSION SUPPORT CROSSMEMBER .
  2. Remove the transmission support insulator.

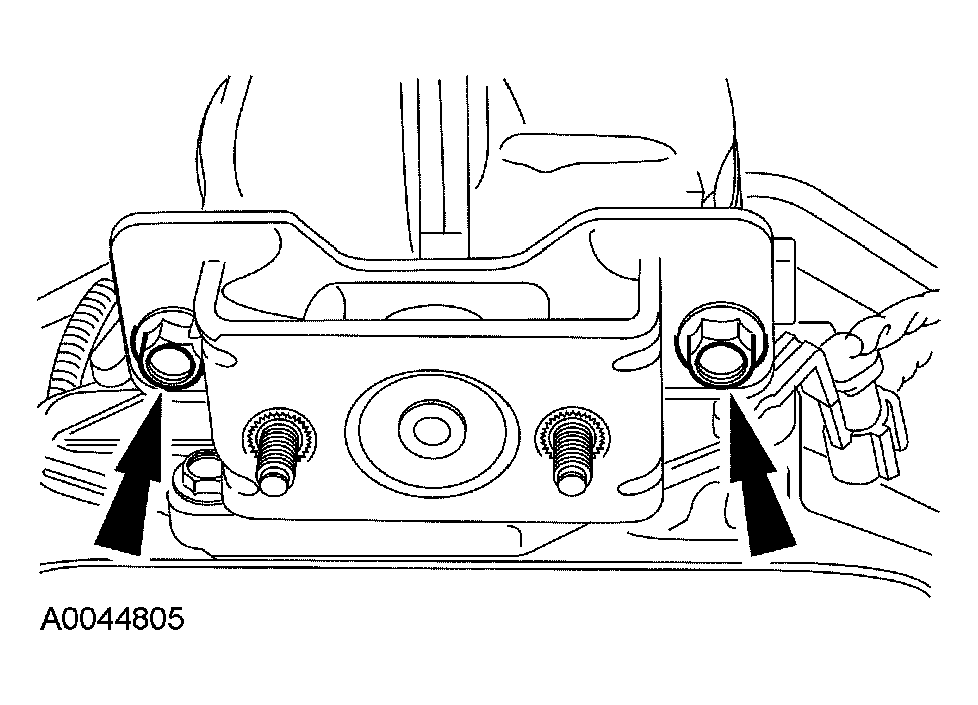

    Fig 1: Removing Transmission Support Insulator
    G04584412Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • Tighten to 90 Nm (66 lb-ft).

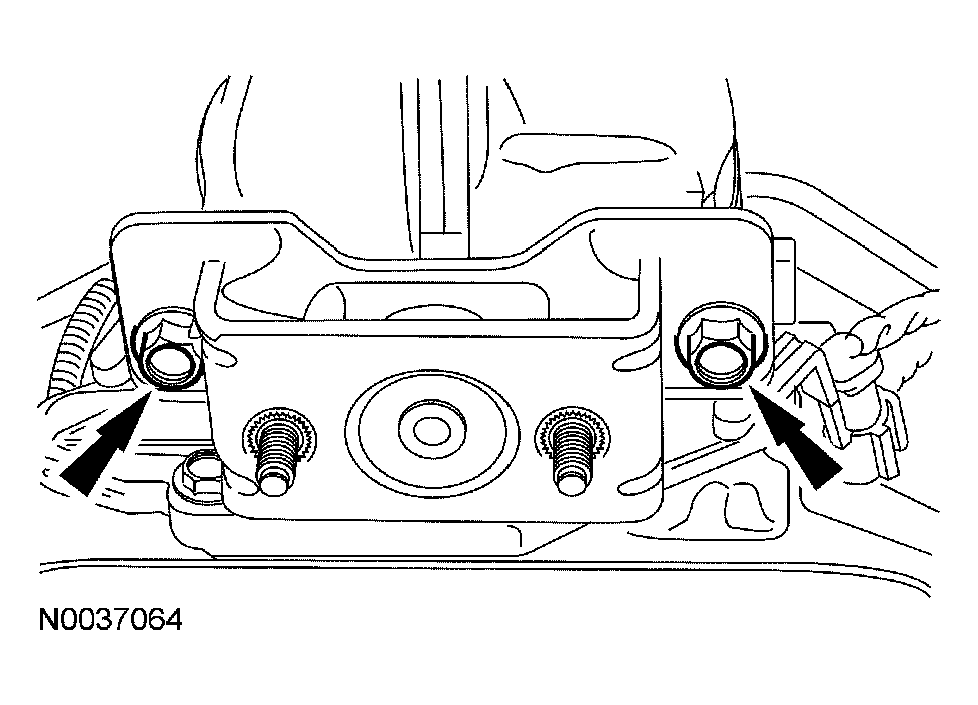

      Fig 2: Installing Transmission Support Insulator
      G04584413Courtesy of FORD MOTOR CO.
    4. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  4. If equipped with fire suppression system, repower the system.
