Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the bolt.

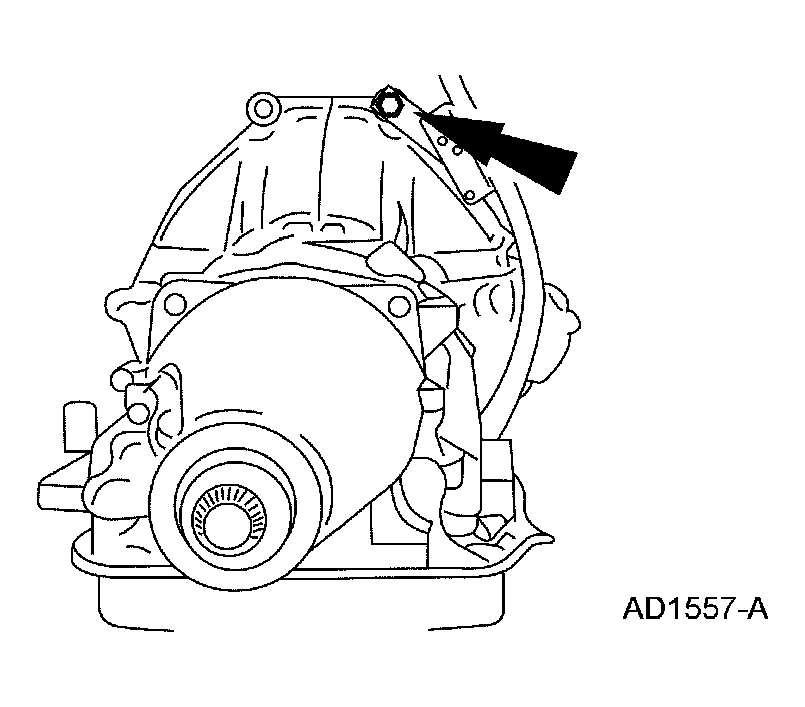

Fig 1: Removing Bolt
Courtesy of FORD MOTOR CO.
Remove the fluid filler tube.

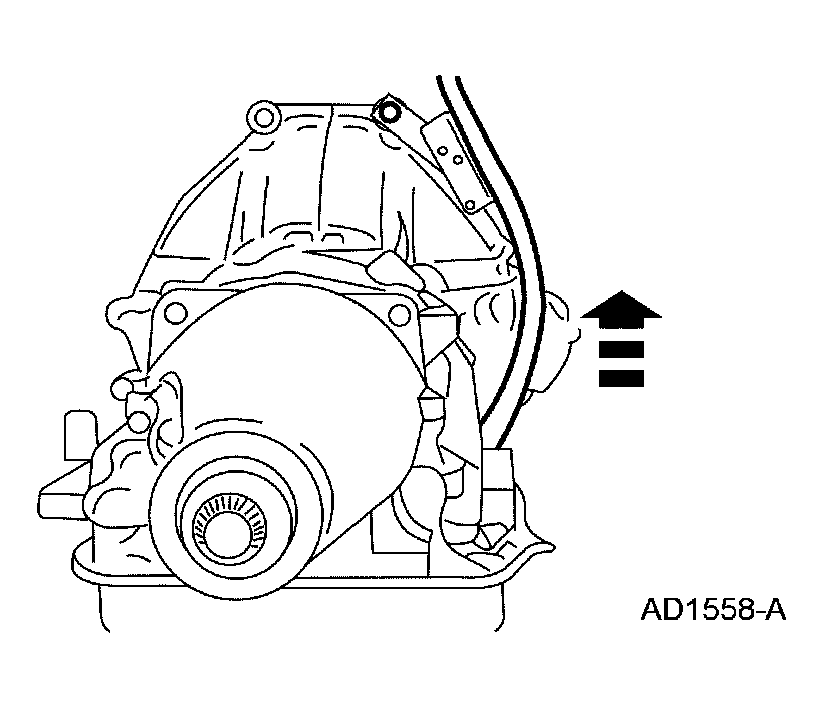

Fig 2: Removing Fluid Filler Tube
Courtesy of FORD MOTOR CO.

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
- Tighten to 48 Nm (35 lb-ft).

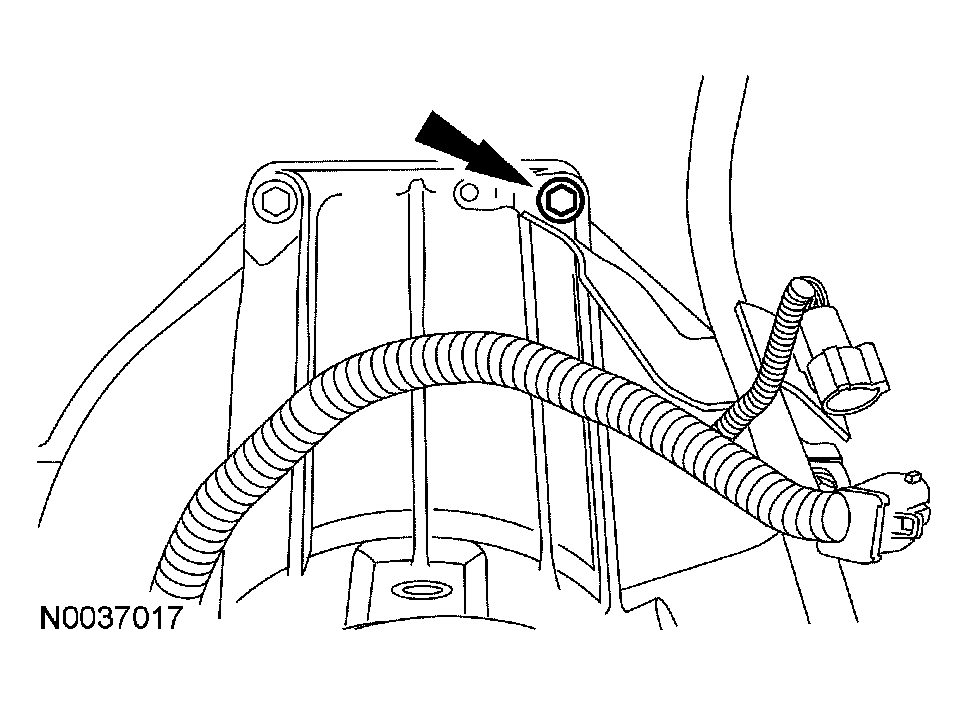

  Fig 3: Identifying Bolt
  Courtesy of FORD MOTOR CO.
