Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the output shaft speed (OSS) sensor electrical connector.
  3. Remove the OSS sensor bolt and the sensor.
    • To install, tighten to 12 Nm (9 lb-ft).

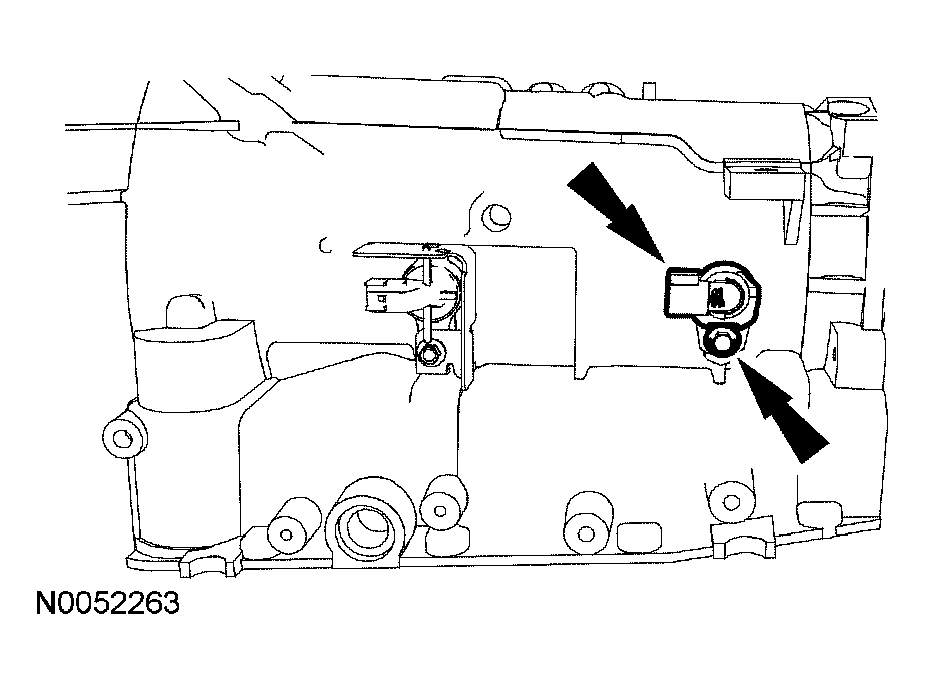

      Fig 1: Removing OSS Sensor Bolt And Sensor
      G04584448Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
