WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

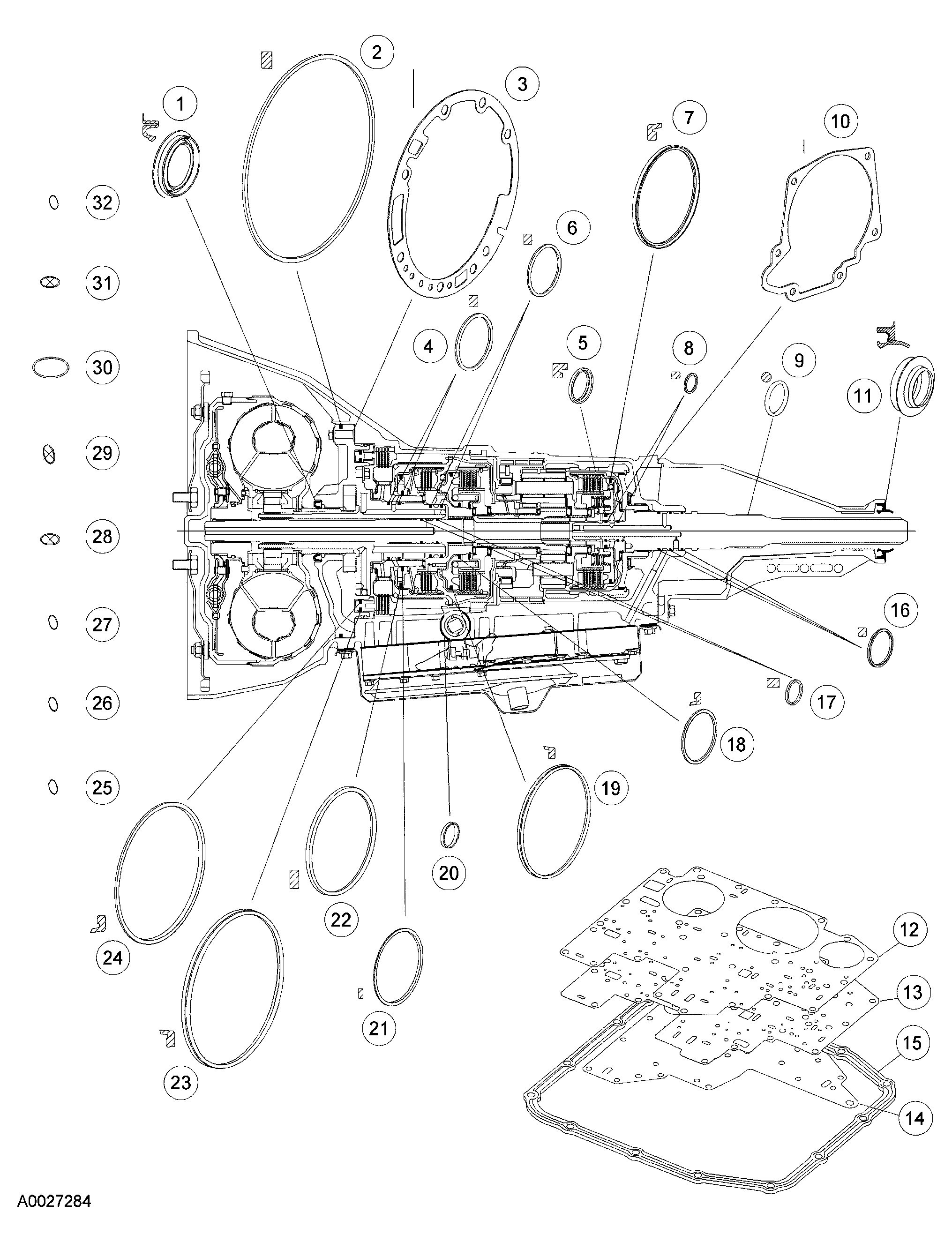

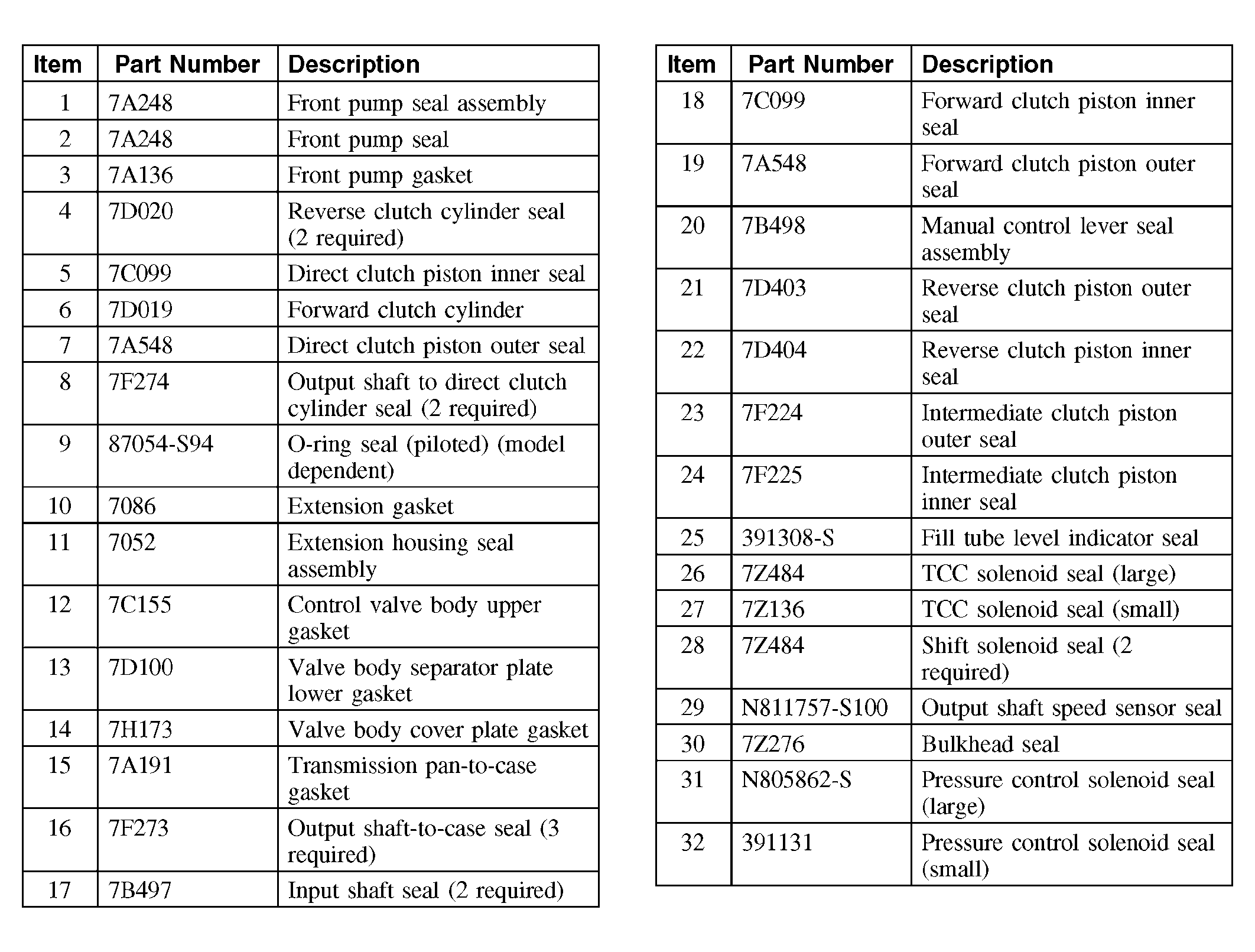

Fig 1: Identifying Automatic Transmission Seals, Rings And Gasket Locator
