Bushings, Bearing and Thrust Washer Locator

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

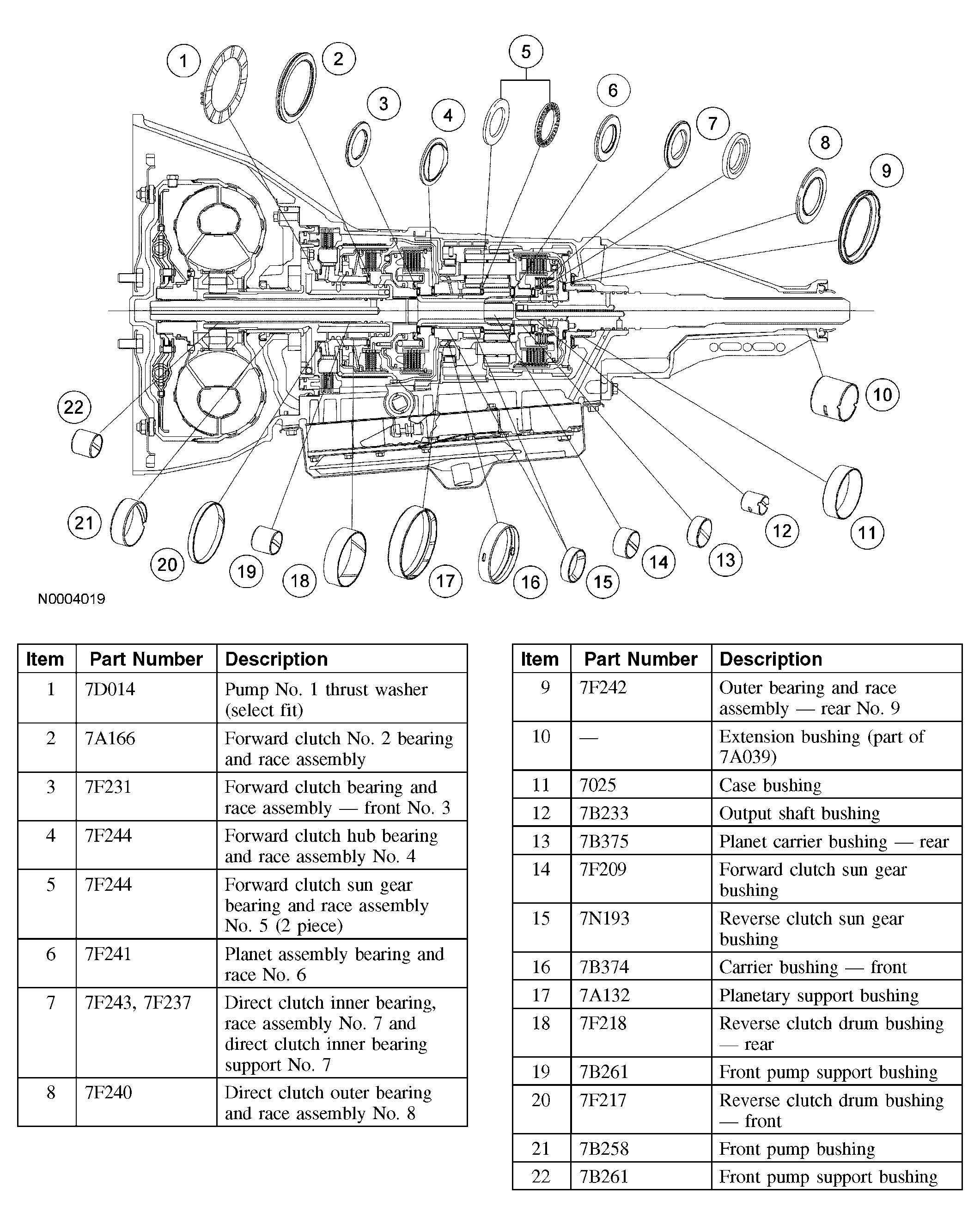

Fig 1: Identifying Automatic Transmission Bushings, Bearing And Thrust Washer Locator Components
G04584176Courtesy of FORD MOTOR CO.
