Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

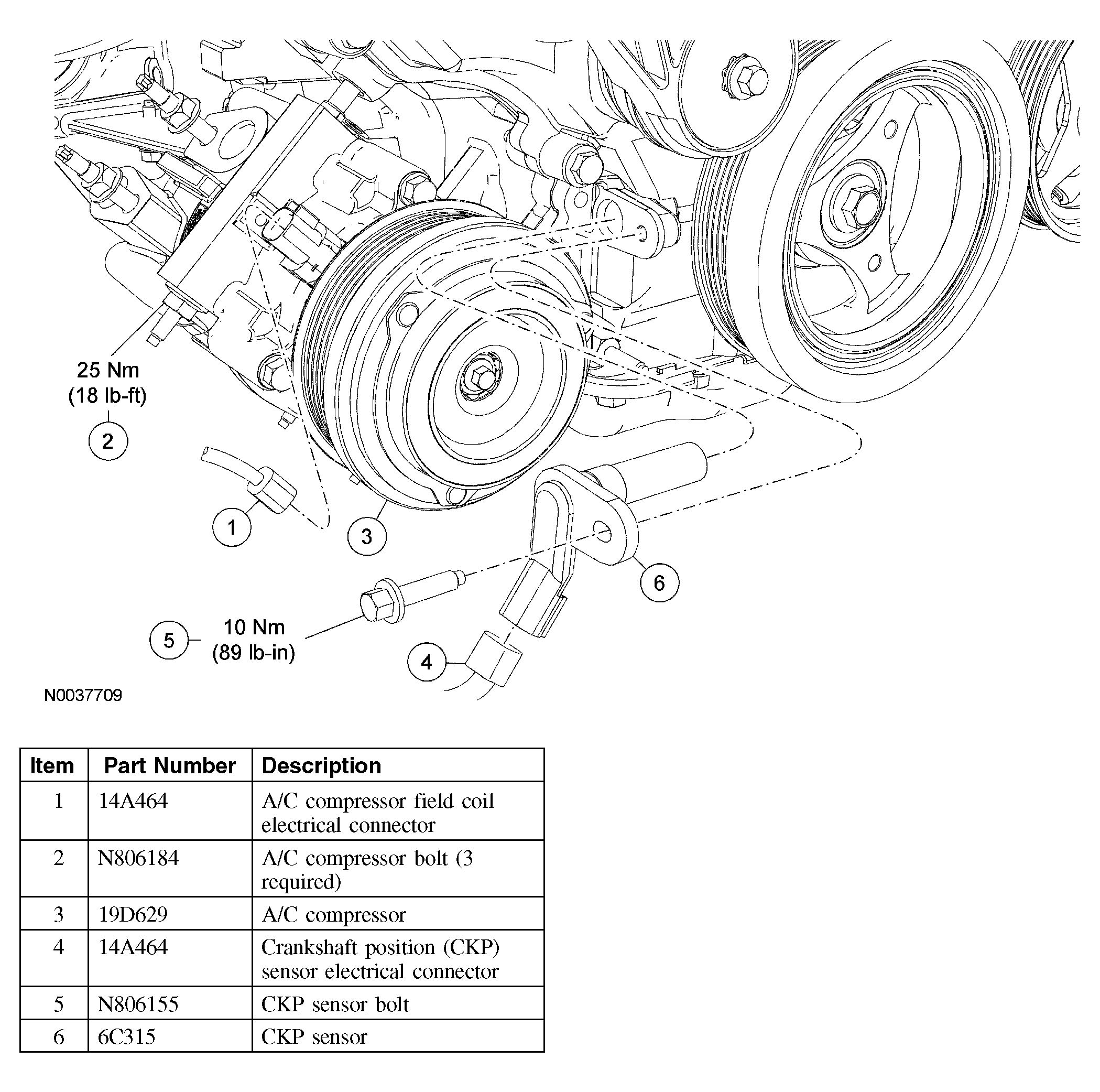

Fig 1: Removing/Installing Crankshaft Position (CKP) Sensor

Courtesy of FORD MOTOR CO.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Rotate the tensioner and remove the drive belt from the A/C compressor pulley.

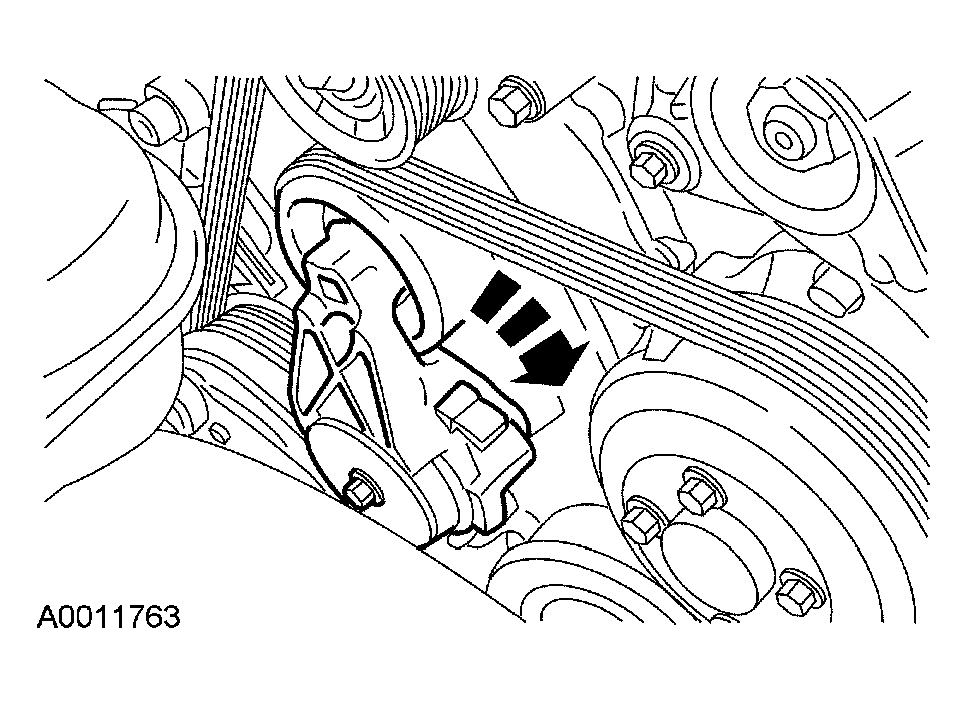

Fig 2: Rotating Drive Belt Tensioner Clockwise
Courtesy of FORD MOTOR CO.
Disconnect the A/C compressor field coil electrical connector.
Disconnect the crankshaft position sensor (CKP) sensor electrical connector.
Remove the nut and detach the wiring harness clips.
- To install, tighten to 9 Nm (80 lb-in).

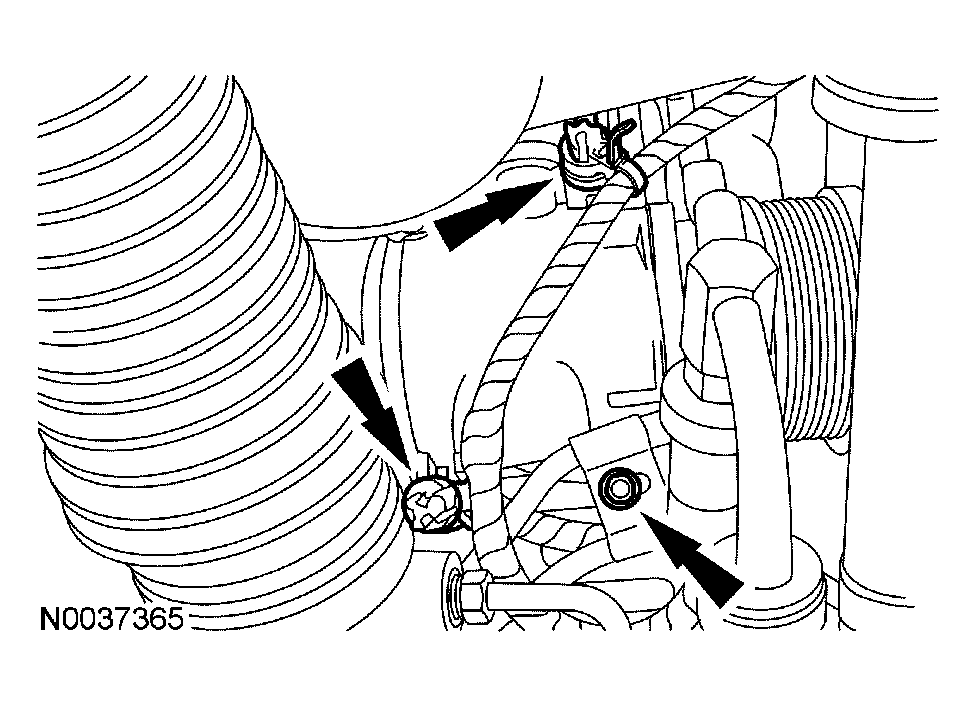

  Fig 3: Detaching Wiring Harness Clips
  Courtesy of FORD MOTOR CO.

NOTE: It is not necessary to remove the A/C compressor bolts.

Loosen the 3 A/C compressor bolts enough to slide the compressor down one inch, allowing access for CKP sensor removal.
- To install, tighten to 25 Nm (18 lb-ft).

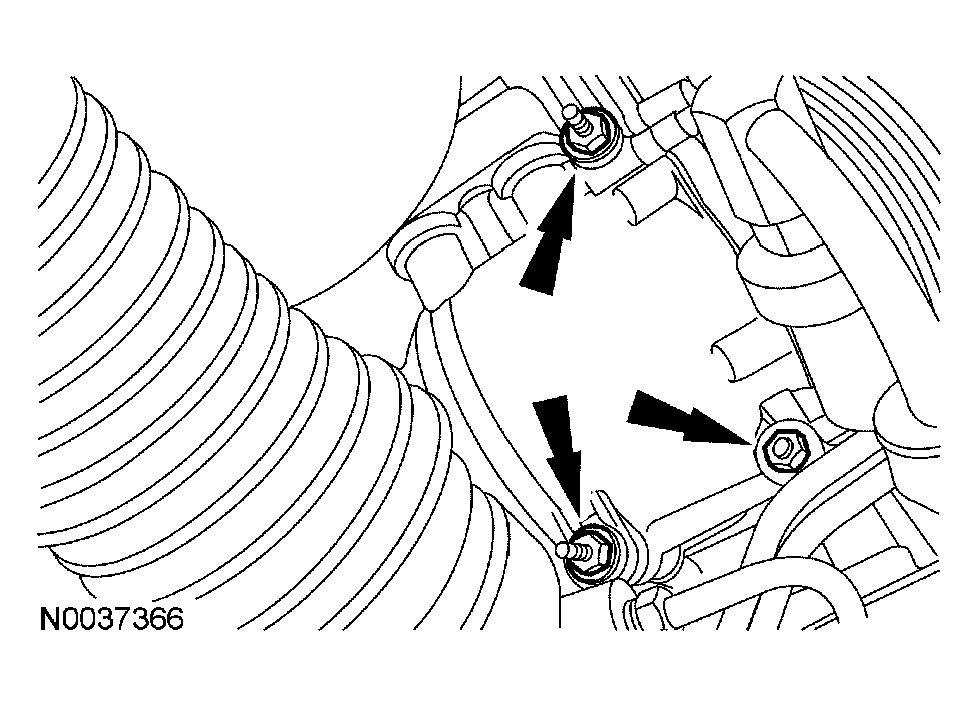

  Fig 4: Loosening A/C Compressor Bolts
  Courtesy of FORD MOTOR CO.
Remove the CKP sensor bolt.
- To install, tighten to 10 Nm (89 lb-in).
Remove the CKP sensor.

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
