Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

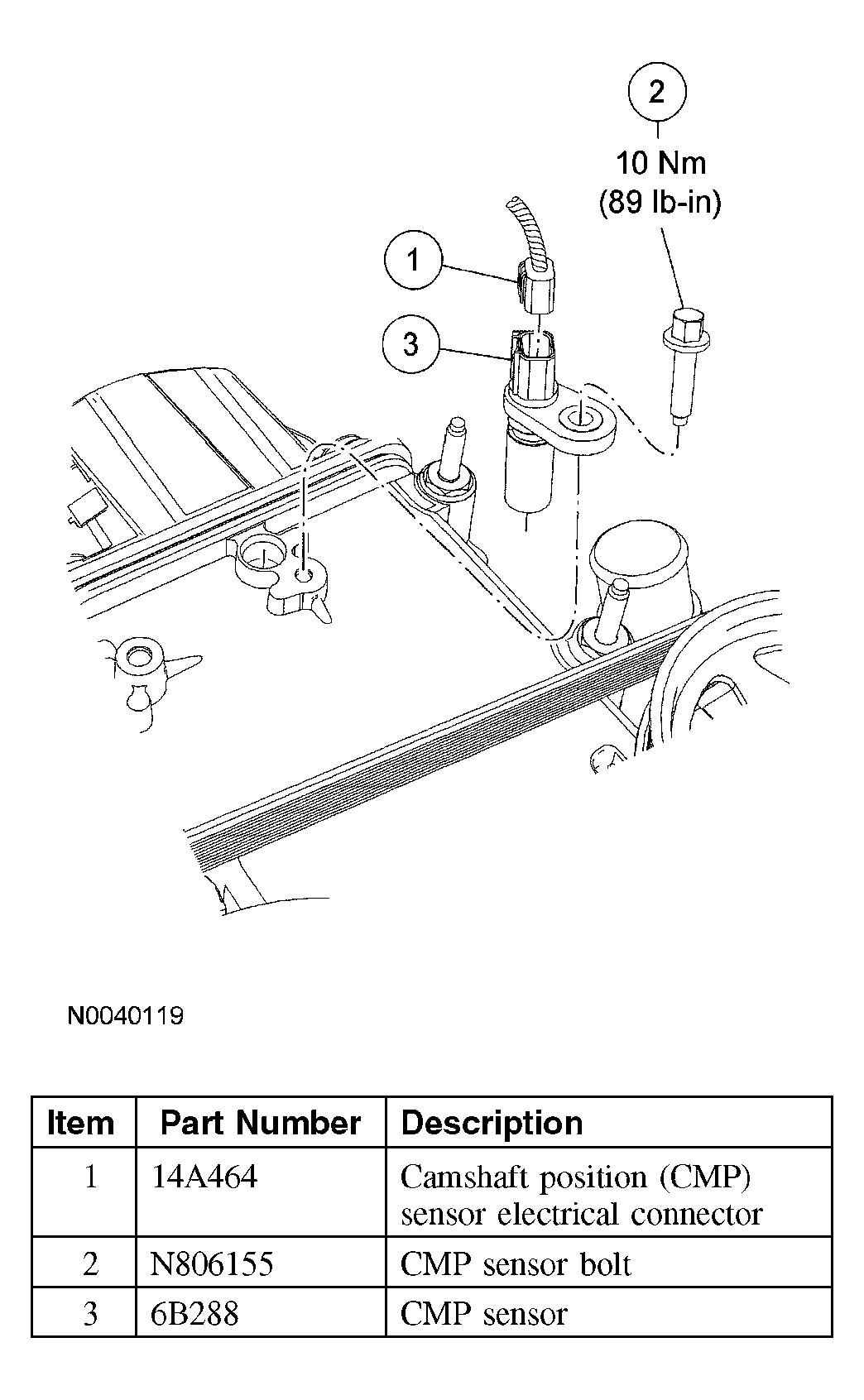

Fig 1: Removing/Installing Camshaft Position (CMP) Sensor
G04584153Courtesy of FORD MOTOR CO.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the camshaft position (CMP) sensor electrical connector.
  3. Remove the CMP bolt.
    • To install, tighten to 10 Nm (89 lb-in).
  4. Remove the CMP sensor.
  5. To install, reverse the removal procedure.
