Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Press the clips inward and open the relay junction box.

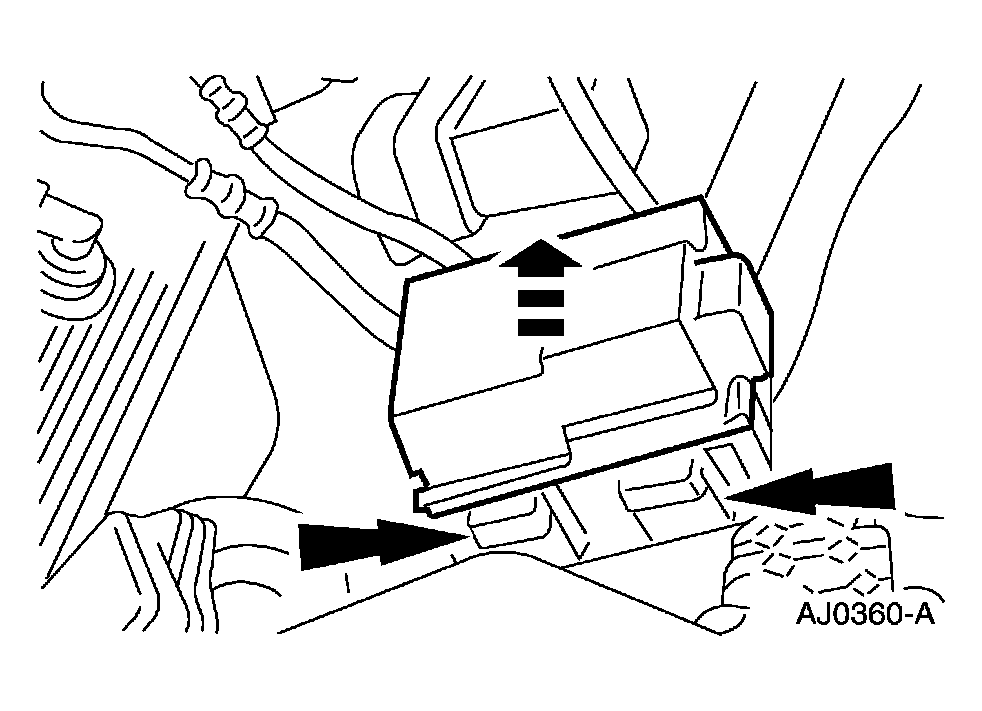

    Fig 1: Pressing Clips Inward And Open Relay Junction Box
    G04584129Courtesy of FORD MOTOR CO.
  3. Remove the ISO starter relay.
  4. To install, reverse the removal procedure.
