Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Clean sealing surfaces with metal surface prep. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer, failure to follow this procedure can cause future oil leakage.
  1. Clean and inspect the mating surface.
    2. NOTE: The rear crankshaft seal retainer plate does not have a sealant groove. Gasket maker must be applied to the rear crankshaft seal retainer mating surface on the engine block.

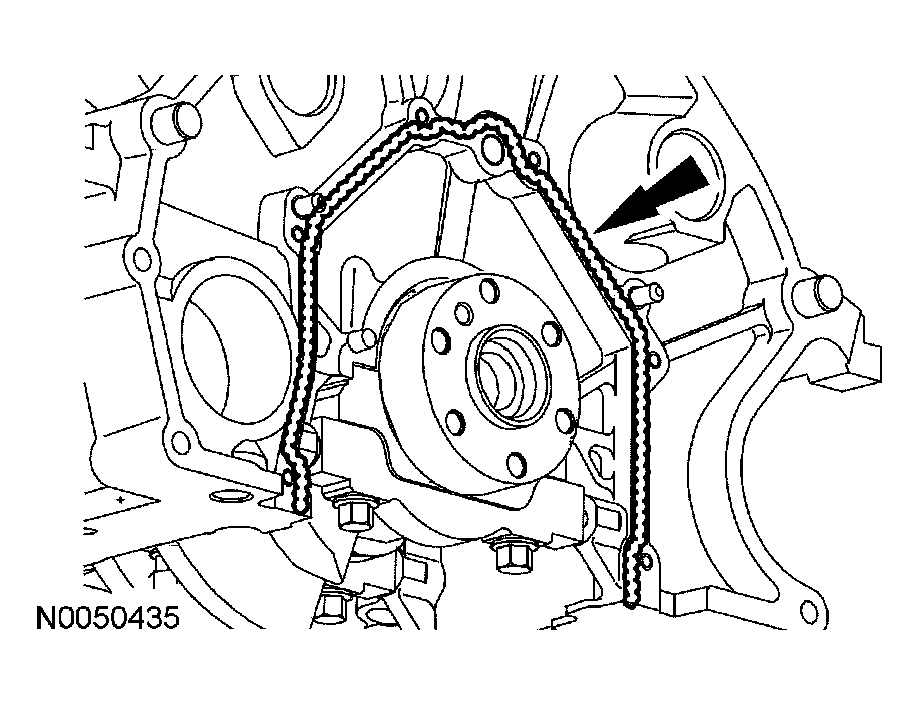

    Fig 1: Applying Bead Of Gasket Maker
    G04583562Courtesy of FORD MOTOR CO.
  2. Apply a bead of gasket maker to the rear crankshaft seal retainer mating surface on the engine block.
  3. Install the rear oil seal retainer plate and loosely install the 6 crankcase rear seal retainer plate bolts.
  4. Tighten the rear seal retainer plate bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Tightening Sequence Of Crankshaft Rear Seal Retainer Plate Bolts
      G04583881Courtesy of FORD MOTOR CO.
    5. NOTE: Lubricate the inner lip of the crankshaft rear seal with engine oil.
    Fig 3: Using Special Tools To Install New Crankshaft Rear Seal
    G04583928Courtesy of FORD MOTOR CO.
  5. Use the special tools to install the crankshaft rear seal.
  6. Use the special tools to install the crankshaft oil slinger.
    Fig 4: Installing Crankshaft Rear Oil Slinger Using Special Tools
    G03920154Courtesy of FORD MOTOR CO.
    7. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
  7. Inspect the oil pan. Clean the mating surface for the oil pan with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
  8. Position the oil pump screen and pickup tube in the oil pan and position the oil pan and new gasket into the vehicle.
    9. CAUTION: Make sure to install a new O-ring seal. A missing or damaged O-ring seal can cause foam in the lubrication system, low oil pressure and severe engine damage.
    NOTE: Clean and inspect the mating surfaces and install a new O-ring seal. Lubricate the O-ring seal with clean engine oil prior to installation.
  9. Position the oil pump screen and pickup tube and install the bolts.
    • Tighten the oil pump screen and pickup tube-to-oil pump bolts to 10 Nm (89 lb-in).
    • Tighten the oil pump screen and pickup tube-to-spacer bolt to 25 Nm (18 lb-ft).
    10. NOTE: If the oil pan is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can result in future oil leakage.
    Fig 5: Area For Applying Bead Of Silicone Gasket And Sealant
    G04583522Courtesy of FORD MOTOR CO.
  10. Apply silicone gasket and sealant at the rear seal retainer-to-cylinder block sealing surface.
    11. NOTE: If the oil pan is not secure within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can result in future oil leakage.

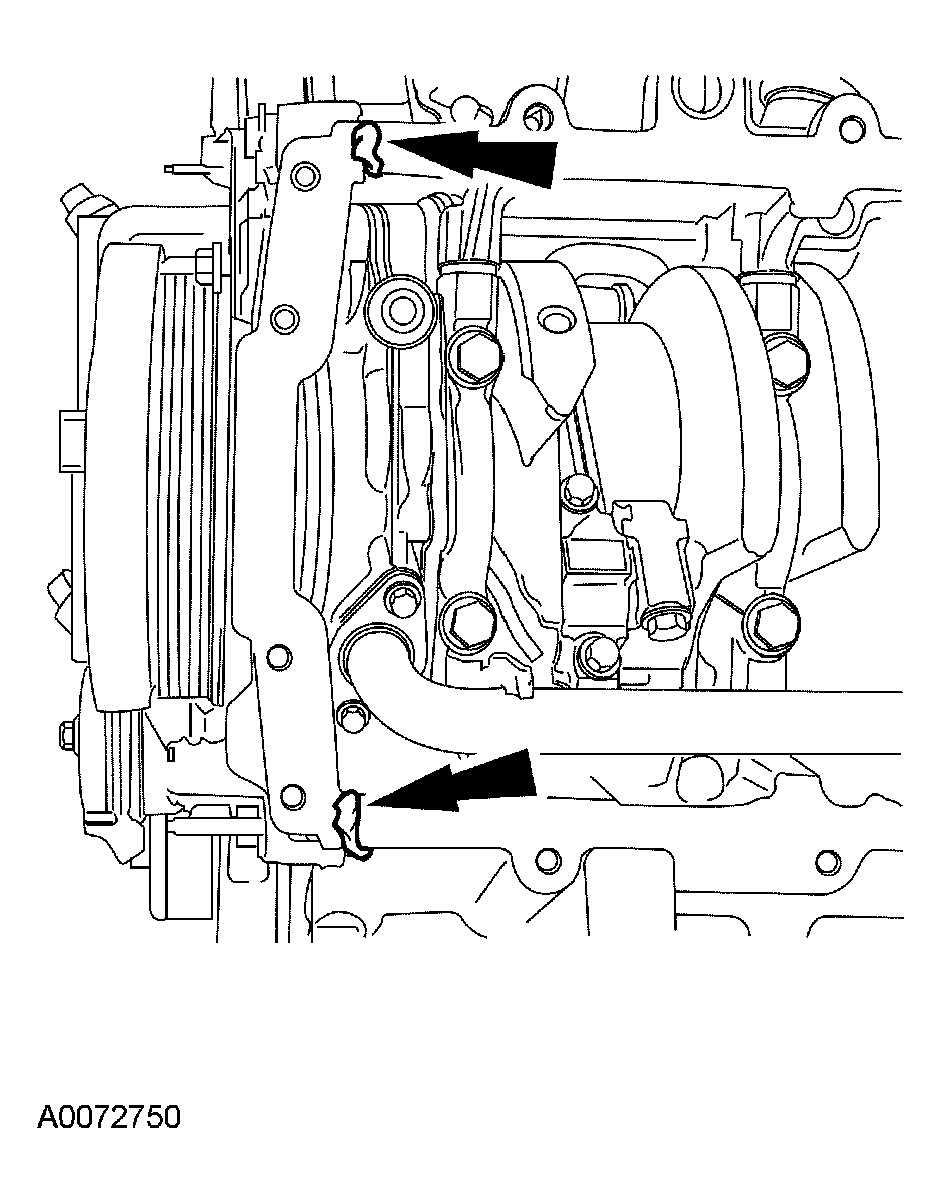

    Fig 6: Applying Silicone Gasket And Sealant At Engine Front Cover-To-Cylinder Block Mating Surface
    G04583567Courtesy of FORD MOTOR CO.
  11. Apply silicone gasket and sealant at the engine front cover-to-cylinder block mating surface.
  12. Install the oil pan bolts, tighten in the sequence shown, in 2 stages.
    • Stage 1: Tighten to 20 Nm (15 lb-ft).
    • Stage 2: Rotate an additional 60 degrees.

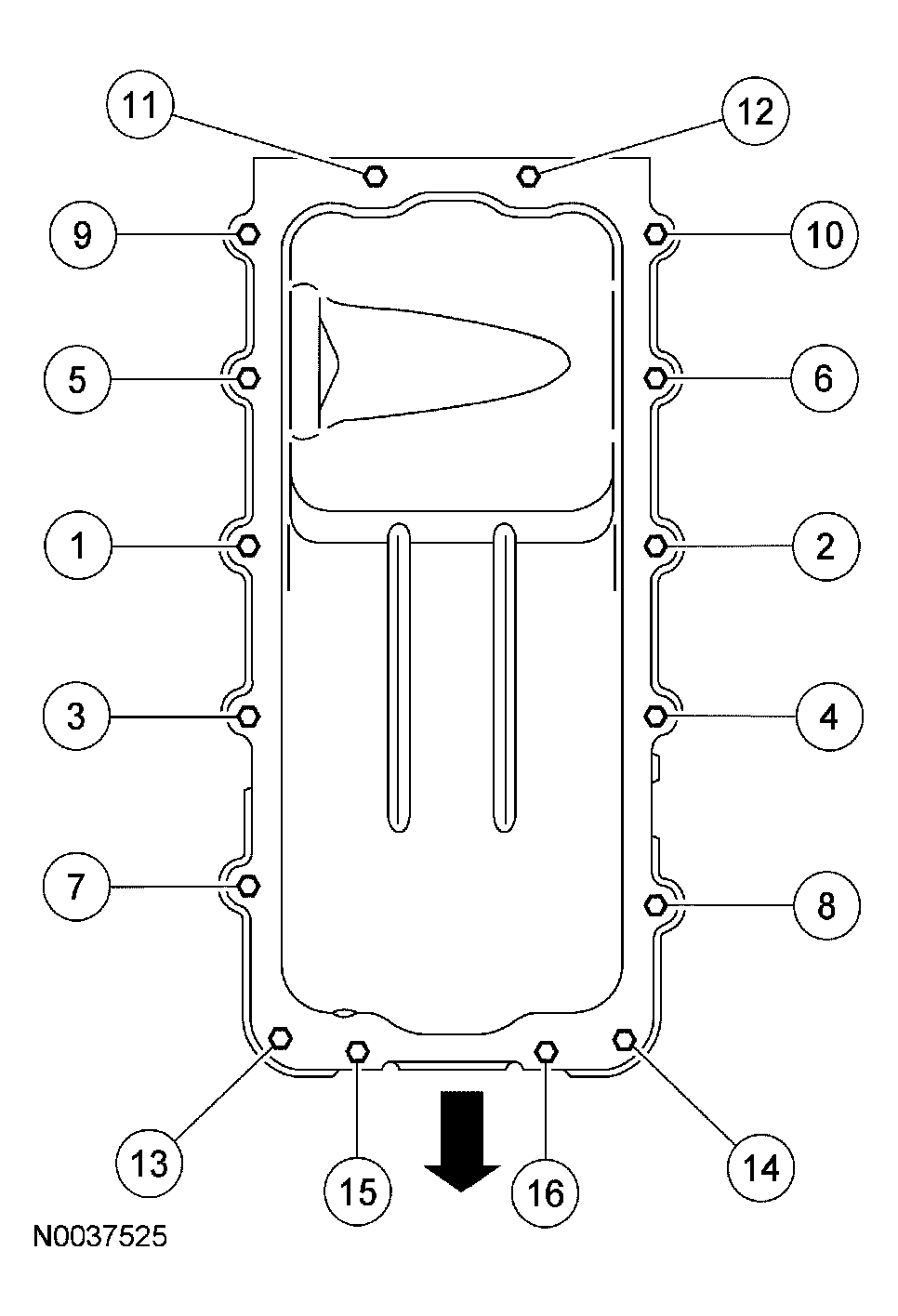

      Fig 7: Tightening Bolts In Sequence
      G04583568Courtesy of FORD MOTOR CO.
  13. Attach the 2 pin-type wire harness retainers.
  14. Align the engine mount studs and lower the engine.
    15. NOTE: LH shown, RH similar.
  15. Install the 2 engine mount nuts.
    • Tighten to 90 Nm (66 lb-ft).

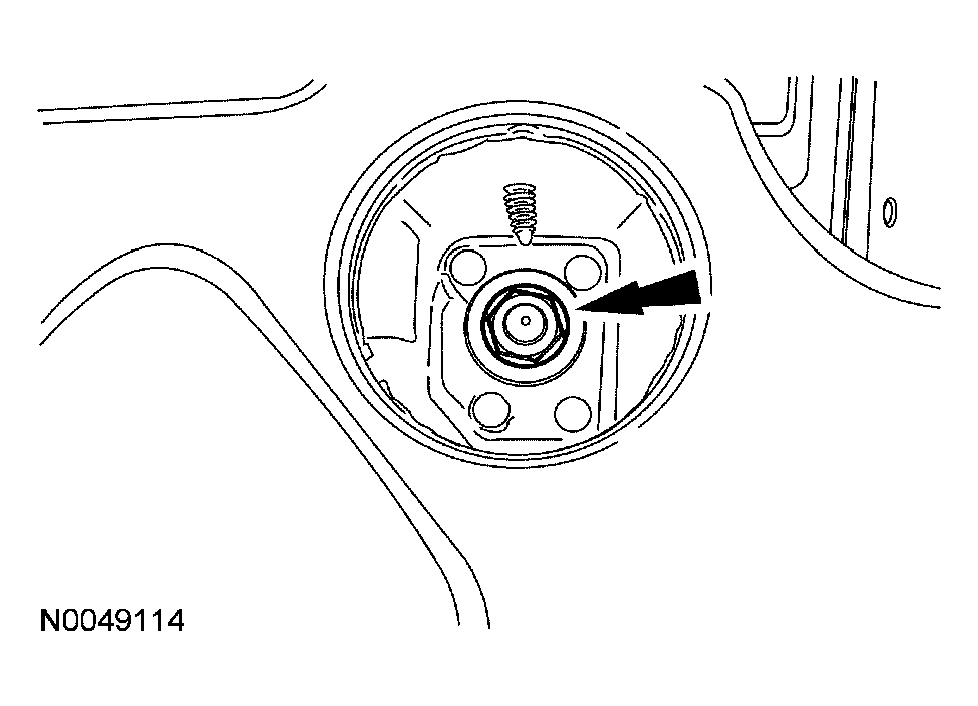

      Fig 8: Installing Engine Mount Nuts
      G04583569Courtesy of FORD MOTOR CO.
  16. Install the engine-to-transmission spacer plate.

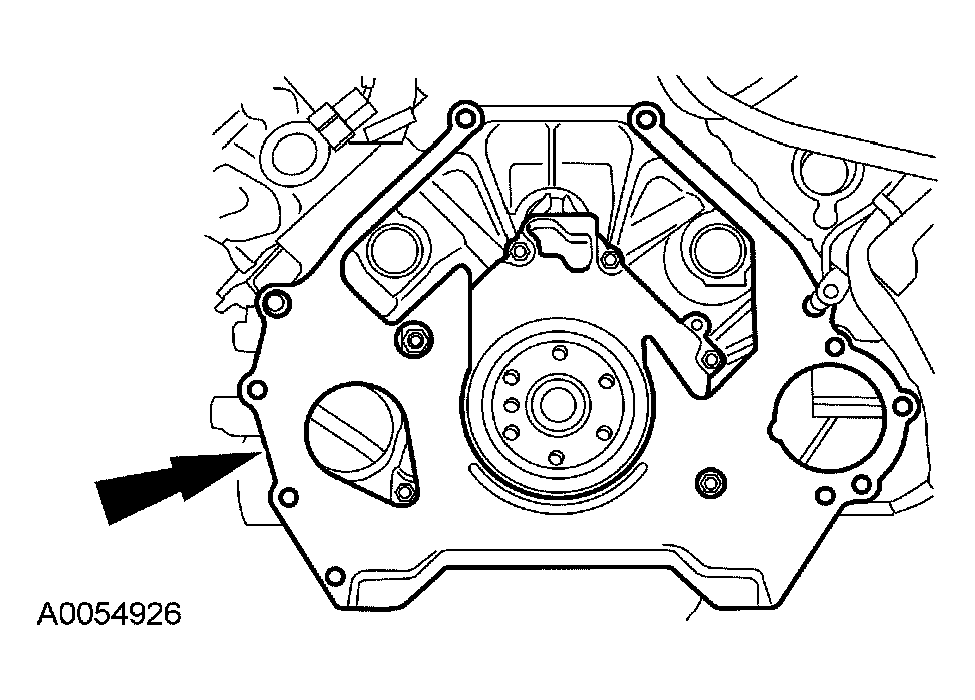

    Fig 9: Installing Engine/Transmission Spacer Plate
    G04583570Courtesy of FORD MOTOR CO.
  17. Install the flexplate. For additional information, refer to FLEXPLATE .
  18. Fill the engine with clean engine oil.
  19. Start the engine and check for leaks.
    20. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  20. If equipped with fire suppression system, repower the system.
