Drive Shaft Slip Yoke: Assembly

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the small drive shaft slip yoke boot clamp on the splined stub shaft. See Fig 1 . Position the end of the drive shaft slip yoke boot with the smaller diameter opening on the splined stub shaft and slide the boot on the shaft as far as it will travel.
    2. NOTE: Align the index marks made during disassembly.
  2. Using the Keystone Clamp Installer (211-002, T63P-9171-A), crimp the small drive shaft slip yoke boot clamp. See Figure . Install the drive shaft slip yoke. Lubricate the stub shaft splines with approximately 0.24 oz. of Premium Long-Life Grease (XG-1-C), and pull the drive shaft slip yoke boot towards the drive shaft.
  3. Position the large drive shaft slip yoke boot clamp. Align the blind splines and install the drive shaft slip yoke. See Figure . Remove any excess grease from the drive shaft slip yoke surfaces. Position the drive shaft slip yoke boot in the drive shaft slip yoke boot groove.
  4. Set the drive shaft assembled length to specification. Measure from the drive shaft weld to "U" joint centerline. See Figure . Set the assembled length to specification by moving the drive shaft slip yoke inward or outward as necessary.
  5. Bleed air from the drive shaft slip yoke boot. See Figure . Using Keystone Clamp Installer (211-002, T63P-9171-A), crimp the large drive shaft slip yoke boot clamp. See Figure . Install the drive shaft.

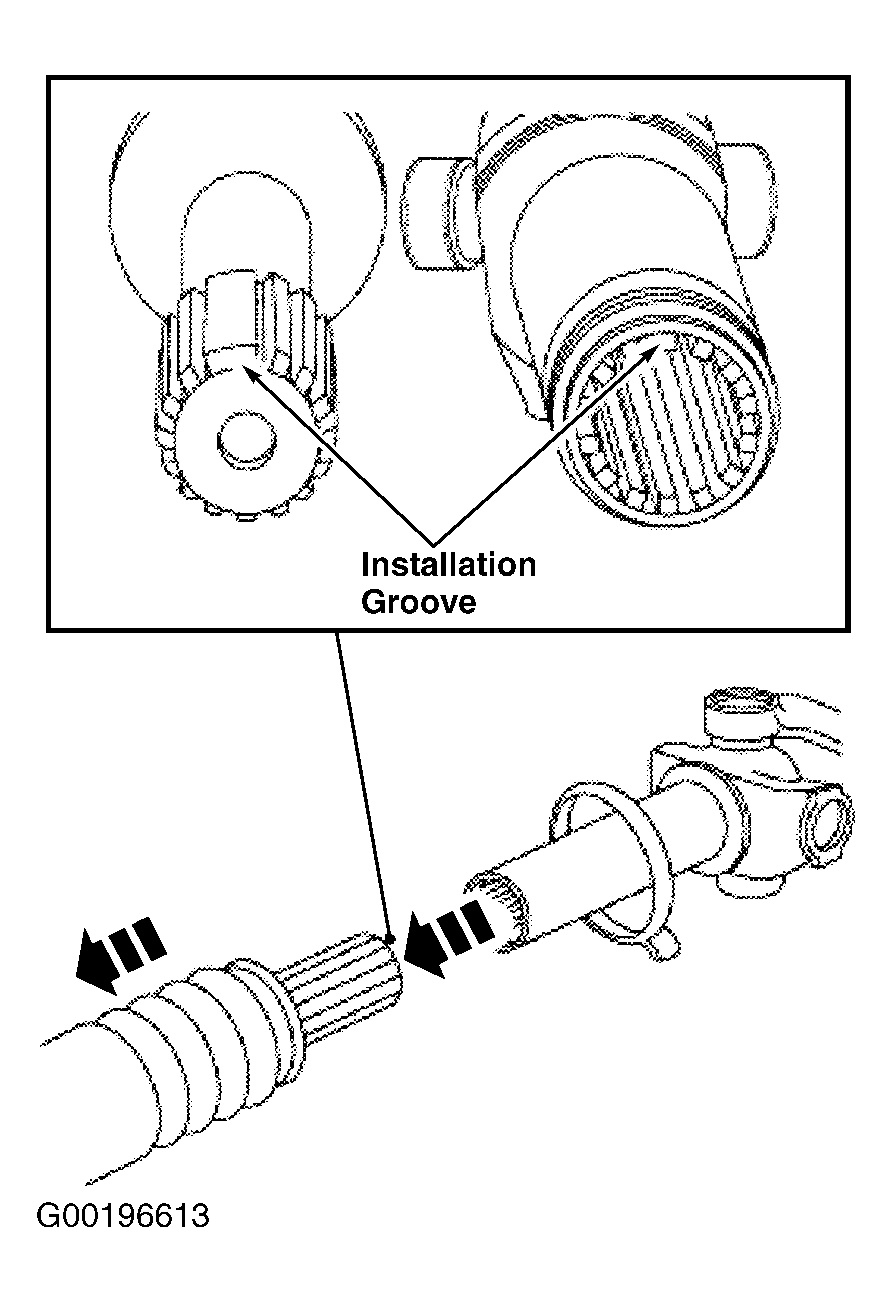

Fig 1: View Of Drive Shaft Boot Clamp
G00196607Courtesy of FORD MOTOR CO.
