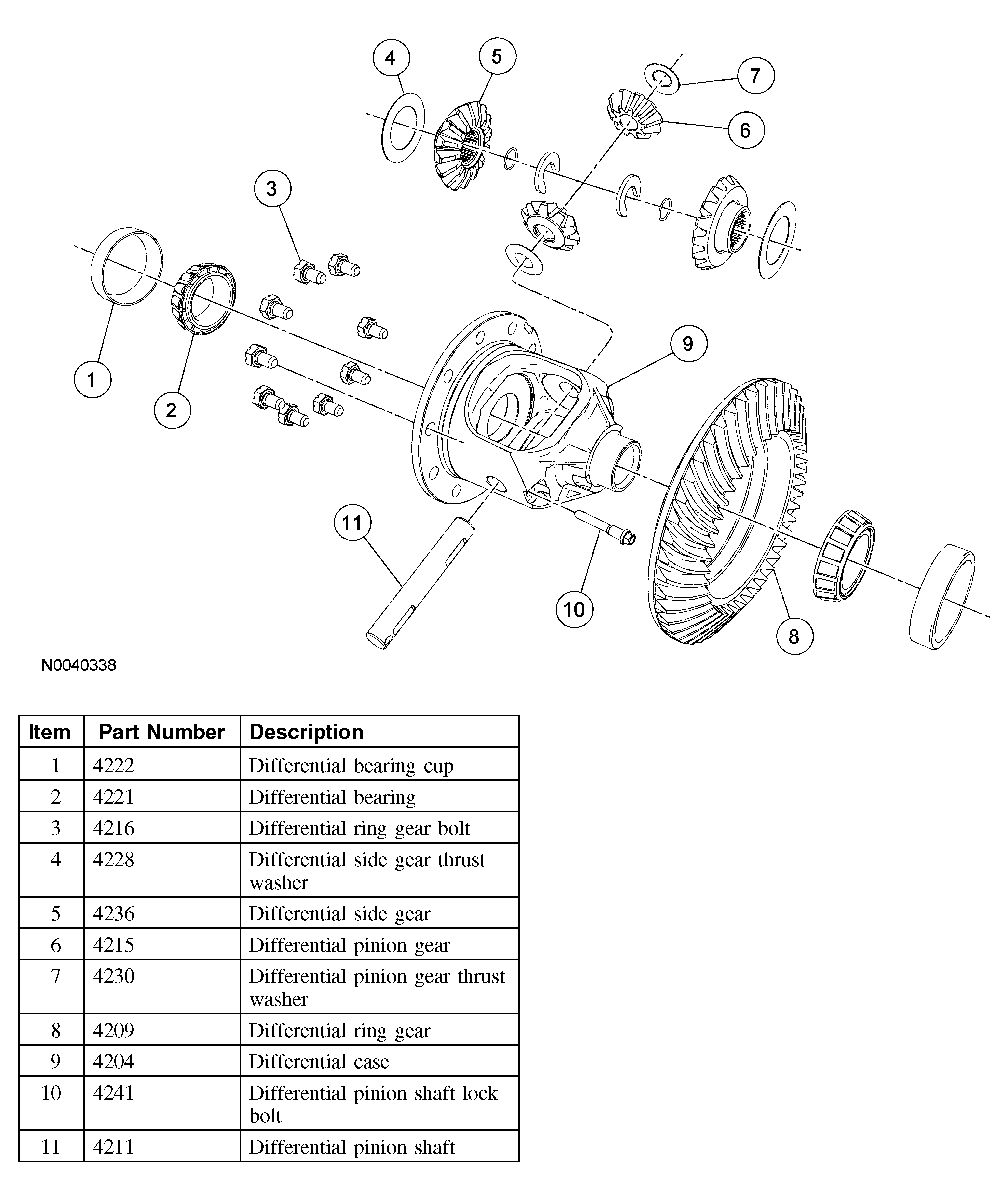

Differential Case and Ring Gear - Conventional: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| 2-Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
|
| Step Plate 205-D016 (D80L-630-5) or equivalent |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) | WSP-M2C197-A |
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant (Police Only) XY-75W140-QL (US); CXY-75W140-1L (Canada) (vehicles with the trailer towing option or 4:10 ratio) (Police, Taxi, Limo) | WSL-M2C192-A |
| Stud and Bearing Mount TA-27 | WSK-M2G349-A1 |
| Threadlock and Sealer TA-25 | WSK-M2G351-A5 |
