Universal Joints
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

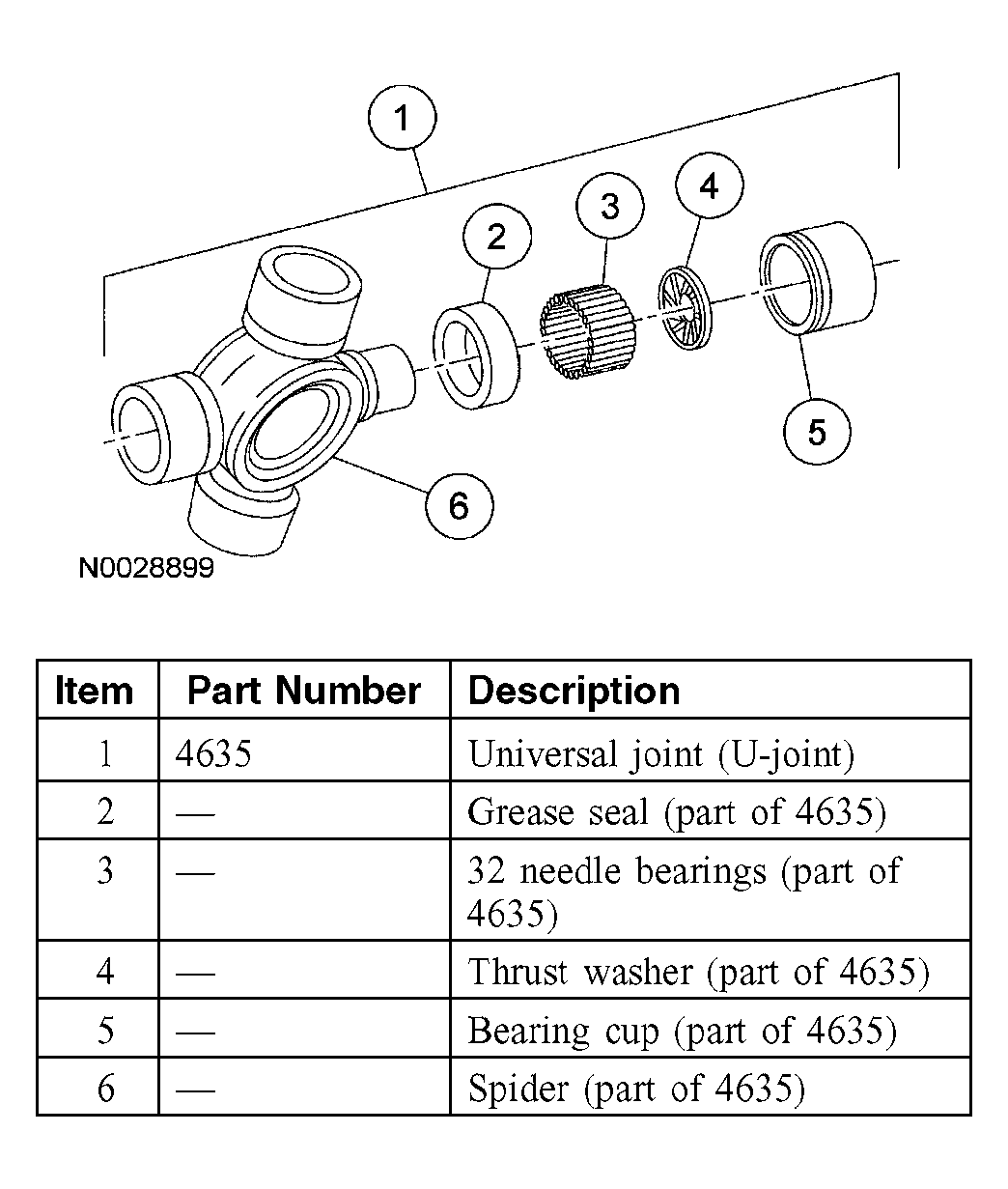

Universal joints have:
- a lubed-for-life design.
- nylon thrust washers, located at each base of the bearing cup, which control end play, position the needle bearings and improve grease movement.
- 1350 series universal joints (standard) with a 92.07 mm (3-5/8 in) span (span measurements are with bearing cups fully seated on the spider) and 30.18 mm (1-3/16 in) bearing cups.
