Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Suspension fasteners are critical parts because they effect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
    WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations. Failure to follow these instructions may result in personal injury.
  1. If equipped, turn the air suspension service switch to the OFF position.
    2. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  3. Remove the wheel bearing and wheel hub. For additional information, refer to WHEEL BEARING AND WHEEL HUB  ..
    4. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.
  4. Remove the nut and detach the tie-rod from the wheel knuckle.
    • To install, tighten to 80 Nm (59 lb-ft).
    5. NOTE: The stabilizer bar links are under pressure when the suspension is in the REBOUND position.
  5. Using a suitable jack stand, raise the suspension arms until the pressure is released from the stabilizer bar links.
    6. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.
  6. Remove and discard the upper stabilizer bar link nut.
    • To install, tighten to 63 Nm (46 lb-ft).
    7. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.
  7. Remove the lower stabilizer link nut and the stabilizer bar link.
    • Discard the nut.
    • To install, tighten to 55 Nm (41 lb-ft).

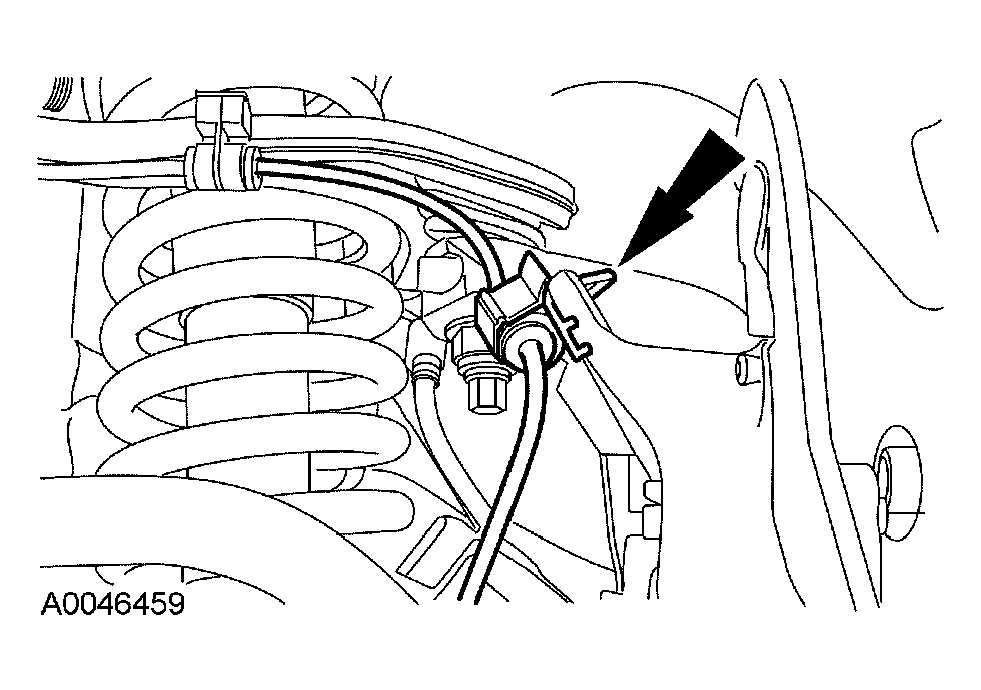

  8. Detach the wheel speed sensor wiring harness retainer from the steering knuckle.
    Fig 1: Detaching Wheel Speed Sensor Wiring Harness Retainer
    G04582713Courtesy of FORD MOTOR CO.
    9. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.
  9. Remove and discard the upper ball joint nut.
    • To install, tighten to 150 Nm (111 lb-ft).
    10. NOTE: Use the holding feature to prevent the stud from turning while removing the nut.
  10. Remove the lower ball joint nut and then remove the wheel knuckle.
    • Discard the nut.
    • To install, tighten to 150 Nm (111 lb-ft).
  11. To install, reverse the removal procedure.
  12. Check and, if necessary, align the front end. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
    13. WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .
  13. If equipped with fire suppression system, repower the system.
