Glossary of Terms: Caster

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

The angle of the steering knuckle in relation to the true vertical as measured looking from the side of the vehicle.

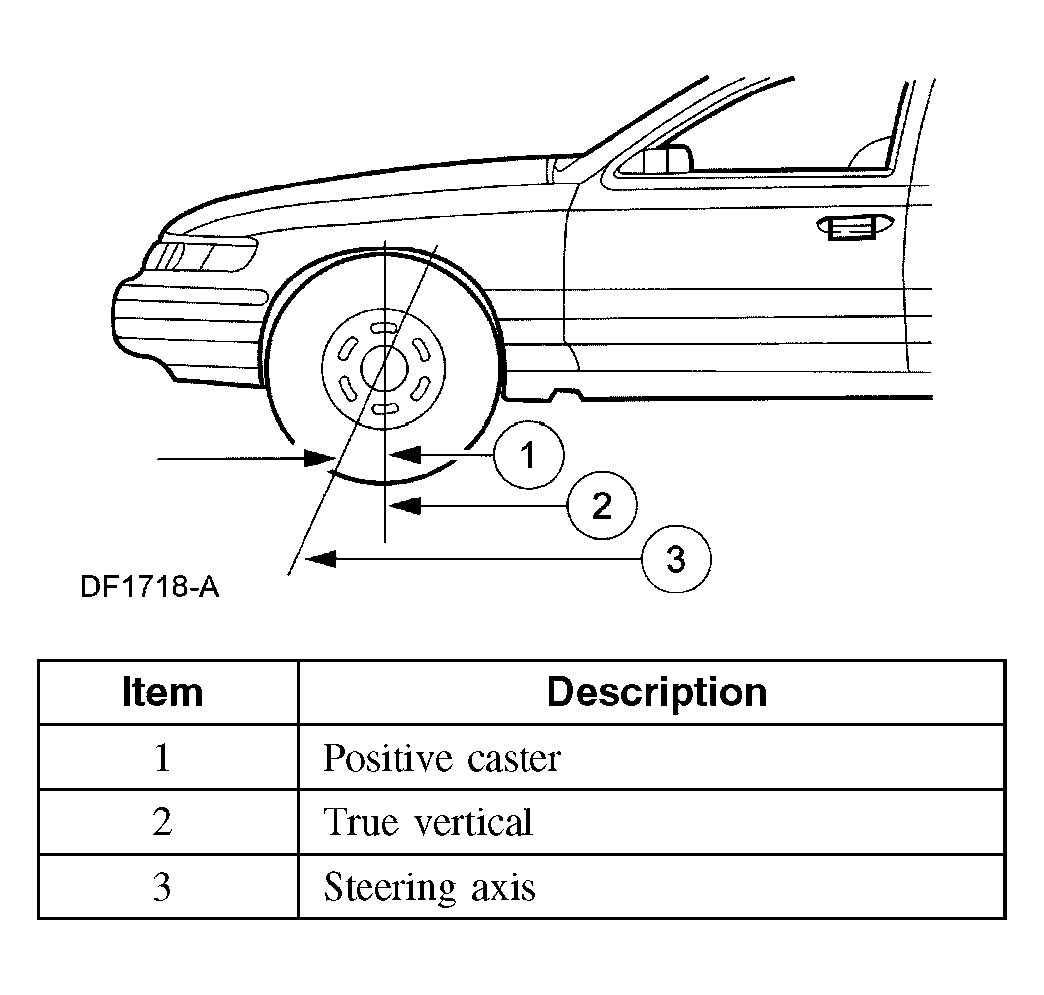

Fig 1: Checking Caster Angle
G04582666Courtesy of FORD MOTOR CO.
