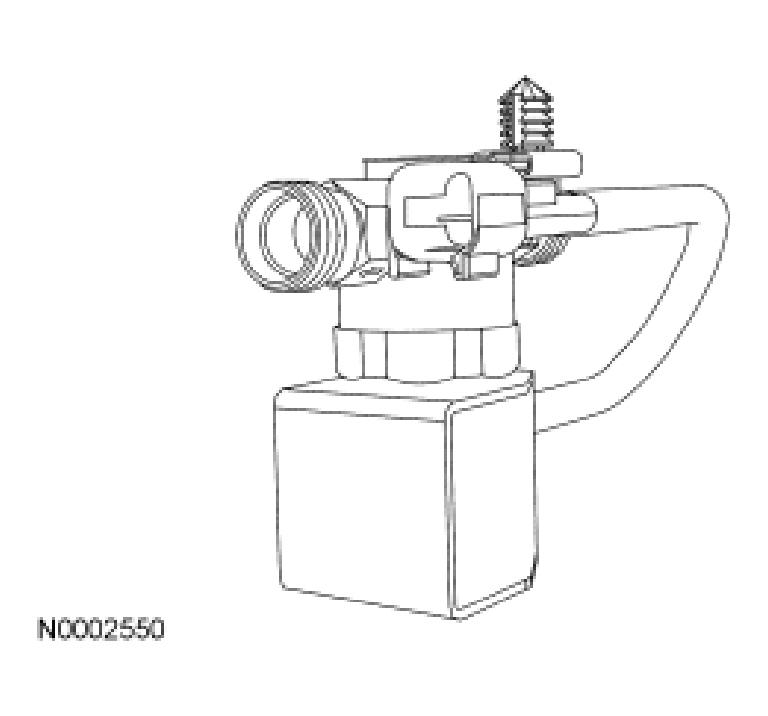

Air Conditioning (A/C) Refrigerant Distribution Valve (ACRDV)
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
The ACRDV is a PCM controlled solenoid which provides a regulated control of refrigerant flow to the passenger compartment loop. The PCM opens or closes the ACRDV based on the passenger compartment A/C request. The ACRDV is a normally closed valve, preventing the refrigerant flow. When the passenger compartment A/C is requested ON, the PCM provides a ground path to the solenoid which opens the ACRDV.
