Engine Cranking Mode
WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

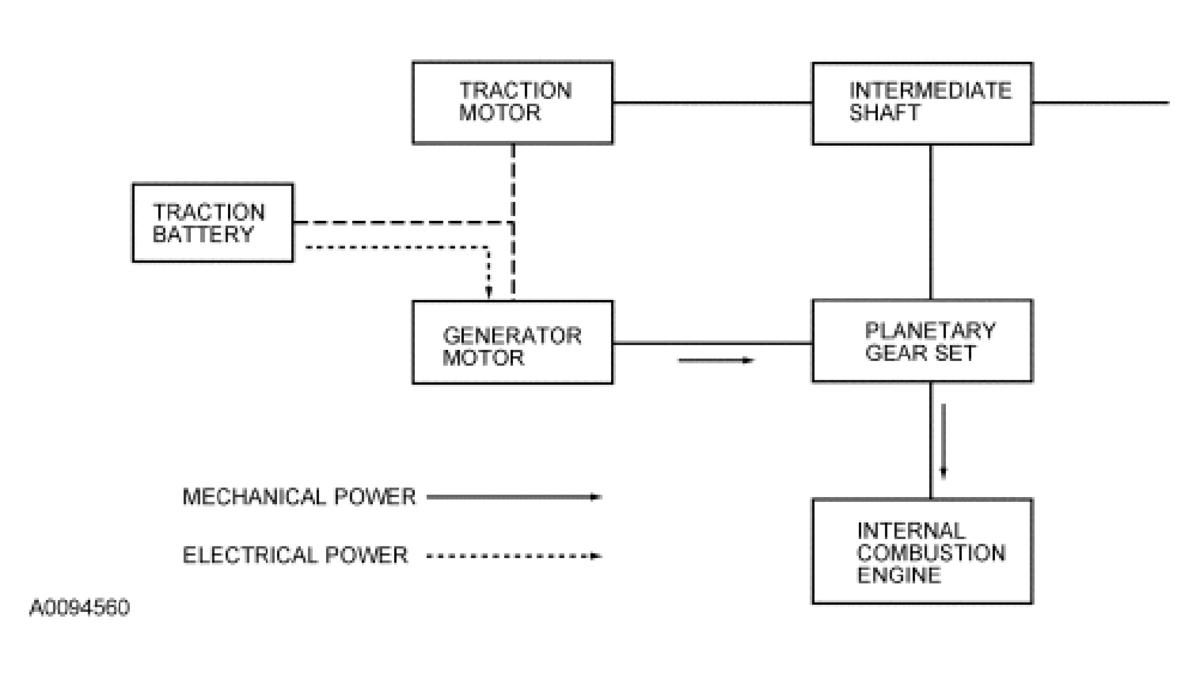

The electronically controlled continuously variable transaxle (CVT) provides the engine cranking function to start or restart the internal combustion engine. When the powertrain control module (PCM) requests the engine cranking mode, the generator motor rapidly accelerates the engine speed up to about 1,000 RPM in about 0.3 seconds. When the engine speed reaches a calibrated speed the PCM commands the delivery of fuel and spark at the appropriate times.
