Fault Detection/Management

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

A BARO signal that is detected out of range high or low causes the powertrain control module (PCM) to ignore the BARO signal and use the manifold absolute pressure (MAP) signal generated at low idle as an indication of the barometric pressure.

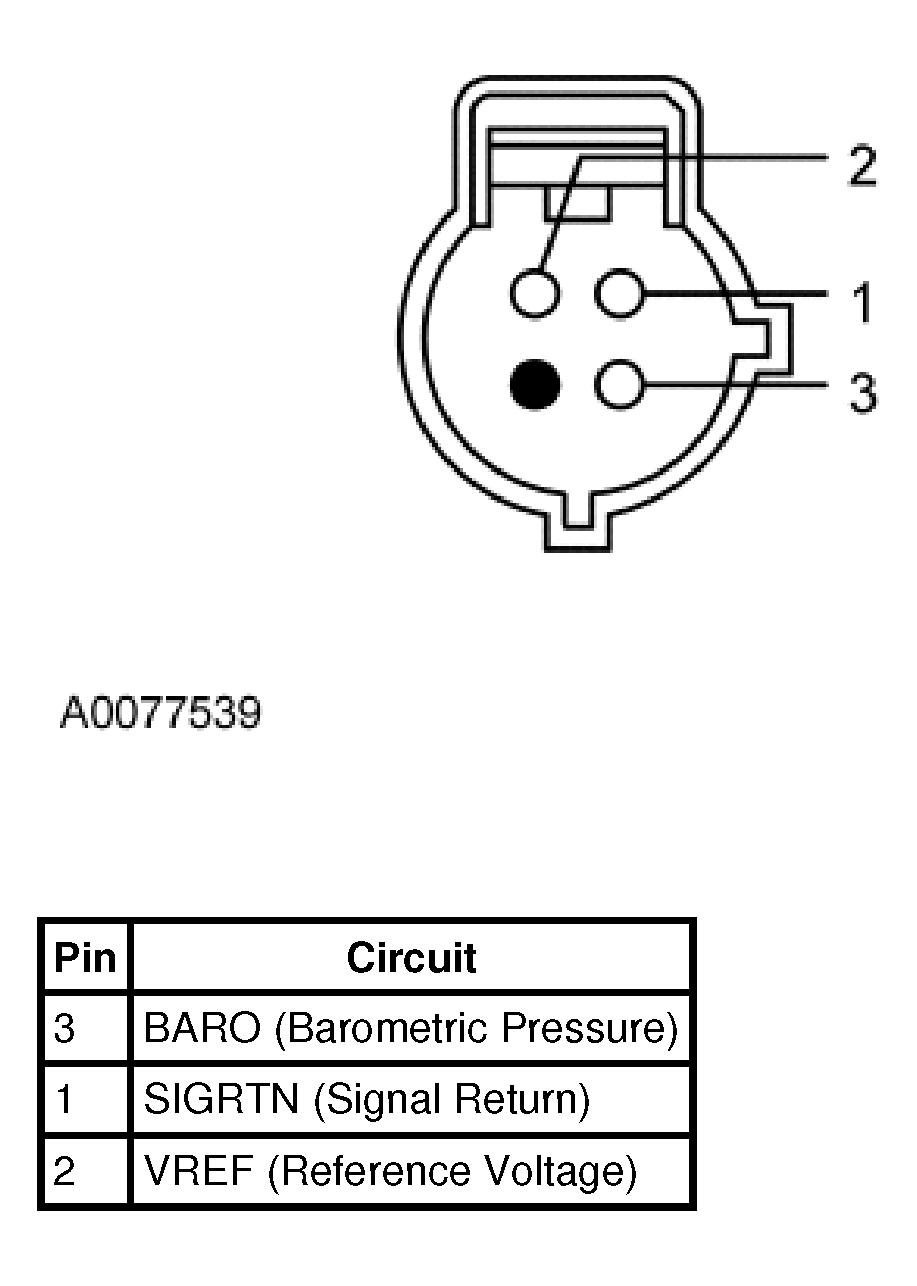

Fig 1: Barometric Pressure (BARO) Connector
G04586978

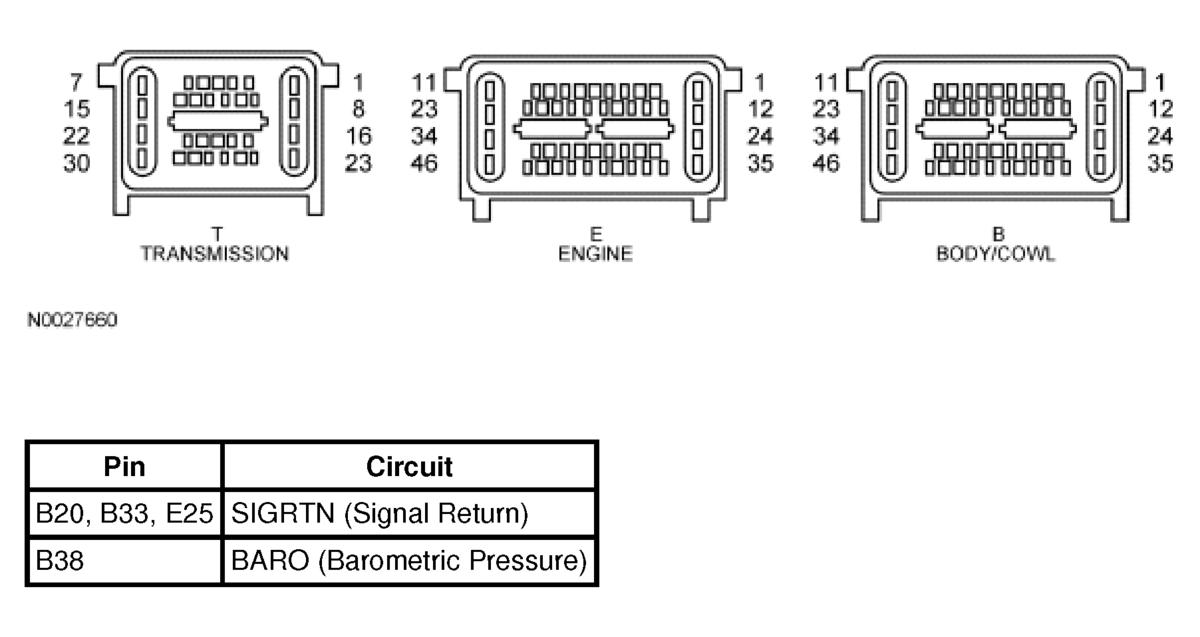

Fig 2: Powertrain Control Module (PCM) Connectors
G04586979
