Fault Detection/Management

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

A MAP signal that is detected by the PCM to be out of range or at an incorrect value for specific conditions causes the PCM to ignore the MAP signal and operate the engine from an inferred boost pressure signal.

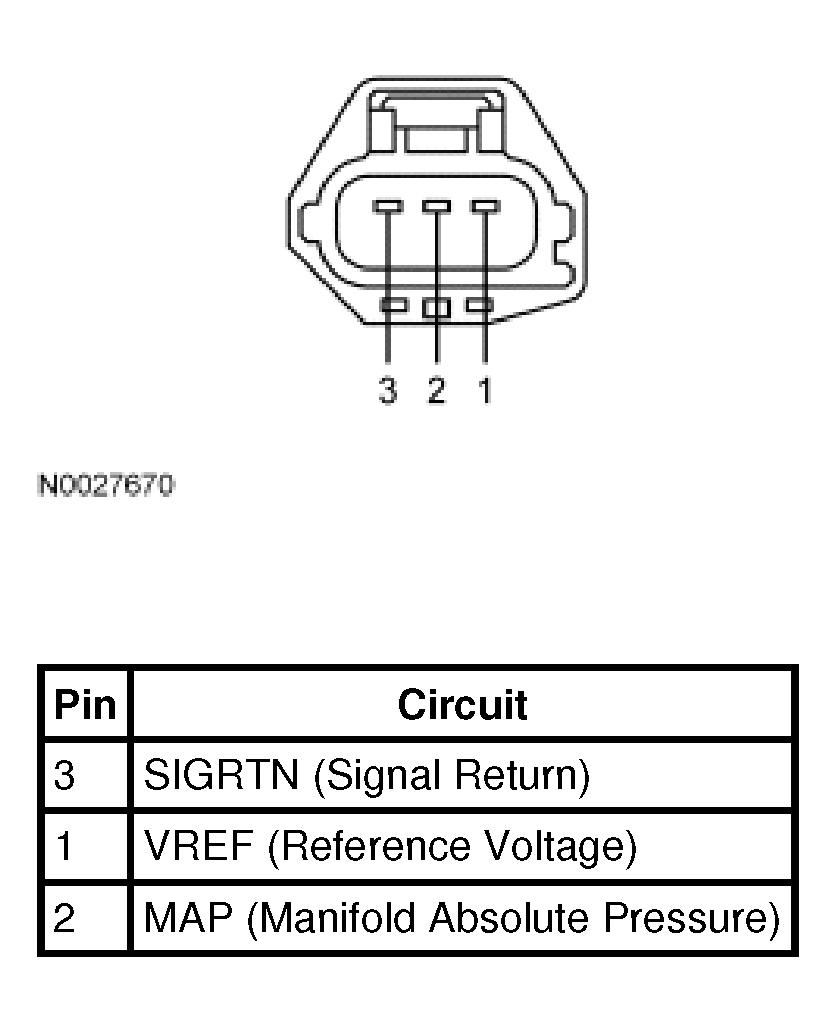

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector
G04586972

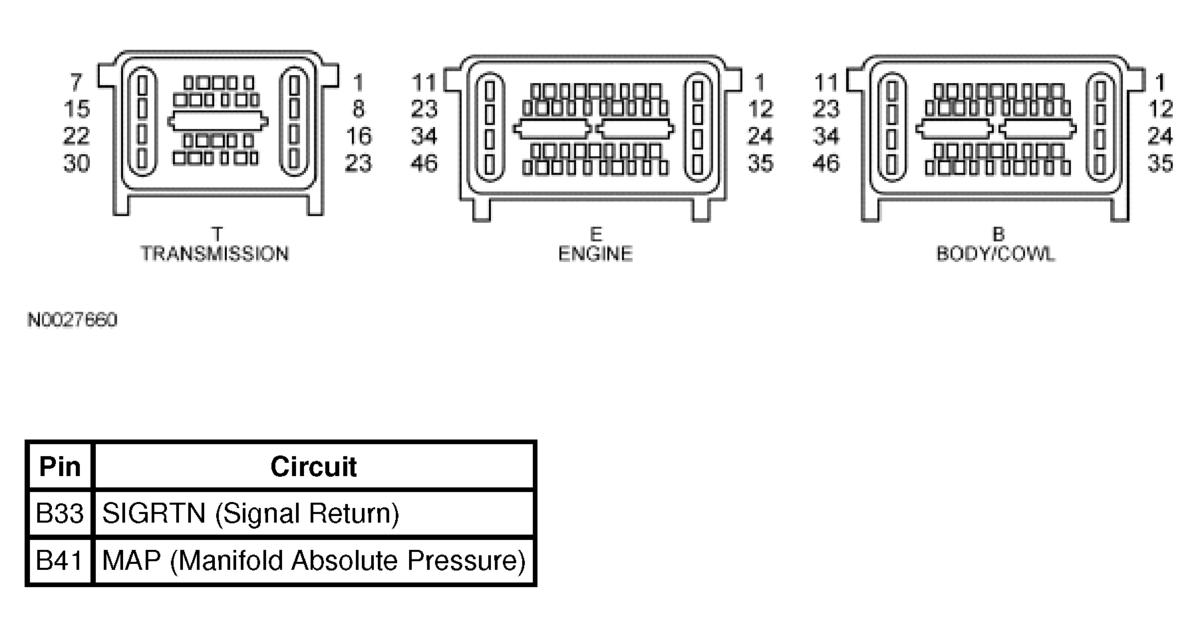

Fig 2: Powertrain Control Module (PCM) Connectors
G04586973
