Pinpoint Test AS: Loss of Communication With The Fuel Injector Control Module (FICM): Introduction: Detection/Management

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

The PCM monitors the communication circuits to the FICM for an open or short circuit.

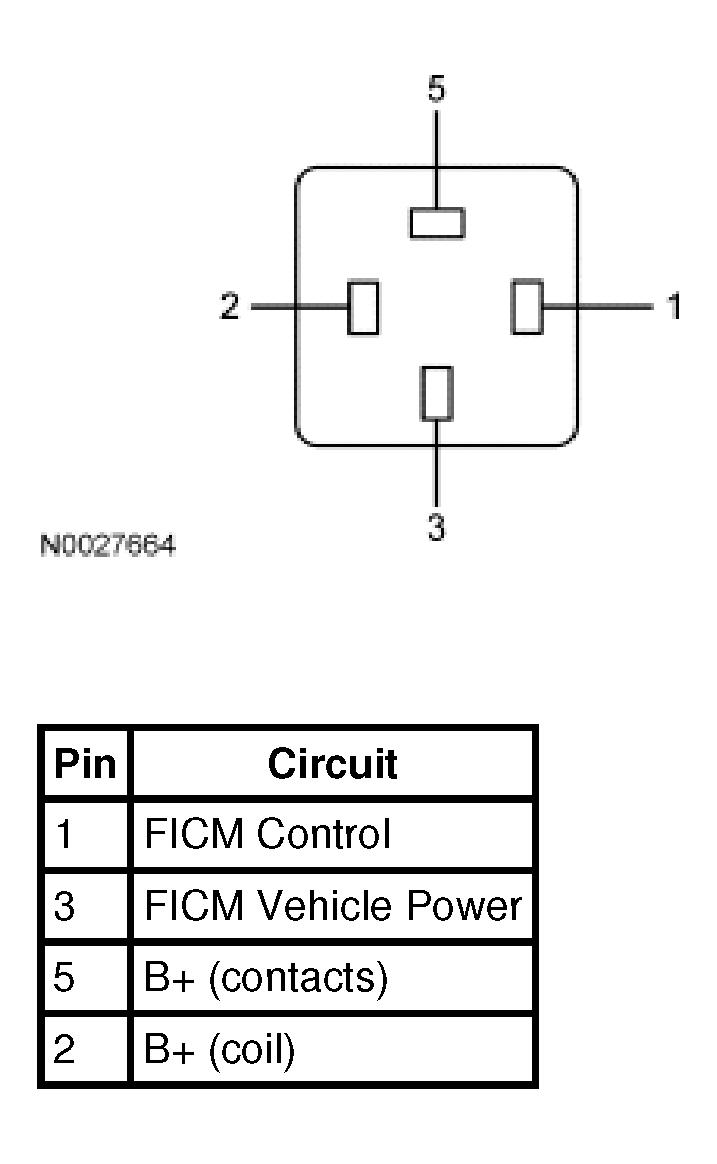

Fig 1: Fuel Injector Control Module (FICM) Relay Connector
G04586949

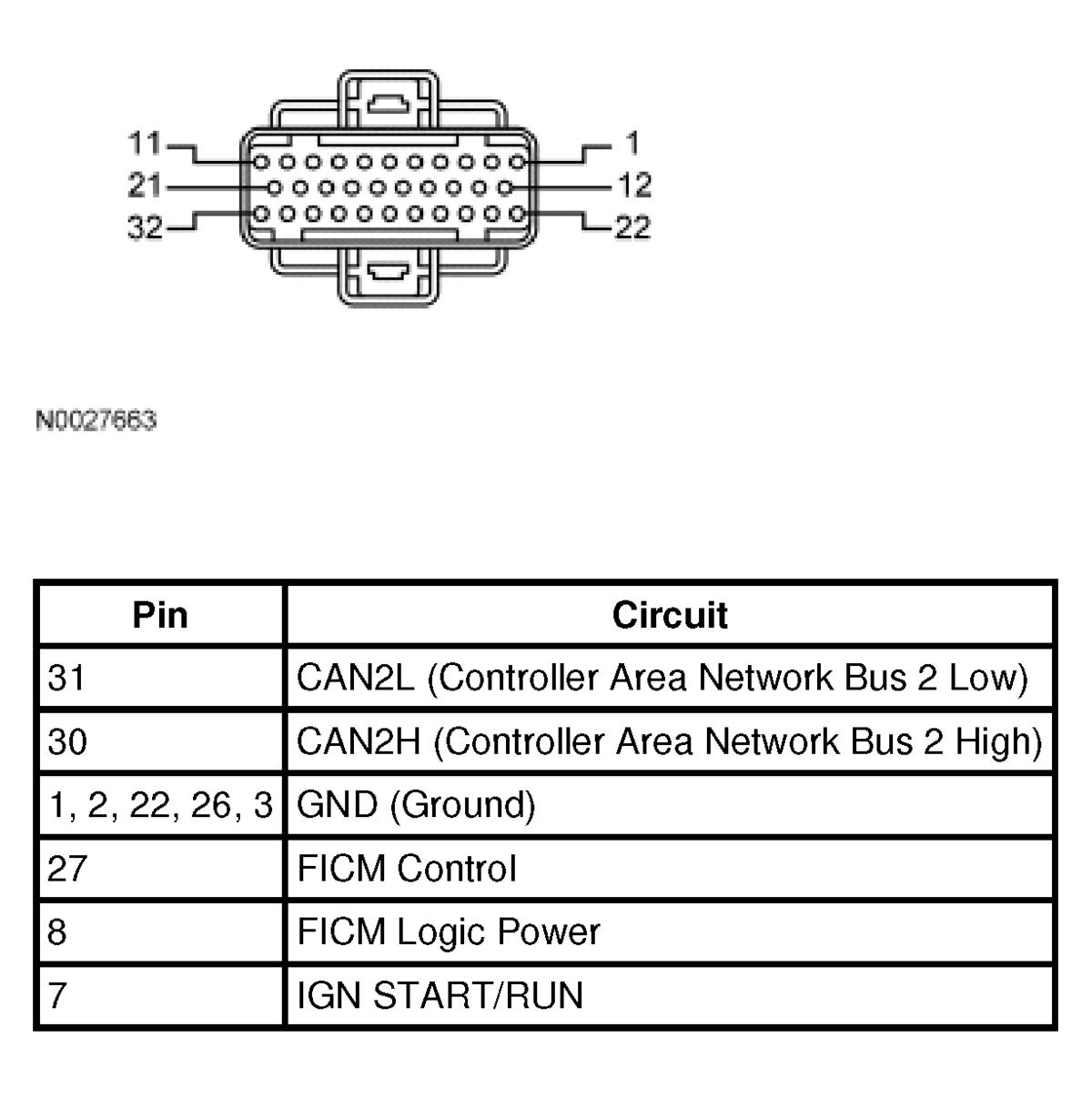

Fig 2: Fuel Injector Control Module-C (FICM-C) Connector
G04586950

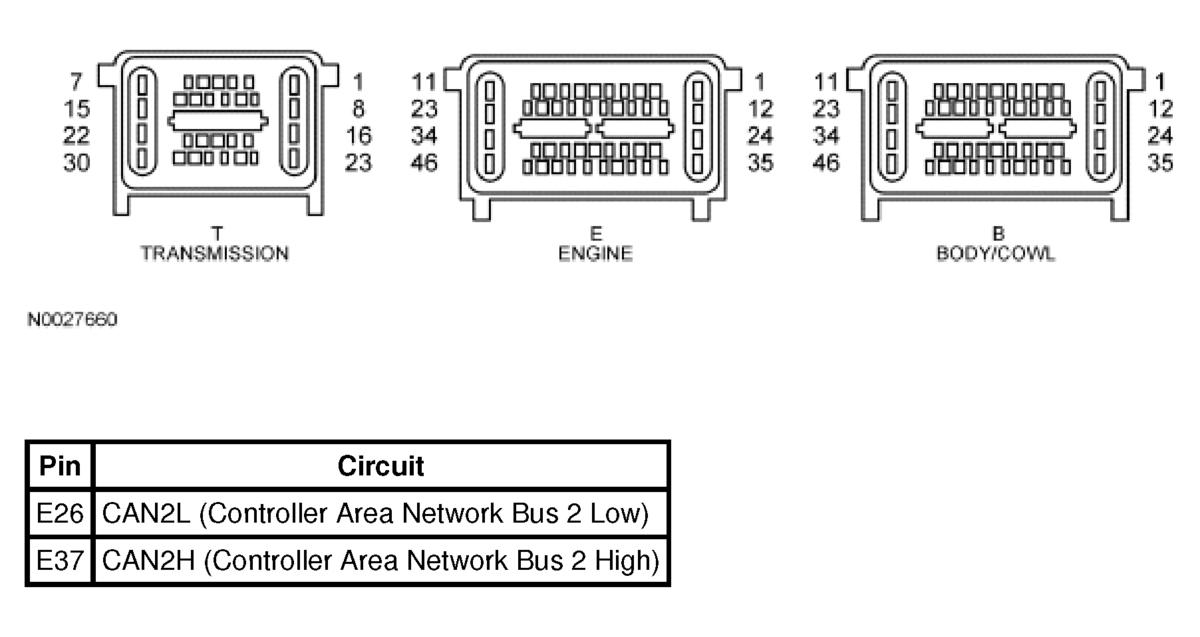

Fig 3: Powertrain Control Module (PCM) Connectors
G04586951
