Signal Function

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

The BPP switch provides a 12-volt input signal to the powertrain control module (PCM) whenever the brake pedal is applied. The BPP switch input is used to deactivate the speed control system and the power takeoff (PTO) system (if equipped).

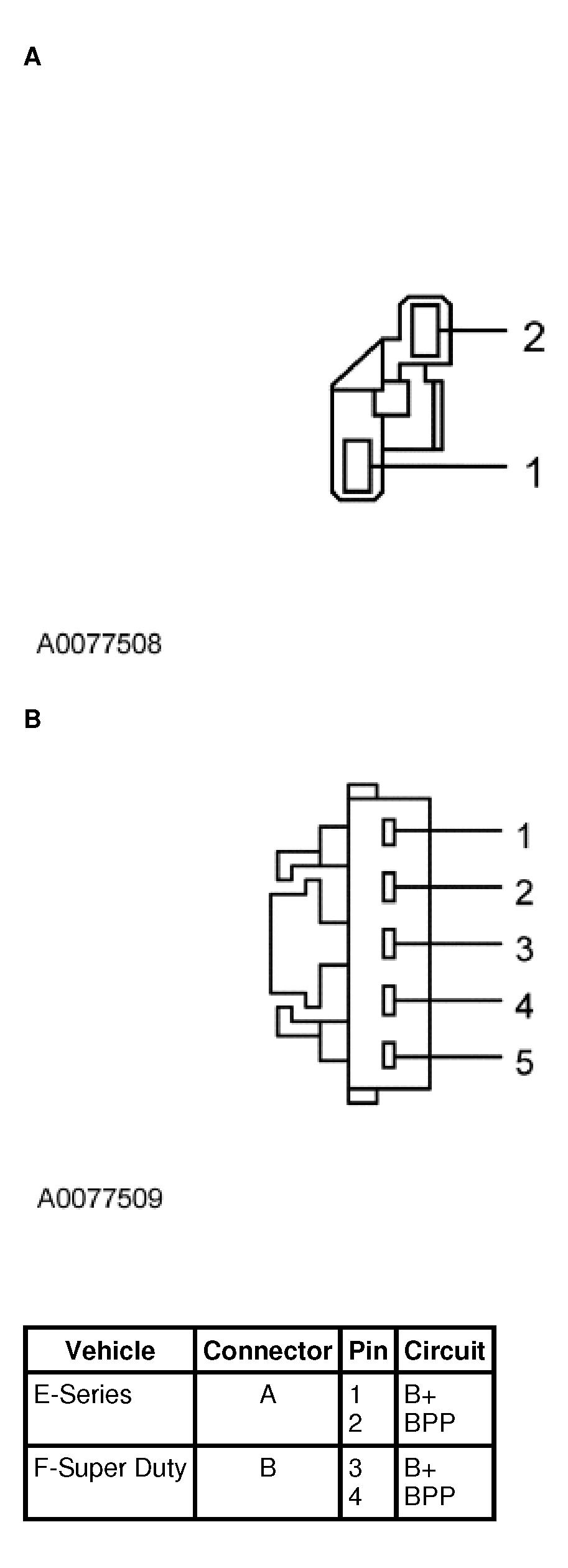

Fig 1: Brake Pedal Position (BPP) Switch Connector
G04586940

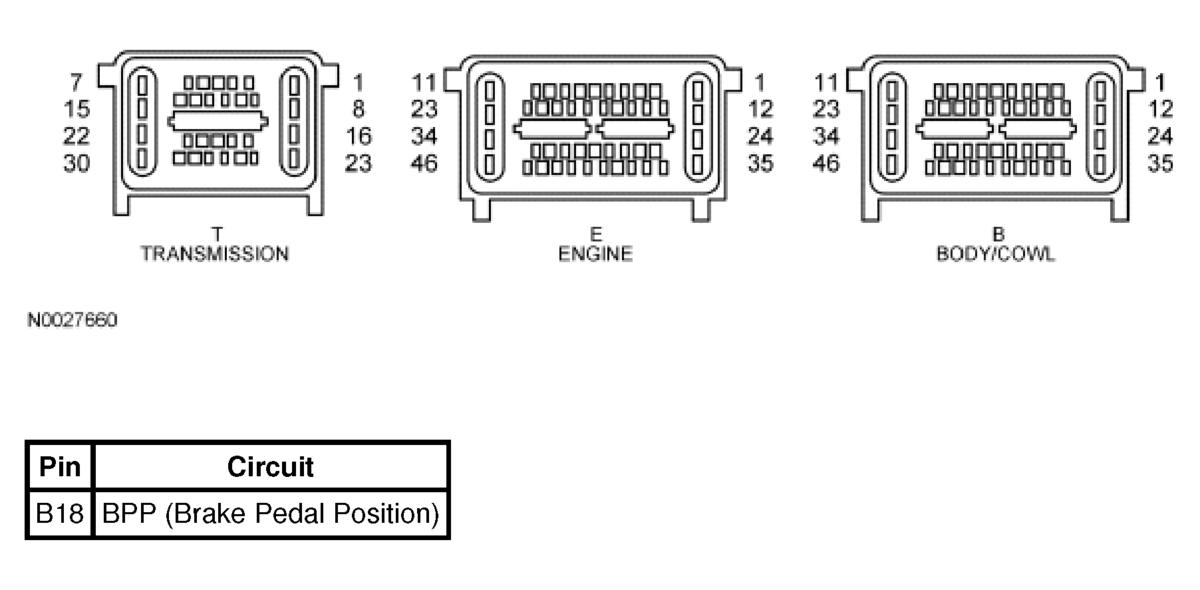

Fig 2: Powertrain Control Module (PCM) Connectors
G04586941
