Fault Detection/Management

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Any detected malfunction of the APP sensor illuminates the electronic throttle control (wrench) indicator. A PCM detected fault on one of the 3 sensor signals will permit normal operation. A fault with 2 sensor signals only allows the engine to operate at idle.

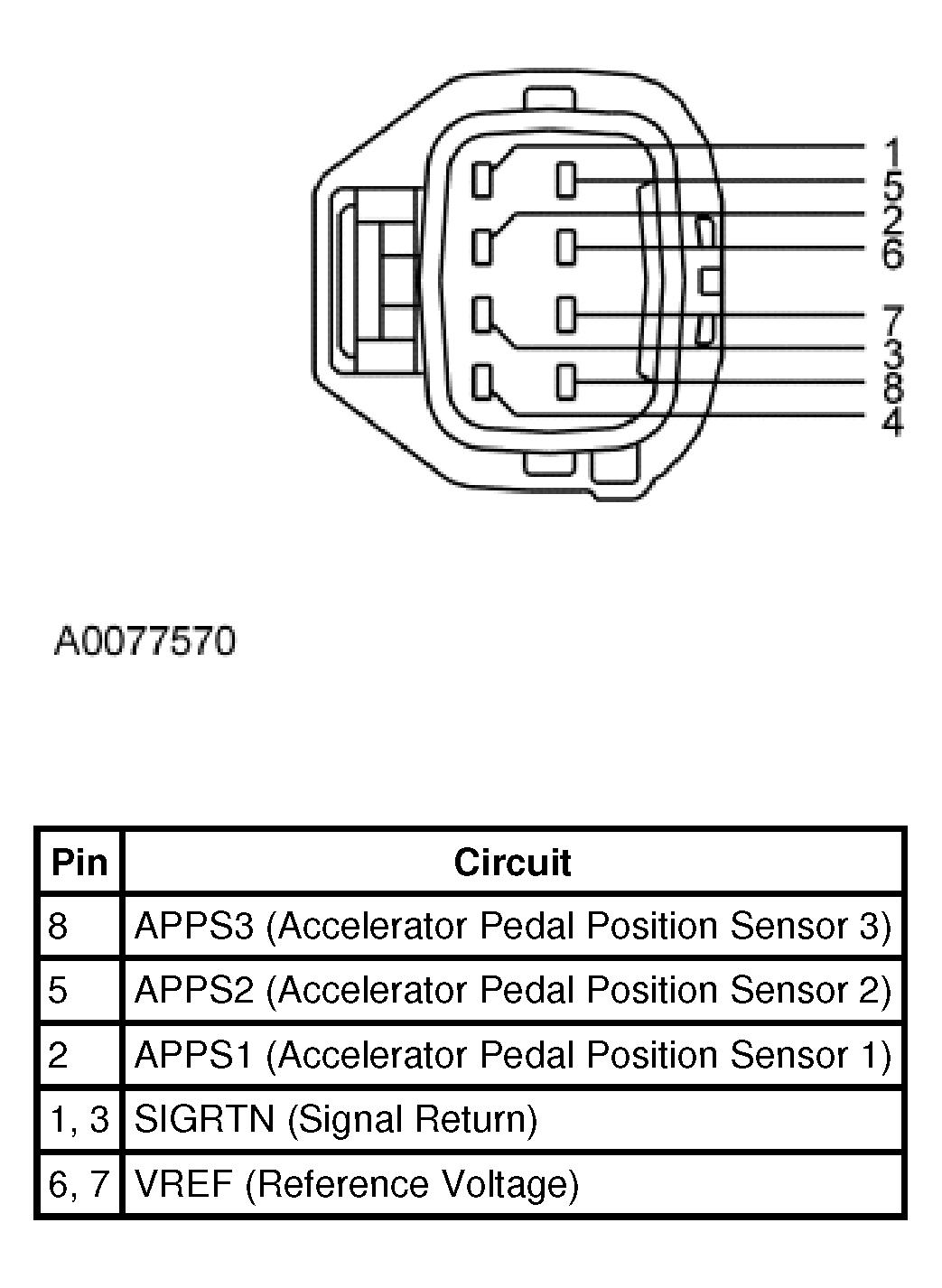

Fig 1: Accelerator Pedal Position (APP) Sensor Connector
G04586936

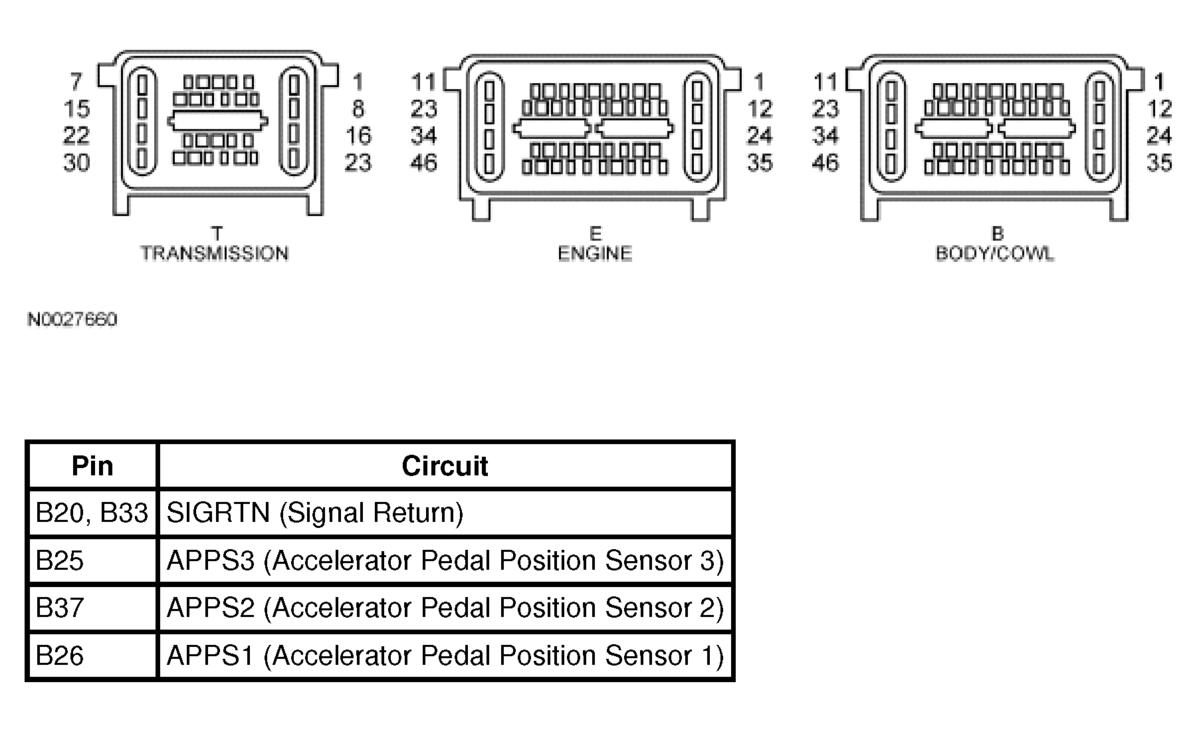

Fig 2: Powertrain Control Module (PCM) Connectors
G04586937
NOTE: Base idle should not be less than 0.5 volt.
