Glow Plug Monitor Self-Test
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
The glow plug monitor self-test is a functional key on, engine running (KOER) self-test of the glow plug system. The PCM activates the GPCM, which monitors the glow plugs. A fault must be present at the time of testing to detect a fault. If the GPCM detects a fault, a message is sent to the PCM through the diagnostic line and then transmitted to the diagnostic tool.
CAUTION:

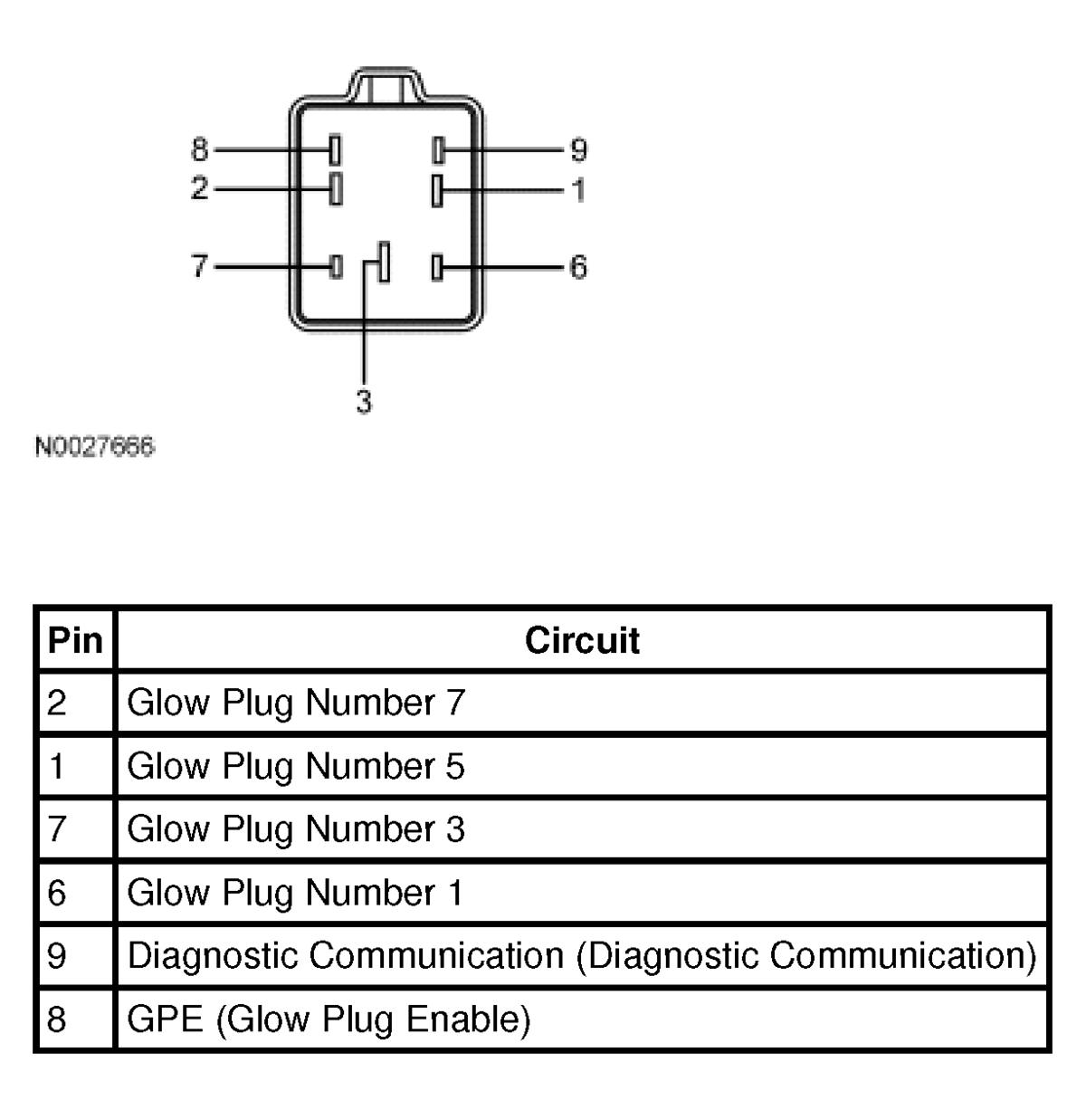

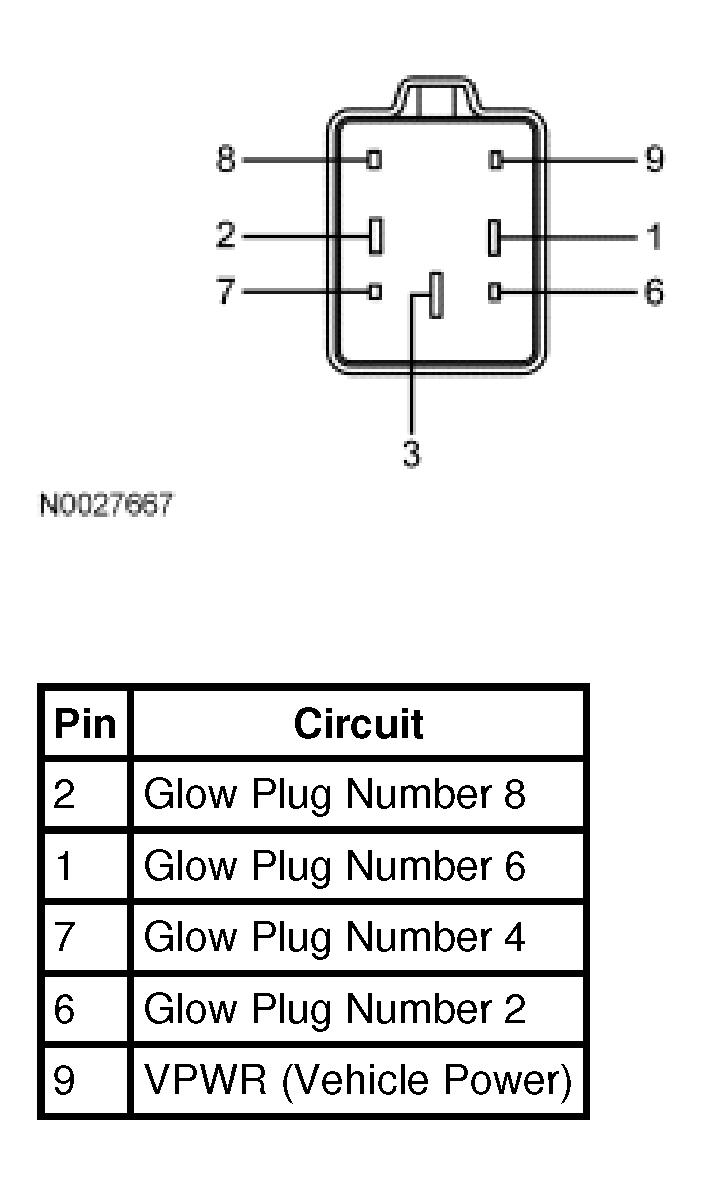

GPCM connectors are not interchangeable. The system generates DTCs if the connectors are mismatched. Make sure the green harness connector is plugged into the green module connector and the black harness connector into the black module connector. There is a black stripe on the GPCM housing for visual verification. The stripe should line up with the black connector.
CAUTION:
When disconnecting the green and black connectors at the GPCM it is suggested that the module be unbolted from the mounting bracket first and then the connectors disconnected. This allows for easier disconnect and prevents damage to the connector terminals.
NOTE:
The accelerator pedal may be used to increase the engine RPM and maintain battery voltage during the self-test. Make sure that the vehicle batteries are fully charged prior to carrying out the glow plug monitor self-test.
This pinpoint test is intended to diagnose the following:
- glow plugs
- glow plug bus bar
- GPCM
- PCM

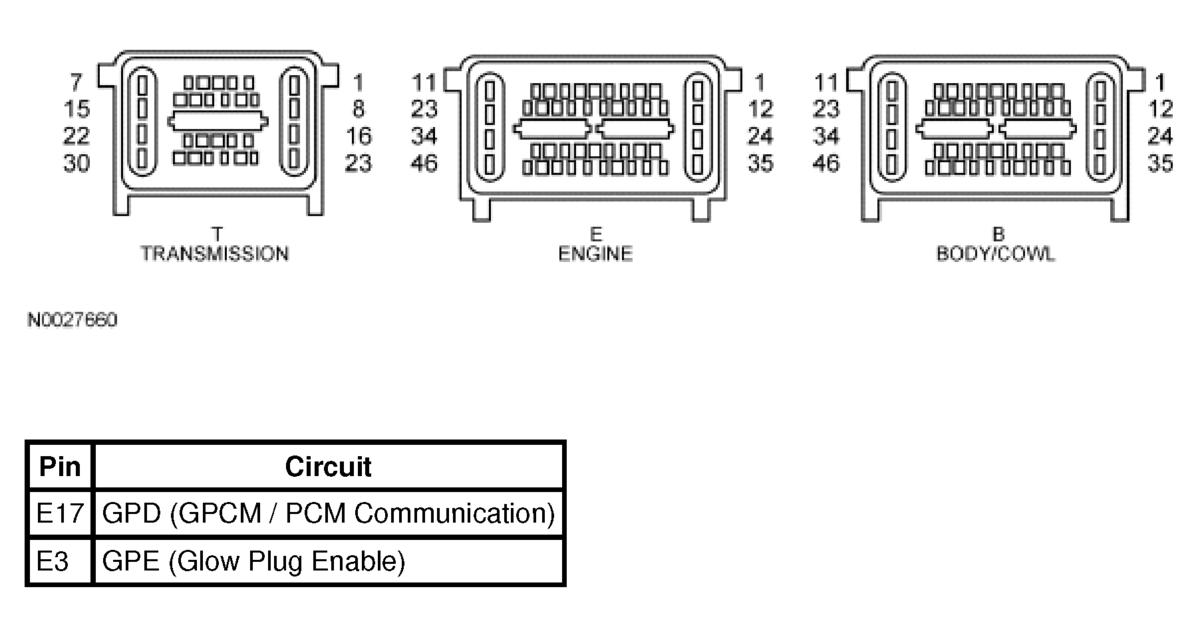

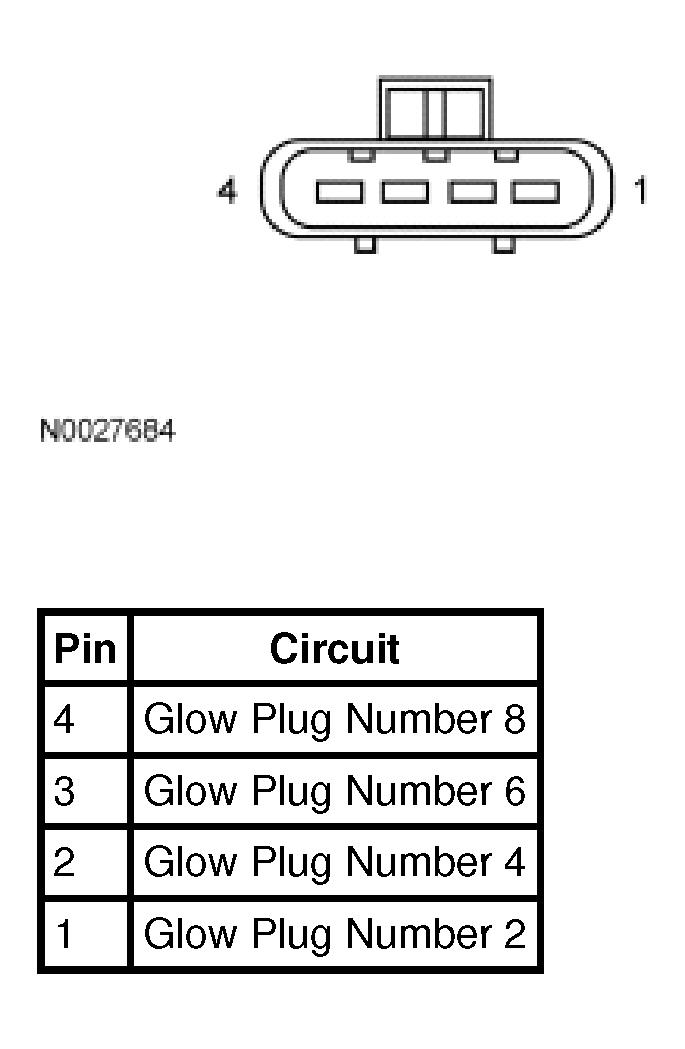

Bank 1

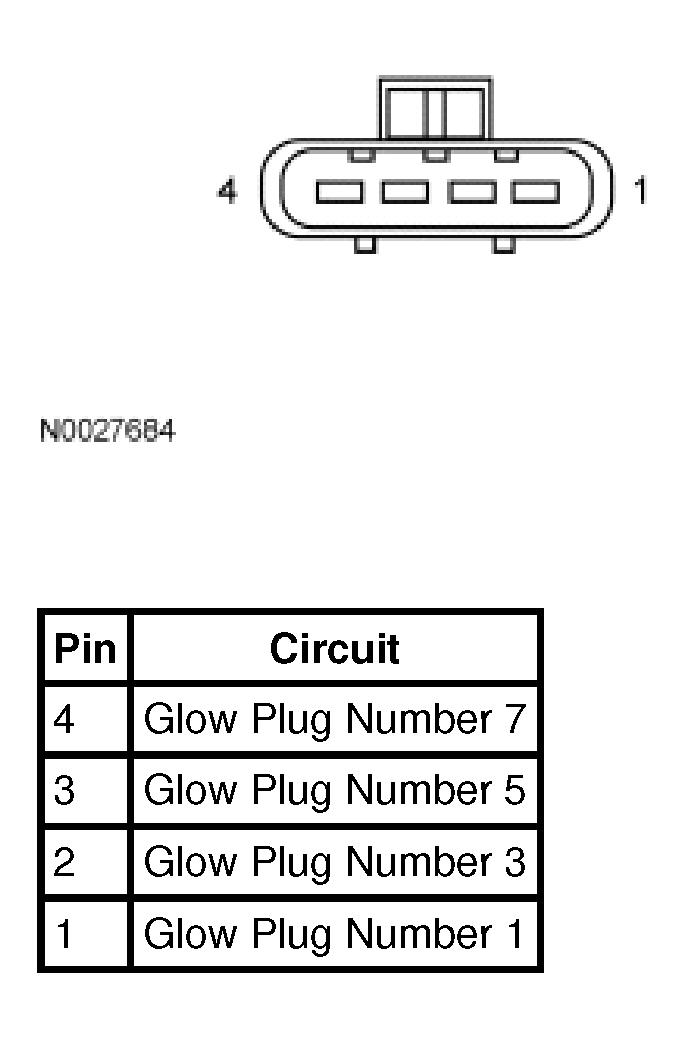

Bank 2
