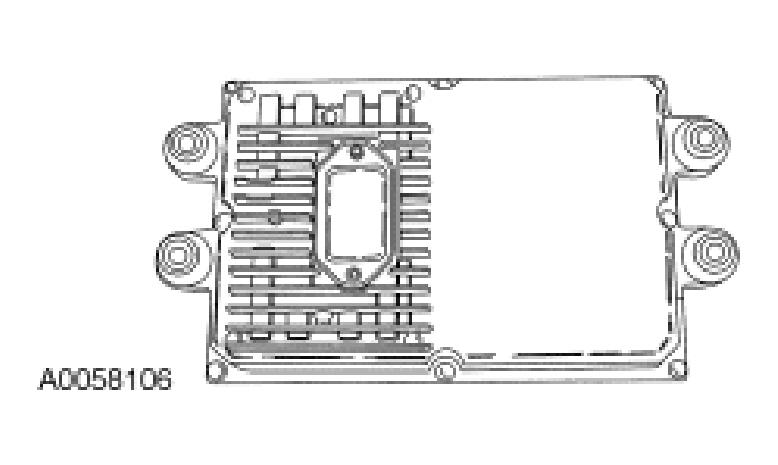

Fuel Injection Control Module (FICM)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
The FICM receives information from the PCM, including the volume of fuel desired, RPM, engine oil temperature, injection control pressure, and others. The FICM then uses those signals to calculate fuel injection and duration. After calculating injector fuel delivery time, the FICM sends 48 volts at a 20-amp pulse to the correct injector so that the correct amount of fuel is delivered to the cylinder at the correct time.
