Exhaust Gas Recirculation (EGR) Valve Control and Valve Position Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

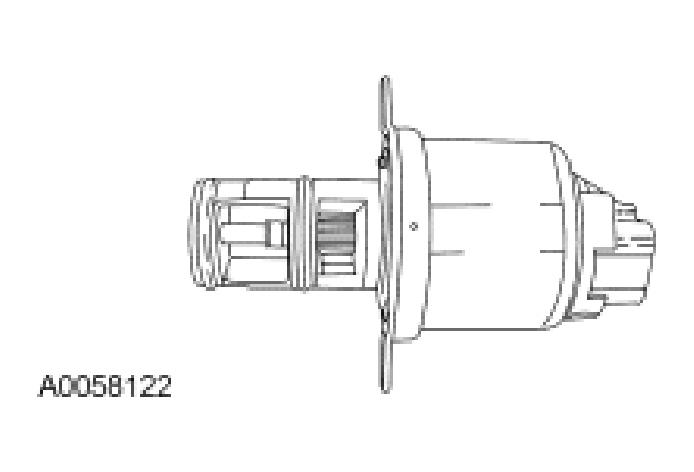

The EGR valve controls the amount of exhaust gases recirculated back to the intake. It is a proportional solenoid with a built-in position sensor. The valve position sensor is needed to give the control circuit feedback to achieve the desired travel position. The valve position sensor is a variable resistance pintle position sensor that makes position measurements of the exhaust gas recirculation valve control actuator. Input signals from the manifold absolute pressure (MAP), exhaust pressure (EP), and barometric pressure (BARO) sensors are used by the PCM to calculate and control the EGR system flow.
