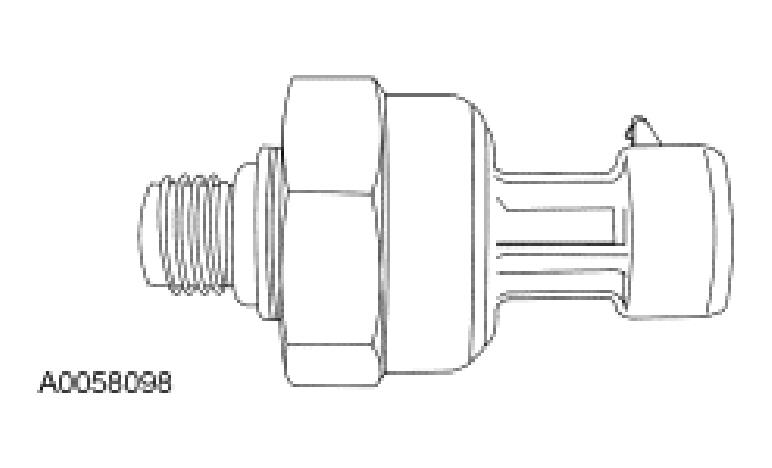

Injection Control Pressure (ICP) Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
The ICP sensor is a variable capacitor sensor that is supplied a 5-volt reference signal by the PCM and returns a linear analog voltage signal that indicates pressure. The sensor measures the oil pressure in the oil rail and the PCM uses this information to determine injection control pressure. The ICP sensor along with the injection pressure regulator (IPR) form a closed loop fuel pressure control system.
If the PCM detects an inoperative ICP sensor, the PCM controls the injection control pressure from a PCM estimated injection control pressure.
