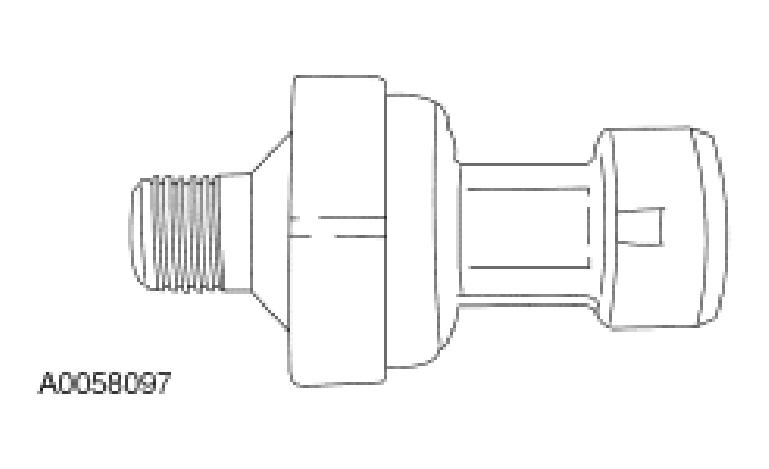

Exhaust Pressure (EP) Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
The EP sensor is a variable capacitor sensor that is supplied a 5-volt reference signal by the PCM and returns a linear analog voltage signal that indicates pressure. The EP sensor measures the pressure in the LH exhaust manifold. The sensor feedback signal is used for variable geometry turbo (VGT) and exhaust gas recirculation (EGR) valve control.
An open or short in the EP sensor wiring results in an out-of-range low voltage at the PCM.
