Air Conditioning (A/C) Pressure Switch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Ford RV Cutaway, 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

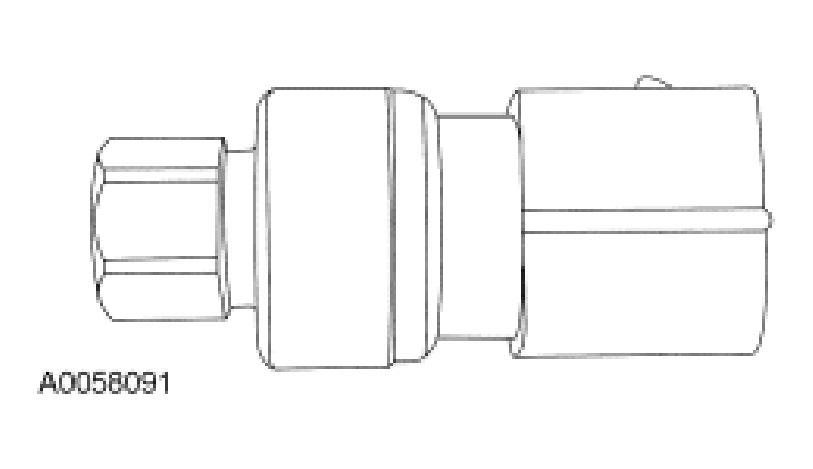

The A/C pressure switch is used for additional A/C system pressure control. The A/C pressure switch is also referred to as the refrigerant containment switch.
For refrigerant containment control, the normally closed high pressure contacts open at a predetermined A/C head pressure. This turns off the A/C by opening the A/C demand circuit, preventing the A/C pressure from rising to a level that would open the A/C high pressure relief valve.
For additional information, refer to the CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
