Vacuum Reservoir Assembly

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

The vacuum reservoir assembly stores vacuum that is applied to the vacuum actuator when a condition such as overheating or a critical sensor failure is generated. This allows the vacuum actuator to bypass the supercharger.

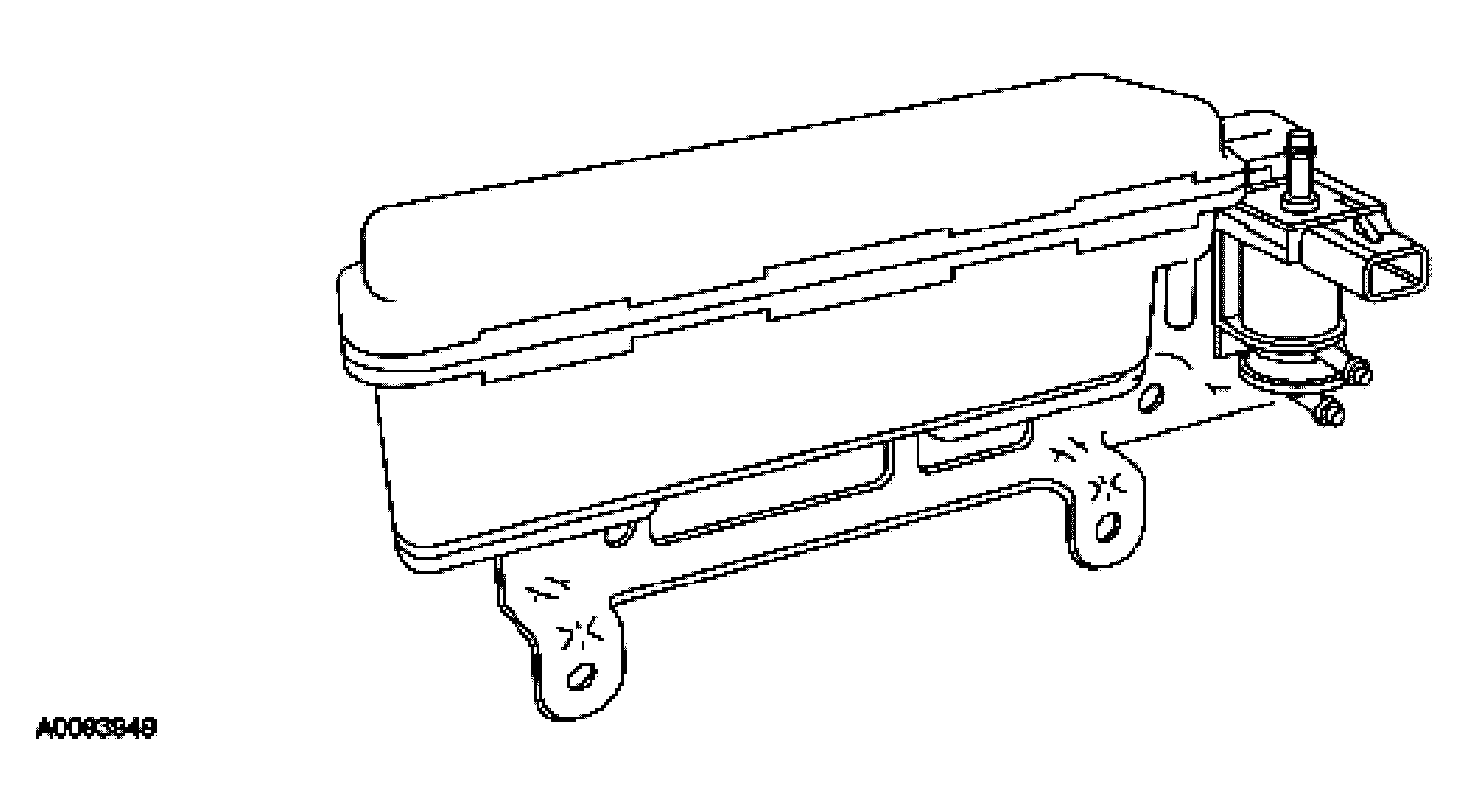

Fig 1: Vacuum Reservoir Assembly
G04587120Courtesy of FORD MOTOR CO.
