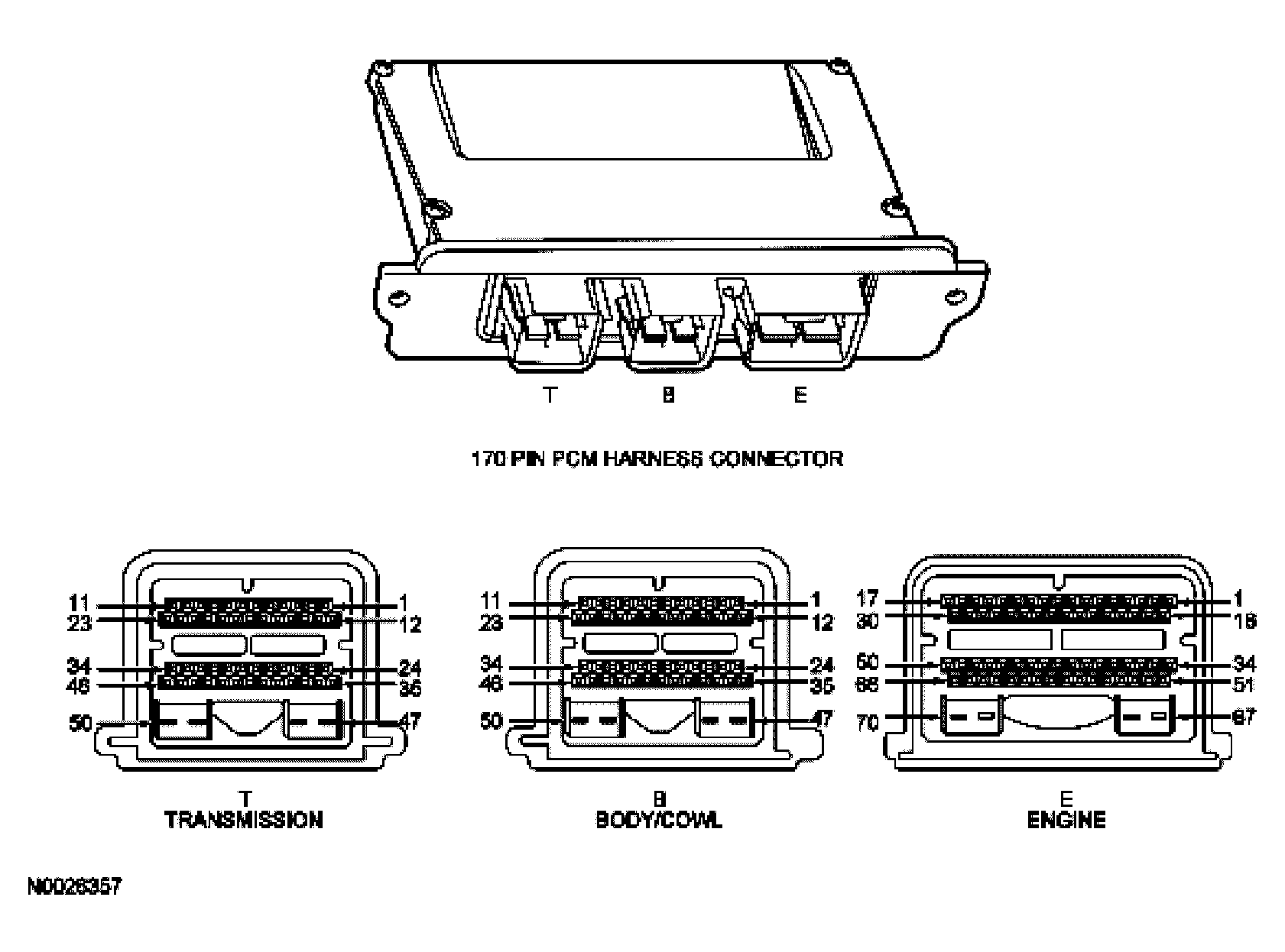

170-Pin PCM
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
170-PIN PCM POWER AND GROUNDS
| Function | Description | Connector/Pin |
|---|---|---|
| VPWR | Voltage input to module | B35 |
| VPWR | Voltage input to module | B36 |
| PWRGND | Power ground | B47 |
| PWRGND | Power ground | B48 |
| PWRGND | Power ground | B49 |
| PWRGND | Power ground | B50 |
| CSEGND | Case ground | B10 |
| SIGRTN | Connector B signal return | B41 |
| SIGRTN | Connector B signal return | B43 |
| SIGRTN | Connector E signal return | E33 |
| SIGRTN | Connector E signal return | E58 |
| SIGRTN | Connector T signal return | T41 |
| VREF | Connector B buffered 5.0-volt reference | B40 |
| VREF | Connector E buffered 5.0-volt reference | E57 |
| KAPWR | Keep alive power | B45 |
