104-Pin PCM

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

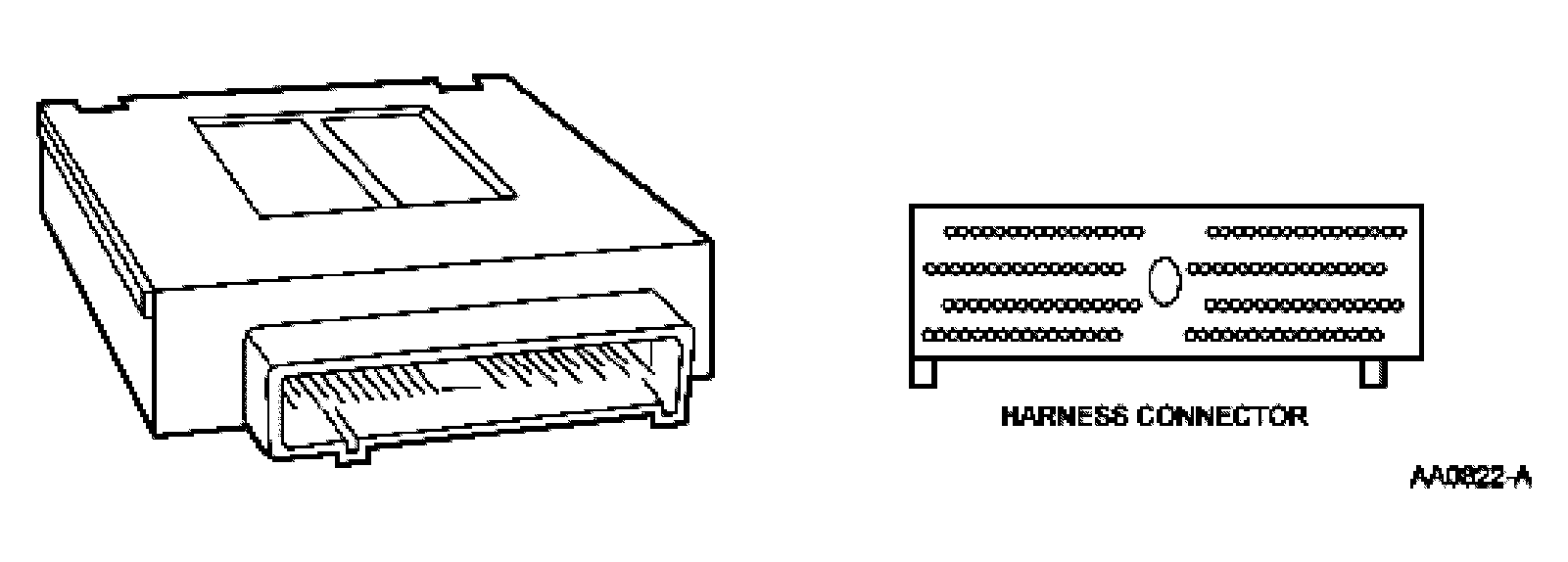

Fig 1: Identifying 104-Pin PCM
G04587082Courtesy of FORD MOTOR CO.
104-PIN PCM POWER AND GROUNDS

Function Description Connector/Pin
VPWR Voltage input to module 71,97
PWRGND Power ground 24,25,51,76,77,103
CSEGND Case ground 25
SIGRTN Signal return 91
VREF 5.0-volt reference 90
KAPWR Keep alive power 55
