Fuel Injectors
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not apply battery positive voltage (B+) directly to the fuel injector electrical connector terminals. The solenoids may be damaged internally in a matter of seconds.

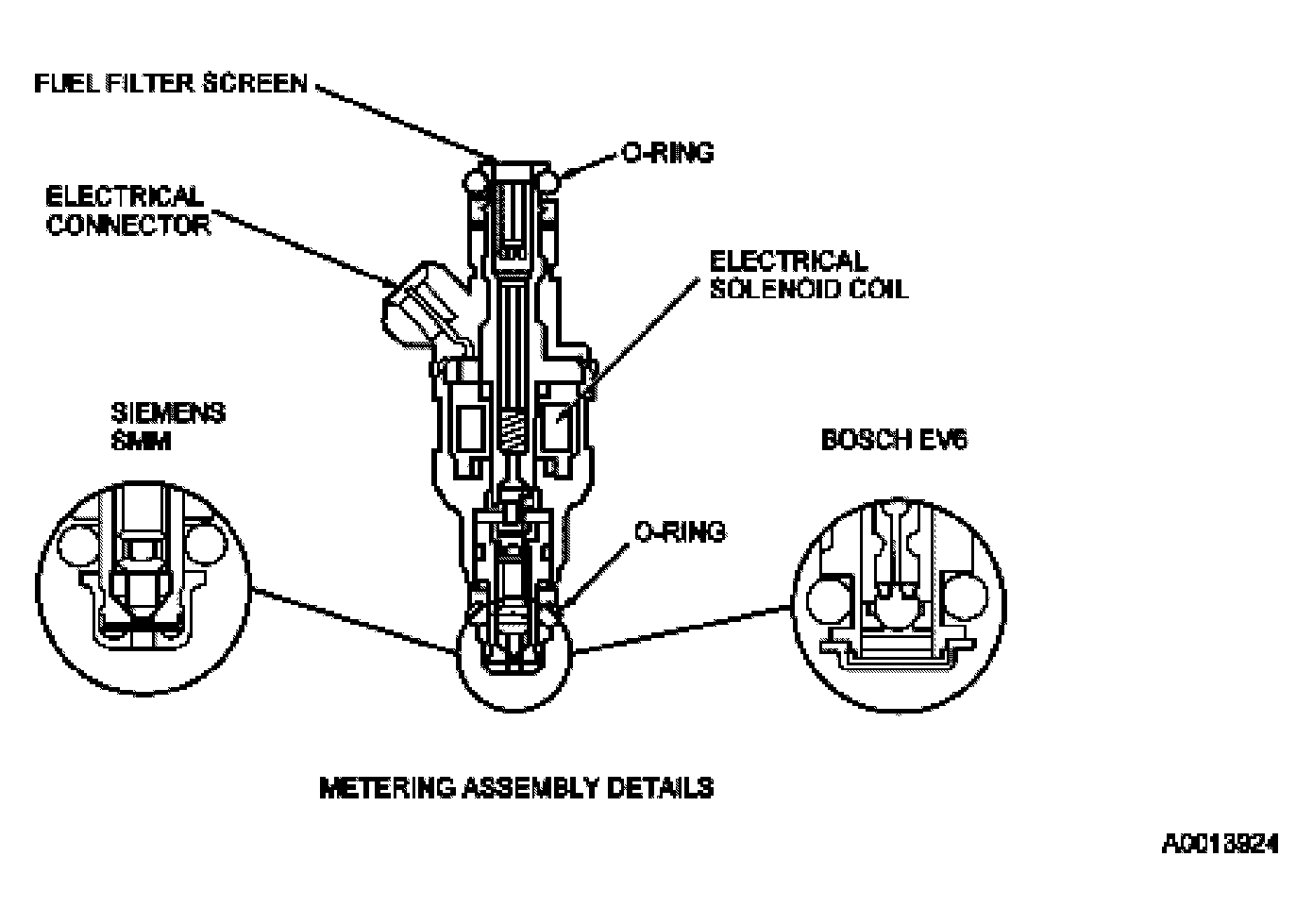

The fuel injector is a solenoid-operated valve that meters fuel flow to the engine. The fuel injector is opened and closed a constant number of times per crankshaft revolution. The amount of fuel is controlled by the length of time the fuel injector is held open.
The fuel injector is normally closed, and is operated by 12-volt VPWR from the electronic engine control power relay. The ground signal is controlled by the PCM.
The injector is the deposit resistant injector (DRI) type and does not have to be cleaned. However, it can be flow checked and, if found outside of specification, a new fuel injector should be installed.
