Fan Speed Sensor (FSS)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

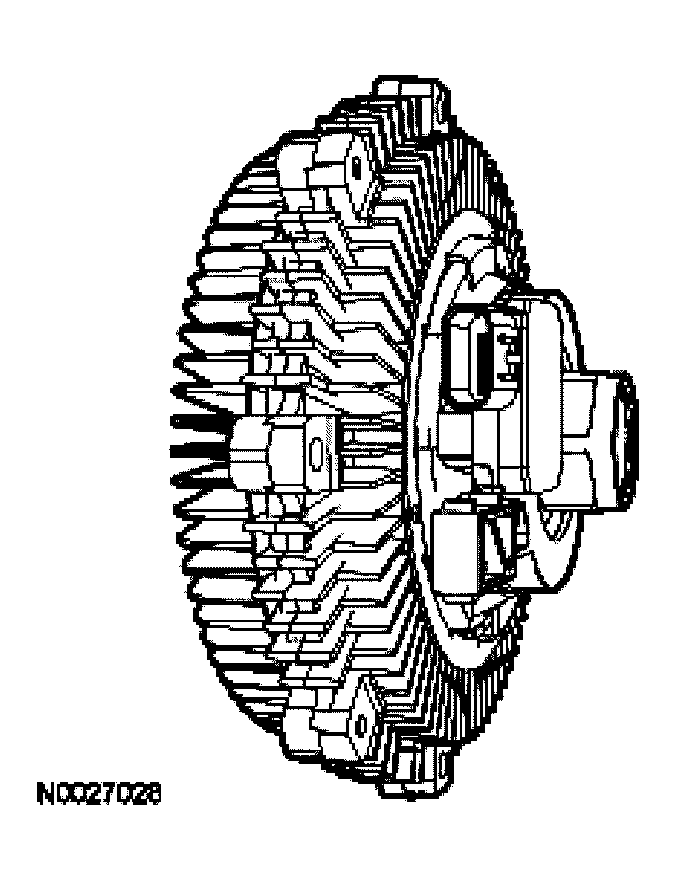

The FSS is a Hall-effect sensor that measures the cooling fan clutch speed by generating a waveform with a frequency proportional to the fan speed. If the cooling fan clutch is moving at a relatively low speed, the sensor produces a signal with a low frequency. As the cooling fan clutch speed increases, the sensor generates a signal with a higher frequency. The powertrain control module (PCM) uses the frequency signal generated by the FSS as a feedback for closed loop control of the cooling fan clutch. For additional information on the cooling fan clutch, refer to the COOLING FAN CLUTCH .
