Exhaust Gas Recirculation (EGR) System Module (ESM)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

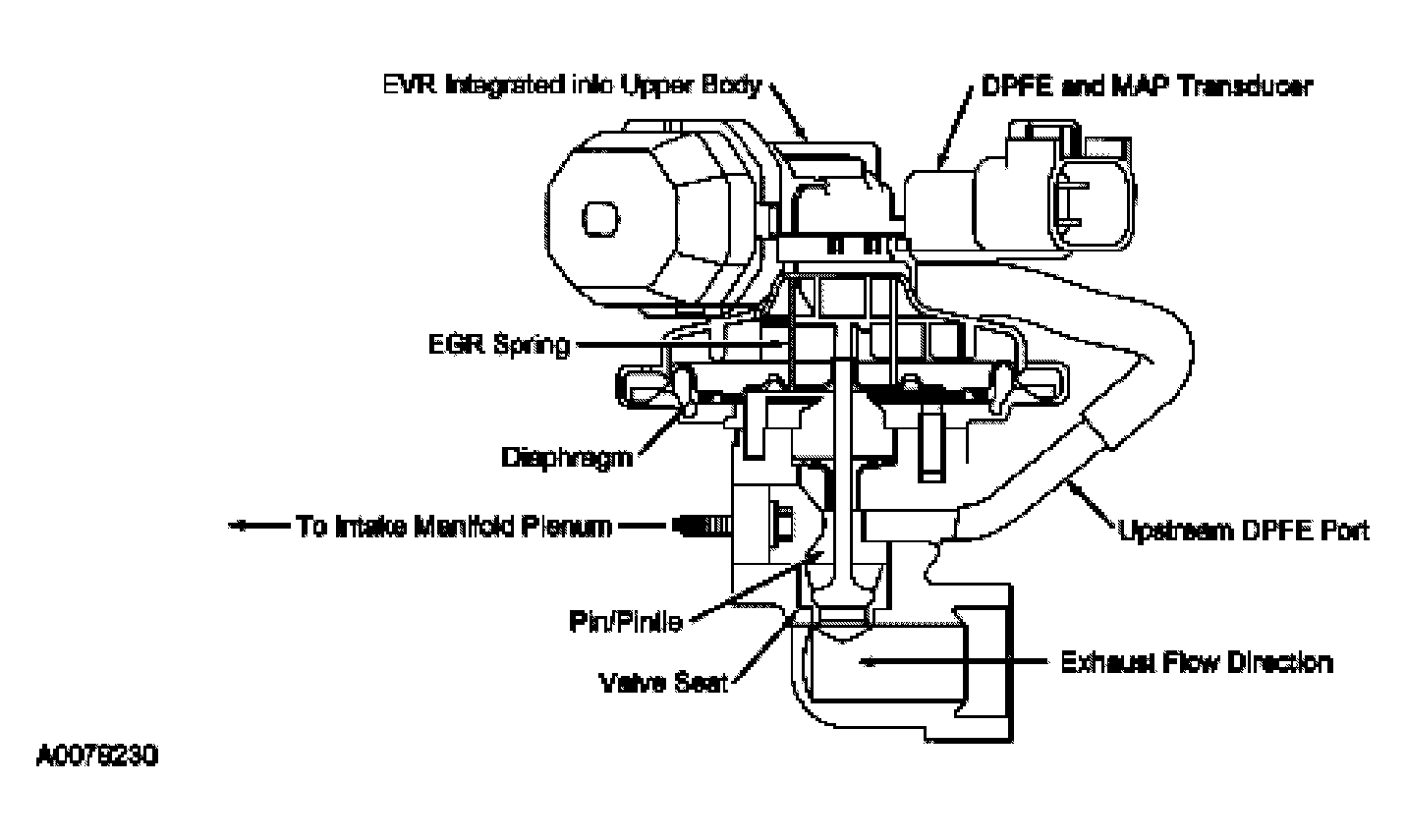

The ESM is an integrated differential pressure feedback EGR (DPFE) system. It functions in the same manner as the conventional DPFE system, however the various system components have been integrated into a single component called the ESM. The flange of the valve portion of the ESM bolts directly to the intake manifold with a metal gasket that forms the measuring orifice. This arrangement increases system reliability, response time, and system precision. By relocating the EGR orifice from the exhaust to the intake side of the EGR valve, the downstream pressure signal measures manifold absolute pressure (MAP). The system provides the powertrain control module (PCM) with a differential DPFE signal, identical to a traditional DPFE system.
