Air Conditioning Pressure (ACP) Sensor

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

The ACP sensor is located in the high pressure (discharge) side of the A/C system. The ACP sensor provides a voltage signal to the PCM that is proportional to the A/C pressure. The PCM uses this information for A/C clutch control, fan control and idle speed control.

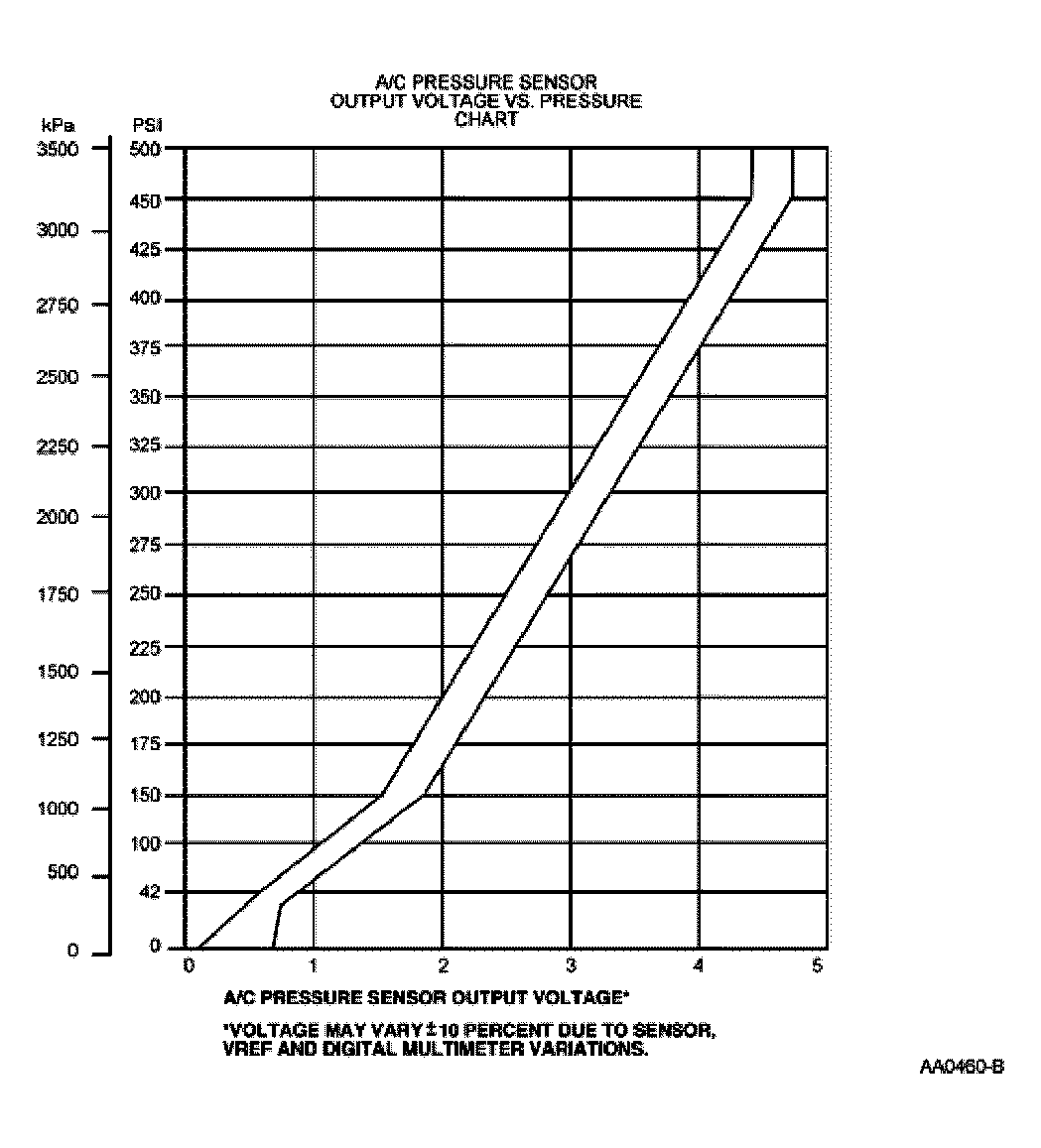

Fig 1: A/C Pressure Sensor Output Voltage VS Pressure Chart
G04587027Courtesy of FORD MOTOR CO.
Fig 2: Identifying Typical A/C Pressure Sensor
G04587028Courtesy of FORD MOTOR CO.
