Section 1323 (Component Testing -- F250-F550 Super Duty): Introduction: Terminals

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

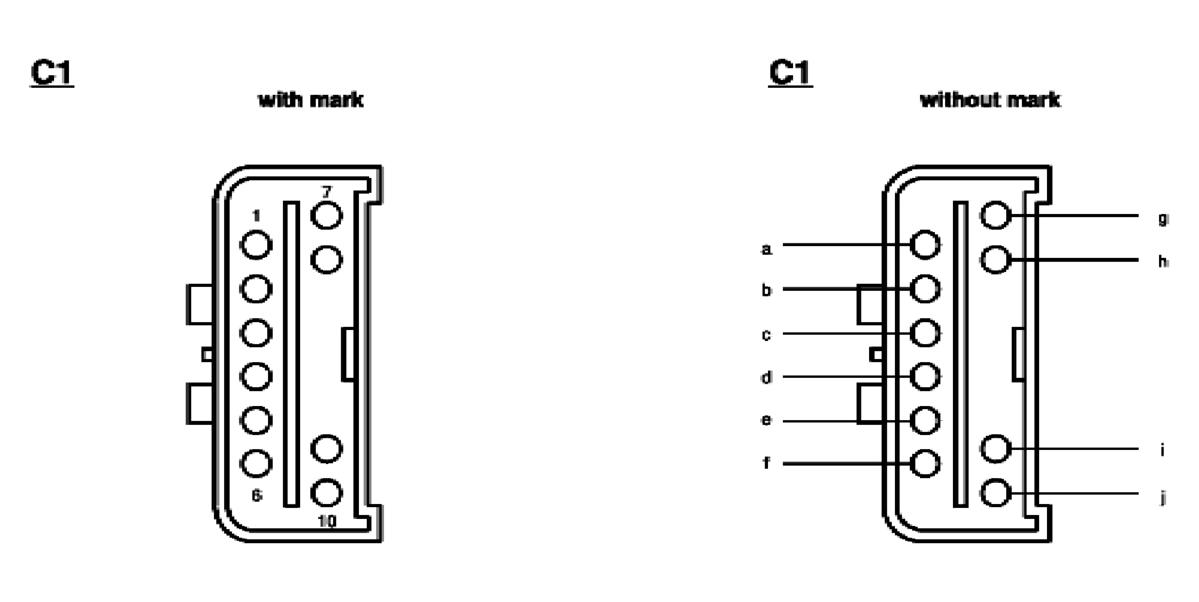

Fig 1: Identifying Connector C1 (With And Without Molded Identifiers)

Courtesy of FORD MOTOR CO.

The component connector MUST BE REMOVED before testing. To test a single circuit within the component, select that circuit under the column Circuit to test. If you wish to test the complete component, perform all tests.

Connect the tester to the terminals shown in the second column and operate the component as shown in the third column.
