Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire assembly. For additional information, refer to WHEELS AND TIRES article .
  2. Remove the four bolts and the stabilizer bar.

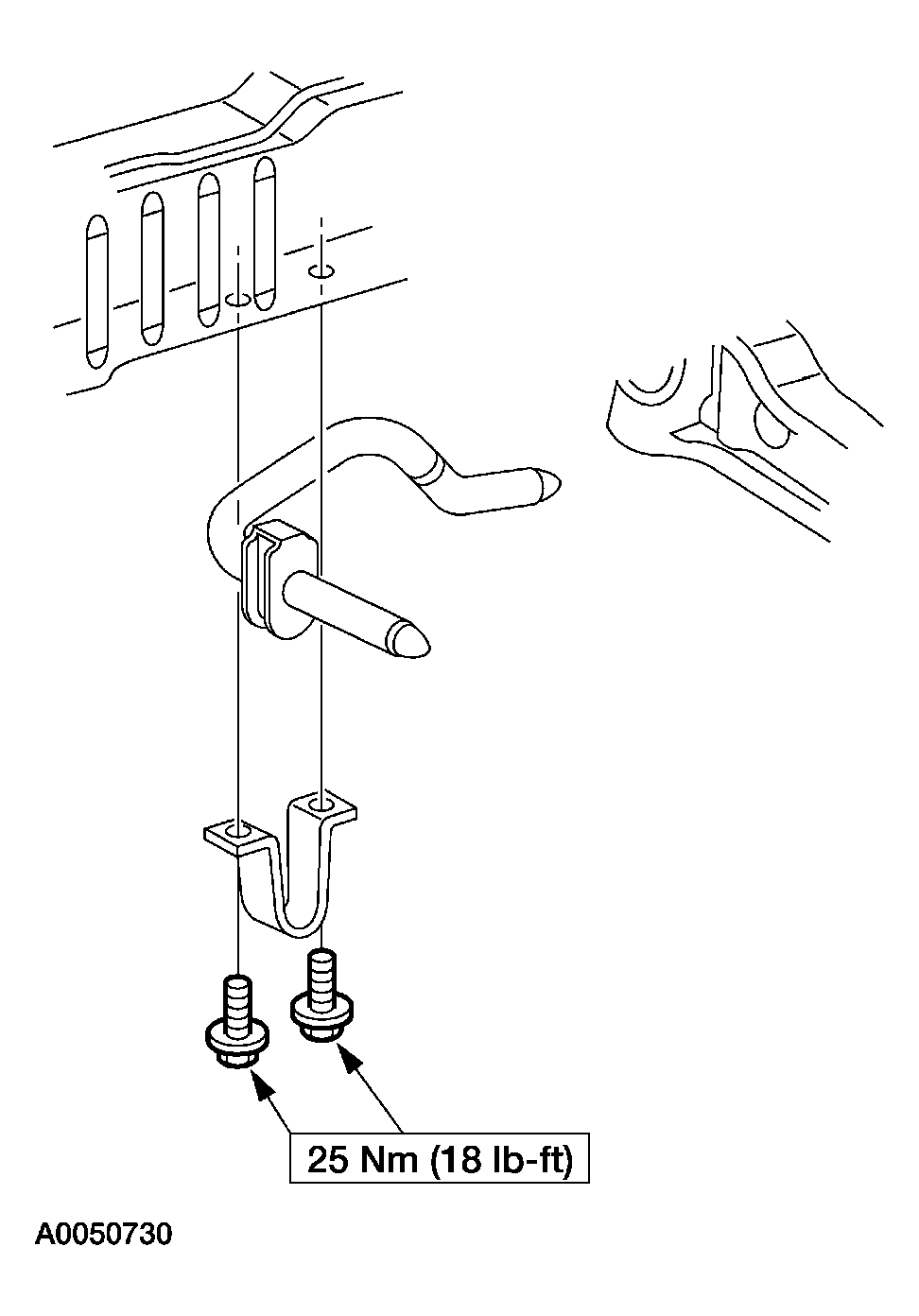

    Fig 1: Removing Stabilizer Bar
    G04025776Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
