Ball Joint: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel spindle assembly. For additional information, refer to WHEEL SPINDLE .
Position the front wheel spindle in a vise, and remove the snap ring from the lower ball joint.

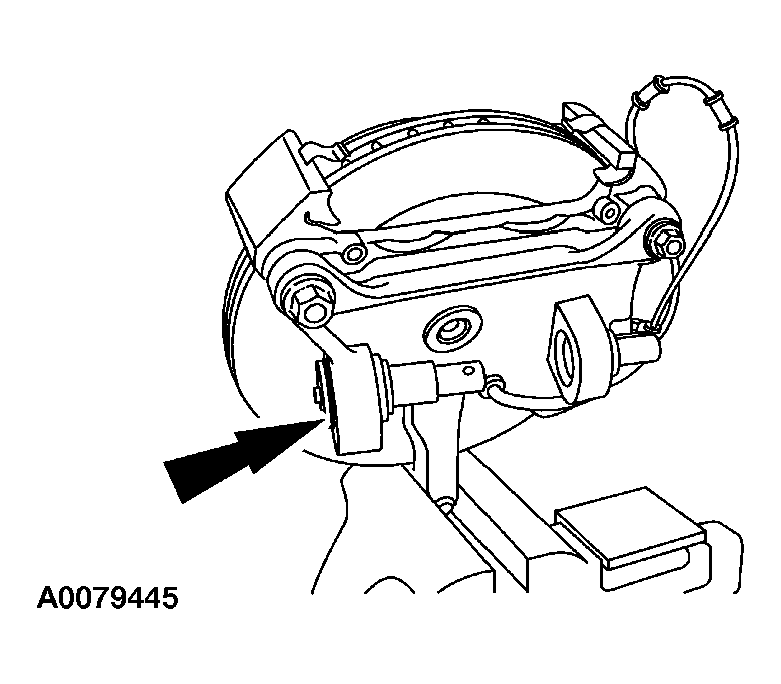

Fig 1: Removing Snap Ring From Lower Ball Joint
Courtesy of FORD MOTOR CO.

CAUTION: To avoid damage to the components, do not use heat to aid ball joint removal.

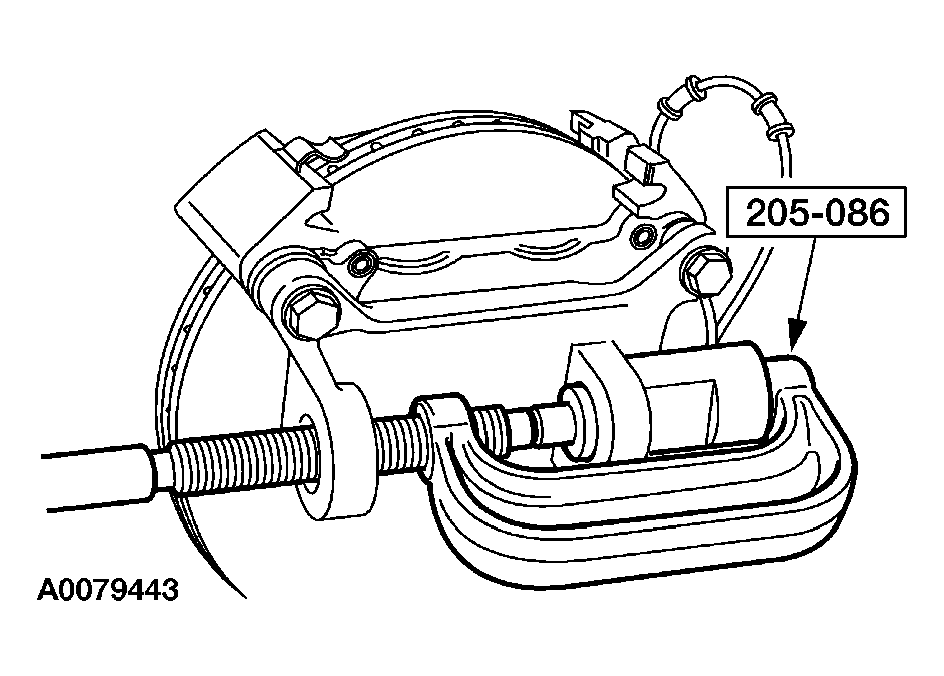

Fig 2: Removing Lower Ball Joint From Front Wheel Spindle

Courtesy of FORD MOTOR CO.

Using the special tool and suitable receiver cup, remove the lower ball joint from the front wheel spindle.
Using the special tool and suitable receiver cup, remove the upper ball joint.

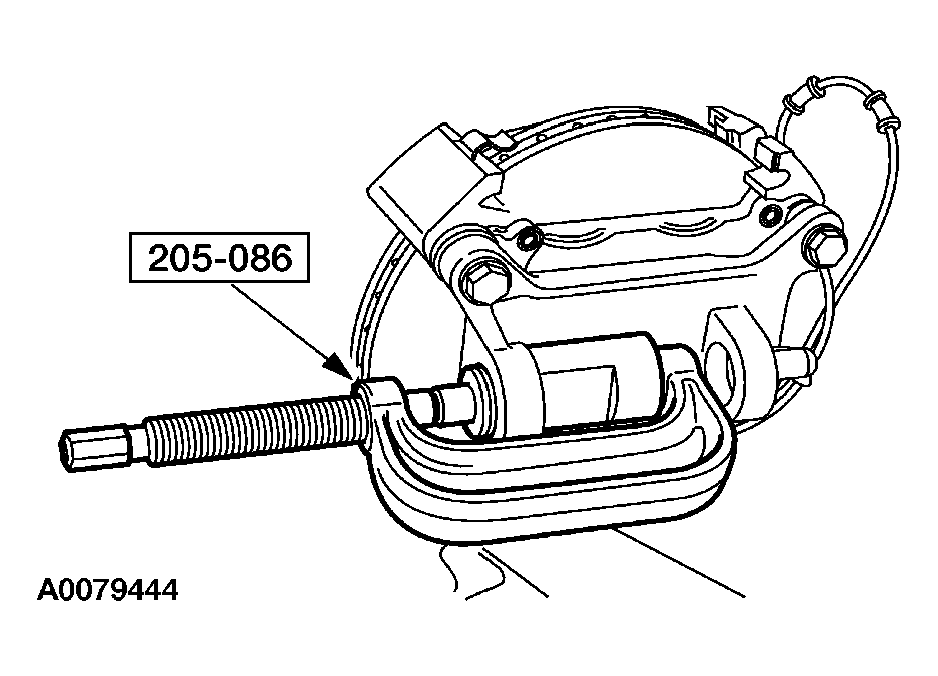

Fig 3: Removing Upper Ball Joint
Courtesy of FORD MOTOR CO.
