Ball Joint: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid damage to components, do not use heat to aid installation.

NOTE: Clean the wheel knuckle ball joint bores.

NOTE: The lower ball joint must be installed first.

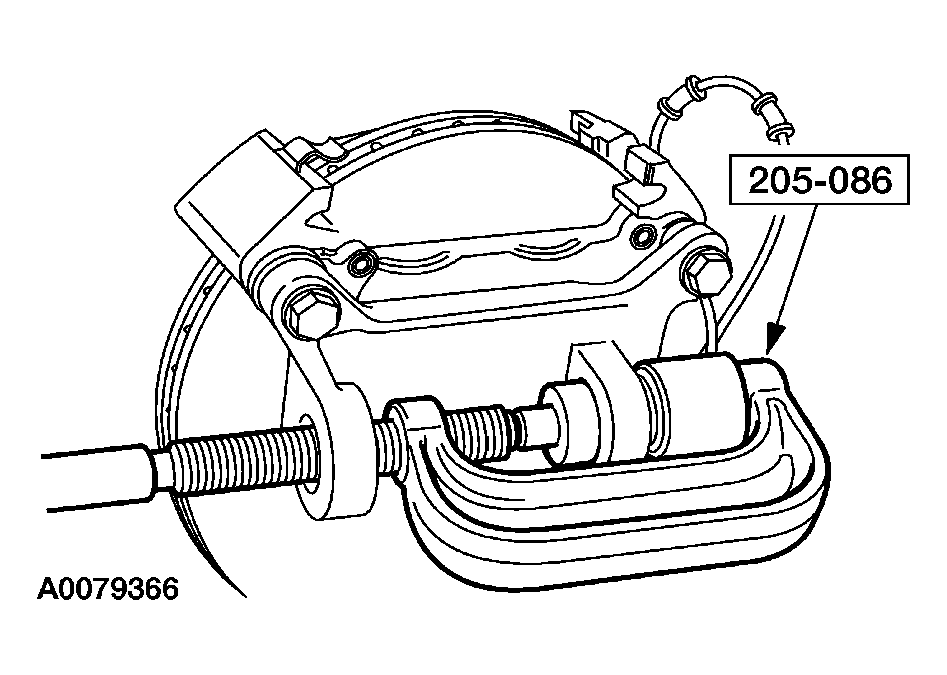

Fig 1: Installing Lower Ball Joint

Courtesy of FORD MOTOR CO.

Using the special tool with suitable receiver cups, install the lower ball joint.
Using the special tool with suitable receiver cups, install the upper ball joint.

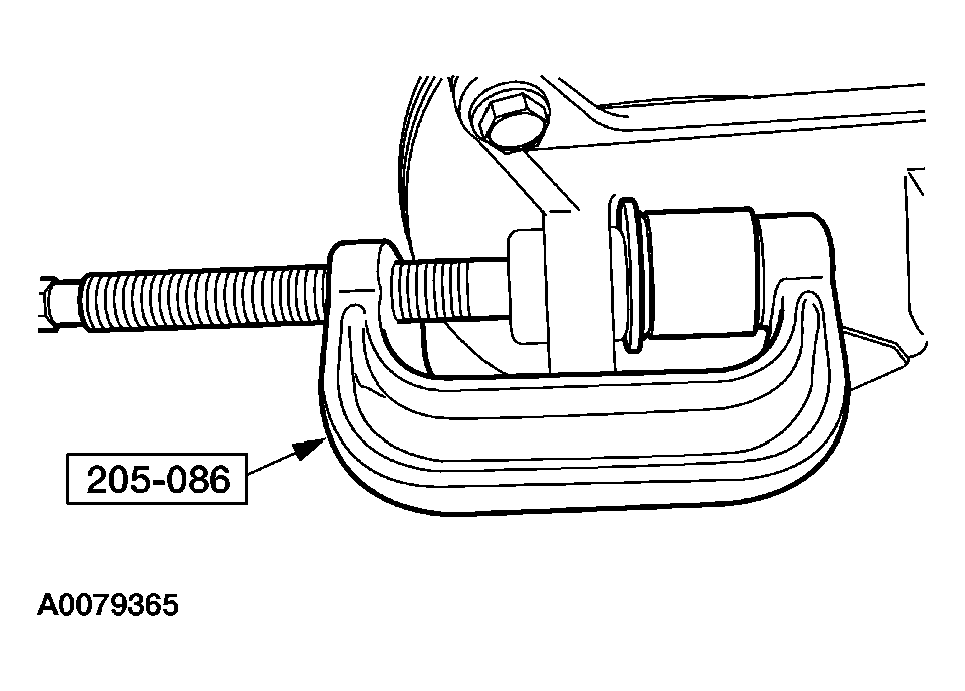

Fig 2: Installing Upper Ball Joint
Courtesy of FORD MOTOR CO.
Install the snap ring in the groove at the bottom of the ball joint.

Fig 3: Installing Snap Ring In Groove At Bottom Of Ball Joint
Courtesy of FORD MOTOR CO.
Install the front wheel spindle. For additional information, refer to WHEEL SPINDLE .
