Underbody Misalignment Check
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- The dimensions of the underbody must be restored to provide the correct front and rear wheel alignment geometry.
- All the dimensions are measured between the centers of the existing holes in the underbody unless otherwise specified.
- Inspect all underbody structural members for cracks, twists or bends. Check all welded connections for cracks. Inspect the support brackets for looseness. Carry out any necessary repairs or install new components as necessary.
- The X axis is referenced from the front of the vehicle. The Y axis is referenced from the center line of the vehicle.

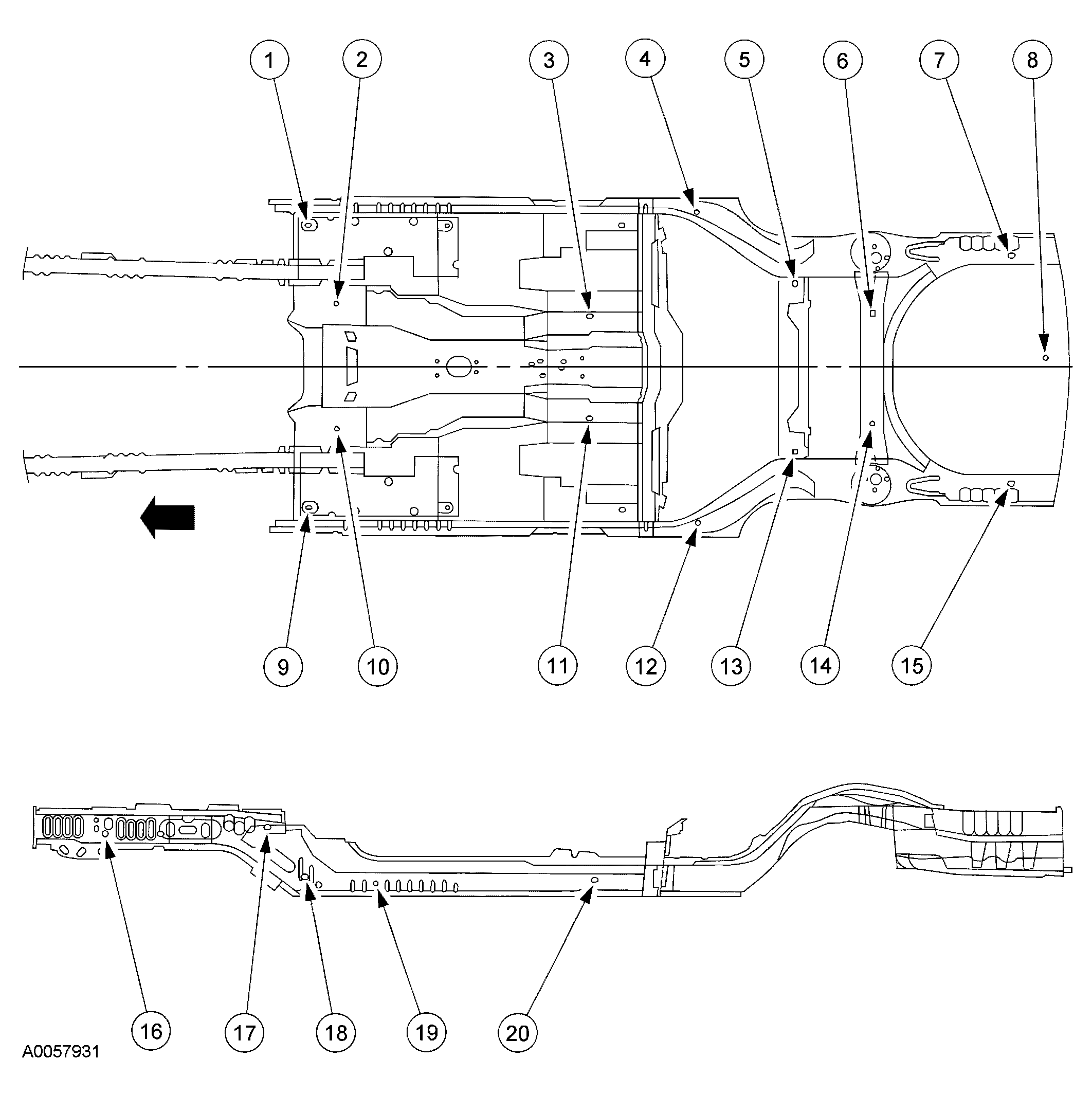

UNDERBODY DIMENSIONS
| Dimension | X axis mm(in) | Y axis mm(in) |
|---|---|---|
| 1 | 2,044.59 mm (80.49 in) | 614 mm (24.17 in) |
| 2 | 2,164 mm (85.19 in) | 273 mm (10.74 in) |
| 3 | 3,258 mm (128.26 in) | 224 mm (8.81 in) |
| 4 | 3,275 mm (128.73 in) | 675 mm (26.57 in) |
| 5 | 4,150 mm (163.38 in) | 365 mm (14.37 in) |
| 6 | 4,490 mm (176.77 in) | 240 mm (9.44 in) |
| 7 | 5,100 mm (200.78 in) | 500 mm (19.68) |
| 8 | 5,250 mm (206.69 in) | 50 mm (1.96) |
| 9 | 2,044.59 mm (80.49 in) | 614 mm (24.17 in) |
| 10 | 2,164 mm (85.19 in) | 273 mm (10.74 in) |
| 11 | 3,258 mm (128.26 in) | 224 mm (8.81 in) |
| 12 | 3,725 mm (146.65 in) | 675 mm (26.57 in) |
| 13 | 4,150 mm (163.38 in) | 365 mm (14.37 in) |
| 14 | 4,490 mm (176.77 in) | 240 mm (9.44 in) |
| 15 | 5,100 mm (200.78 in) | 500 mm (19.68 in) |
| 16 | 1,118 mm (44.01 in) | - |
| 17 | 1,825 mm (71.85 in) | - |
| 18 | 1,990 mm (78.34 in) | - |
| 19 | 2,300 mm (90.55 in) | - |
| 20 | 3,258 mm (128.26 in) | - |
