Side Impact Sensor - Second Row, C-Pillar: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

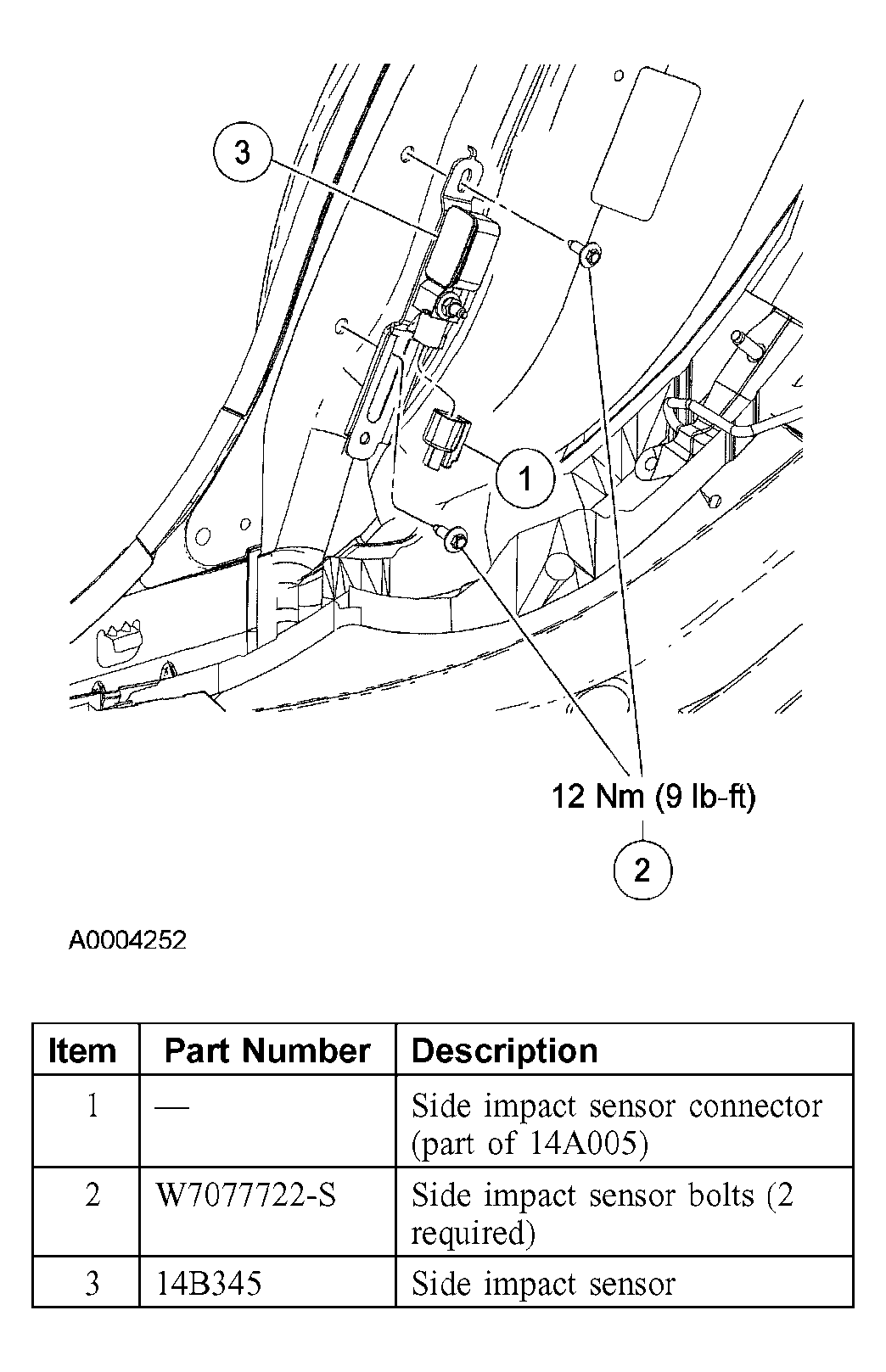

Fig 1: Identifying Side Impact Sensor - Second Row, C-Pillar Component
G04000124Courtesy of FORD MOTOR CO.
