Supplemental Restraint System (SRS) Deactivation and Reactivation: Reactivation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the RCM fuse F2.05 from the CJB.
  2. Disconnect the battery ground cable and wait at least 1 minute.

    3. Vehicles without side air curtains

  3. Remove the restraint system diagnostic tool from the vehicle harness side of the driver seat side air bag electrical connector.
    Fig 1: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Driver Seat Side Air Bag Electrical Connector
    G04000039Courtesy of FORD MOTOR CO.

    4. Vehicles with side air curtains

  4. Remove the restraint system diagnostic tool from the vehicle harness side of the driver seat side thorax air bag electrical connector.
    Fig 2: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Driver Seat Side Thorax Air Bag Electrical Connector
    G04000040Courtesy of FORD MOTOR CO.

    5. All vehicles

  5. Connect the driver seat side air bag or driver seat side thorax air bag electrical connector.
    Fig 3: Connecting Driver Seat Side Air Bag Or Driver Seat Side Thorax Air Bag Electrical Connector
    G04000038Courtesy of FORD MOTOR CO.

    Vehicles without side air curtains

  6. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger seat side air bag electrical connector.
    Fig 4: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Passenger Seat Side Air Bag Electrical Connector
    G04000039Courtesy of FORD MOTOR CO.

    7. Vehicles with side air curtains

  7. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger seat side thorax air bag electrical connector.
    Fig 5: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Passenger Seat Side Thorax Air Bag Electrical Connector
    G04000040Courtesy of FORD MOTOR CO.

    8. All vehicles

  8. Connect the passenger seat side air bag or passenger seat side thorax air bag electrical connector.
    Fig 6: Connecting Passenger Seat Side Air Bag Or Passenger Seat Side Thorax Air Bag Electrical Connector
    G04000038Courtesy of FORD MOTOR CO.

    9. Vehicles with side air curtains

  9. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger side air curtain module electrical connector.
    Fig 7: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Passenger Side Air Curtain Module Electrical Connector
    G04000037Courtesy of FORD MOTOR CO.
  10. Connect the passenger side air curtain module electrical connector.
    Fig 8: Connecting Passenger Side Air Curtain Module Electrical Connector
    G04000036Courtesy of FORD MOTOR CO.
  11. Install the A-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

    12. All vehicles

  12. Remove the restraint system diagnostic tool from the vehicle harness side of the passenger air bag module electrical connector.
    Fig 9: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Passenger Air Bag Module Electrical Connector
    G04000035Courtesy of FORD MOTOR CO.
    13. NOTE: The inset view of the illustration is looking up into the instrument panel from underneath.
    NOTE: The passenger air bag module electrical connector is located in front of the cross-car beam attached by a pin-type retainer to a bracket on the back of the passenger air bag module.
    Fig 10: Locating Passenger Air Bag Module Electrical Connector
    G04000033Courtesy of FORD MOTOR CO.
  13. Locate the passenger air bag module electrical connector.
  14. Connect the passenger air bag module.
    Fig 11: Connecting Passenger Air Bag Module
    G04000054Courtesy of FORD MOTOR CO.
  15. Install the glove compartment. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

    16. Vehicles with side air curtains

    NOTE: If the headliner has the word "AIRBAG" embossed on it near each B-pillar, the vehicle is equipped with side air curtain modules.
    Fig 12: Removing Restraint System Diagnostic Tool From Vehicle Harness Side Of Driver Side Air Curtain Module Electrical Connector
    G04000032Courtesy of FORD MOTOR CO.
  16. Remove the restraint system diagnostic tool from the vehicle harness side of the driver side air curtain module electrical connector.
  17. Connect the driver side air curtain module electrical connector.
    Fig 13: Connecting Driver Side Air Curtain Module Electrical Connector
    G04000031Courtesy of FORD MOTOR CO.
  18. Install the A-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    Fig 14: Installing A-pillar Trim Panel
    G04000057Courtesy of FORD MOTOR CO.

    19. All vehicles

  19. Remove the restraint system diagnostic tools from the clockspring electrical connectors at the top of the steering column.
    Fig 15: Removing Restraint System Diagnostic Tools From Clockspring Electrical Connectors At Top Of Steering Column
    G04000030Courtesy of FORD MOTOR CO.
    20. CAUTION: The clockspring electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module.

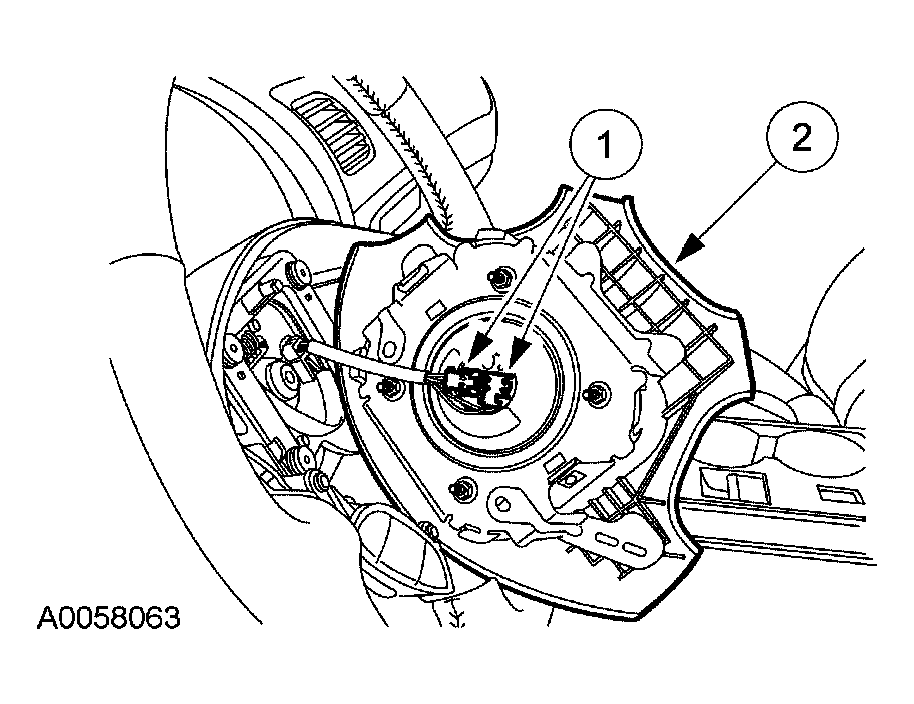

    Fig 16: Connecting Driver Air Bag Module Electrical Connectors
    G04000059Courtesy of FORD MOTOR CO.
  20. Connect and position the driver air bag module.
    1. Connect the driver air bag module electrical connectors.
    2. Position the driver air bag module to the steering wheel.
  21. Install the 2 driver air bag module bolts (1 shown).

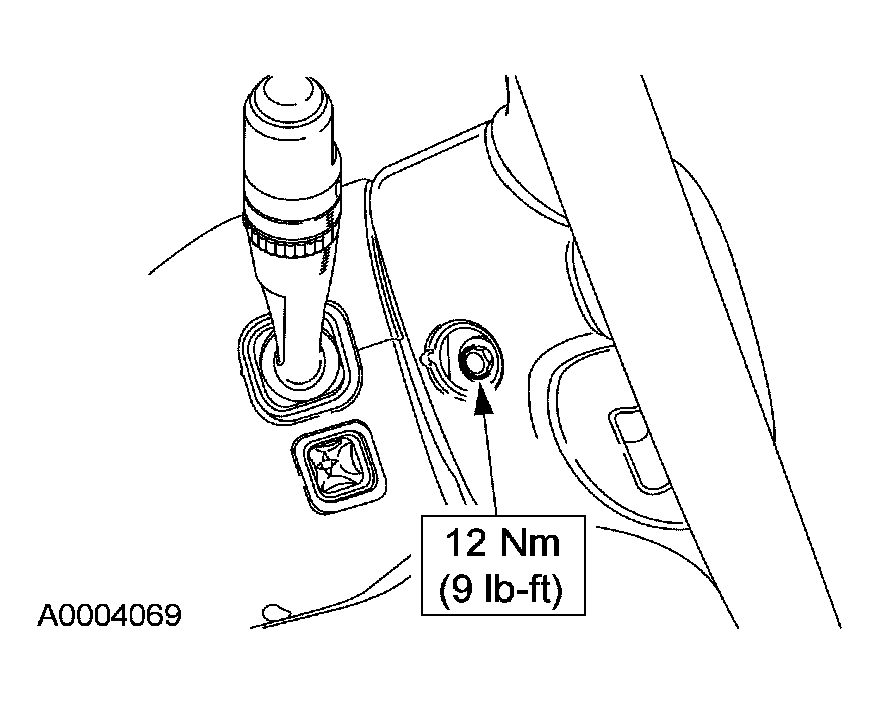

    Fig 17: Installing Driver Air Bag Module Bolts - With Torque Specification
    G04000060Courtesy of FORD MOTOR CO.
  22. Install the 2 steering wheel plugs (1 shown).
    Fig 18: Identifying Steering Wheel Cover Plugs
    G04000027Courtesy of FORD MOTOR CO.
  23. Turn the ignition switch from OFF to ON.
  24. Install the restraints control module fuse F2.05 (10A) to the CJB and install the RH kick panel cover.
    25. WARNING: Be sure that nobody is in the vehicle and that there is nothing blocking or set in front of any air bag module when the battery ground cable is connected.
  25. Connect the battery ground cable.
  26. Prove out the supplemental restraint system (SRS) as follows:

    Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag indicator with the air bag modules installed. The air bag indicator will light continuously for approximately 6 seconds and then turn off. If an air bag supplemental restraint system (SRS) fault is present, the air bag indicator will either:

    • fail to light.
    • remain lit continuously.
    • flash.

    The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the restraints control module (RCM) to complete the testing of the SRS. If the air bag indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag indicator and any SRS fault discovered must be diagnosed and repaired.

    Clear all continuous DTCs from the restraints control module using a scan tool.
