Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

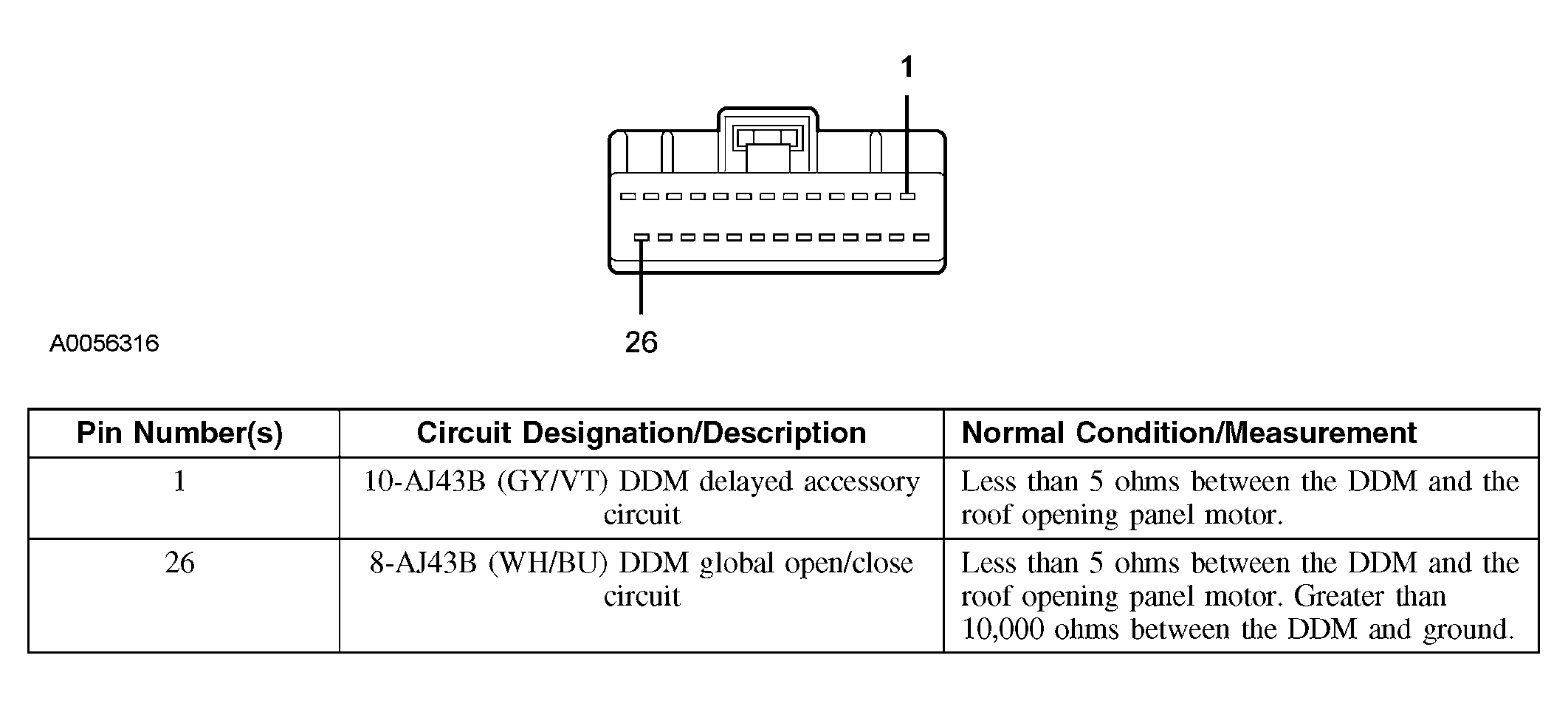

Fig 1: Identifying Driver Door Module C501d - Connector Pinout
G03999816Courtesy of FORD MOTOR CO.

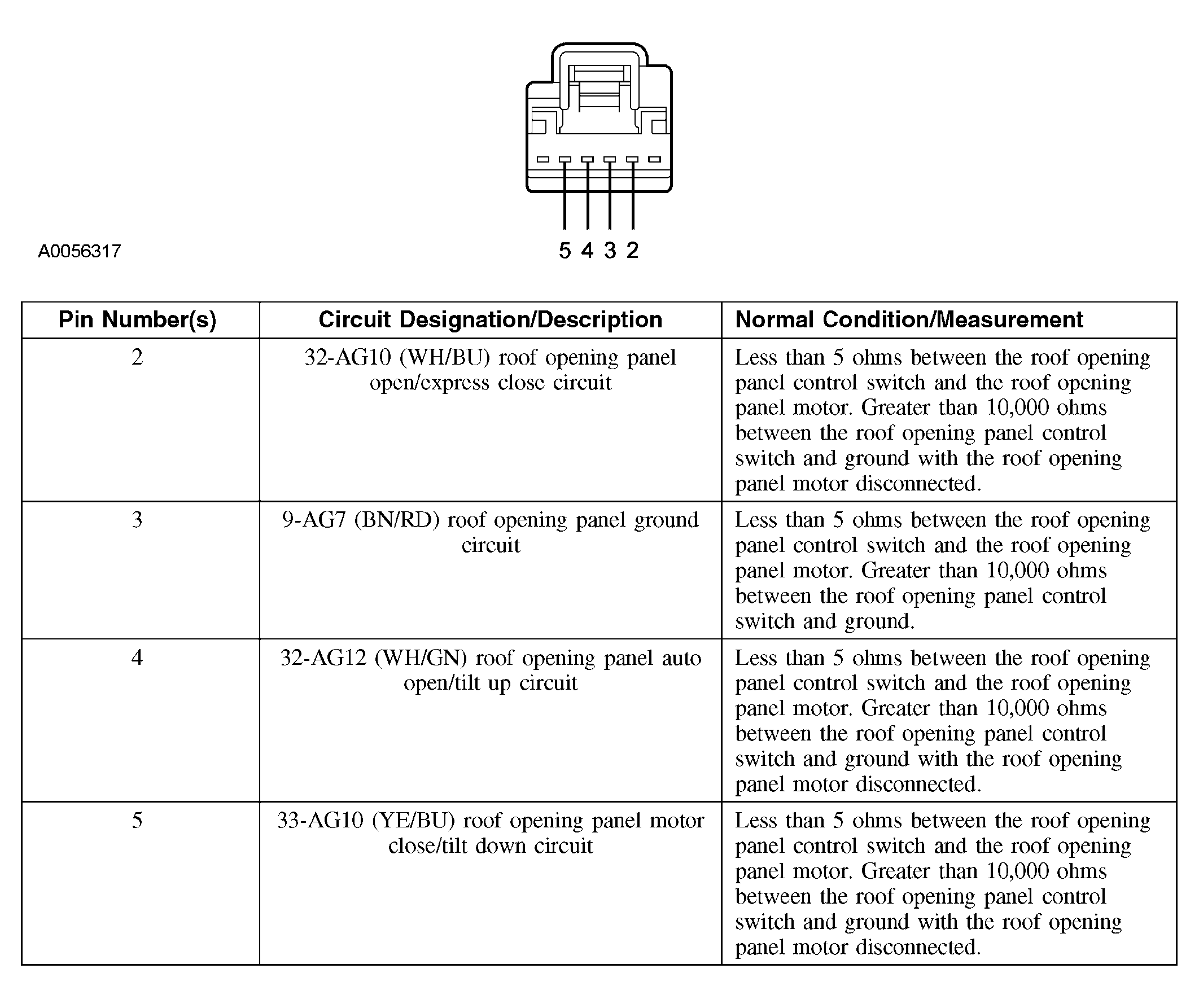

Fig 2: Identifying Roof Opening Panel Control Switch C912 - Connector Pinout
G03999817Courtesy of FORD MOTOR CO.

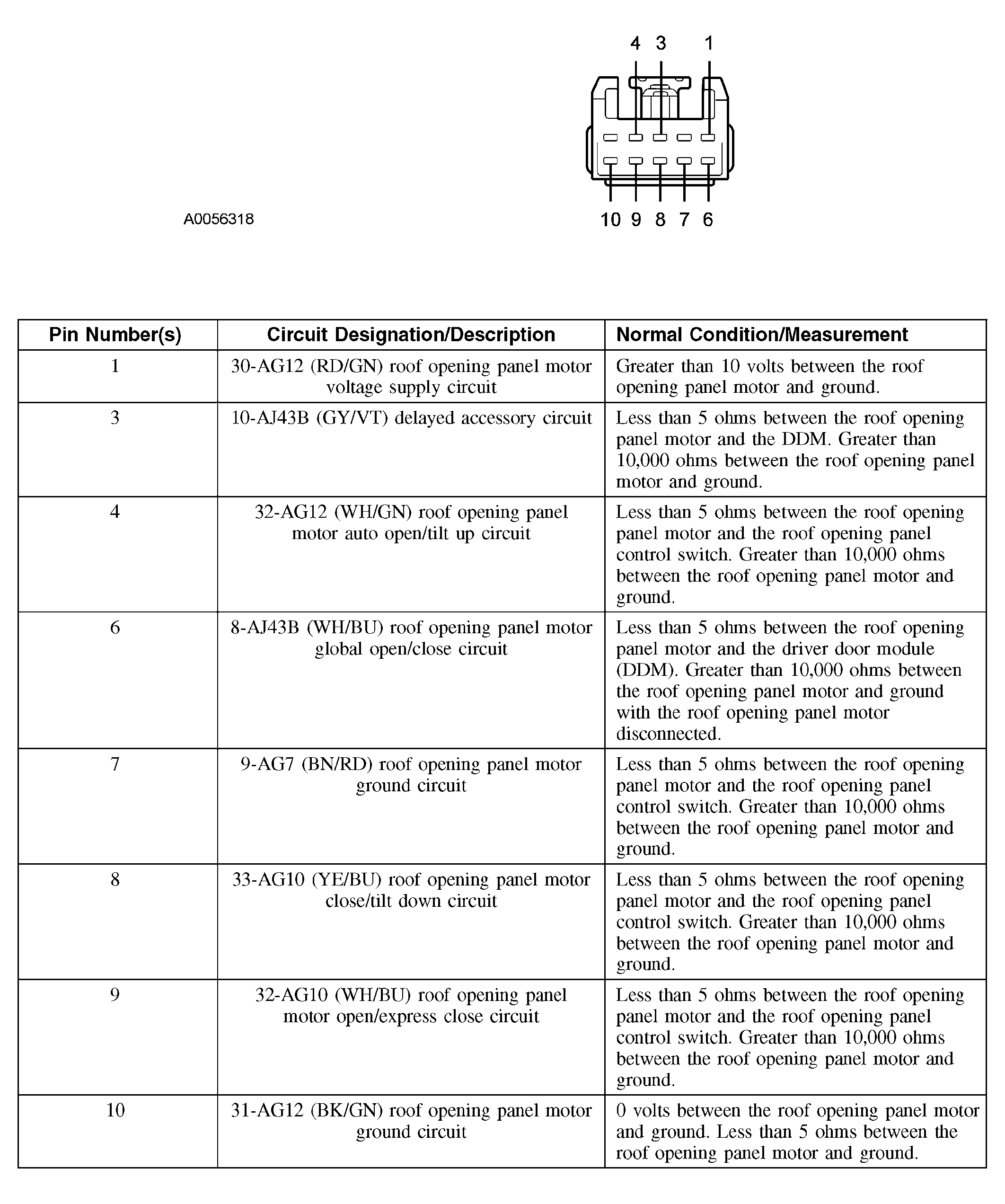

Fig 3: Identifying Roof Opening Panel Motor C920 - Connector Pinout
G03999818Courtesy of FORD MOTOR CO.
