Windshield Washer Pump and Reservoir: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

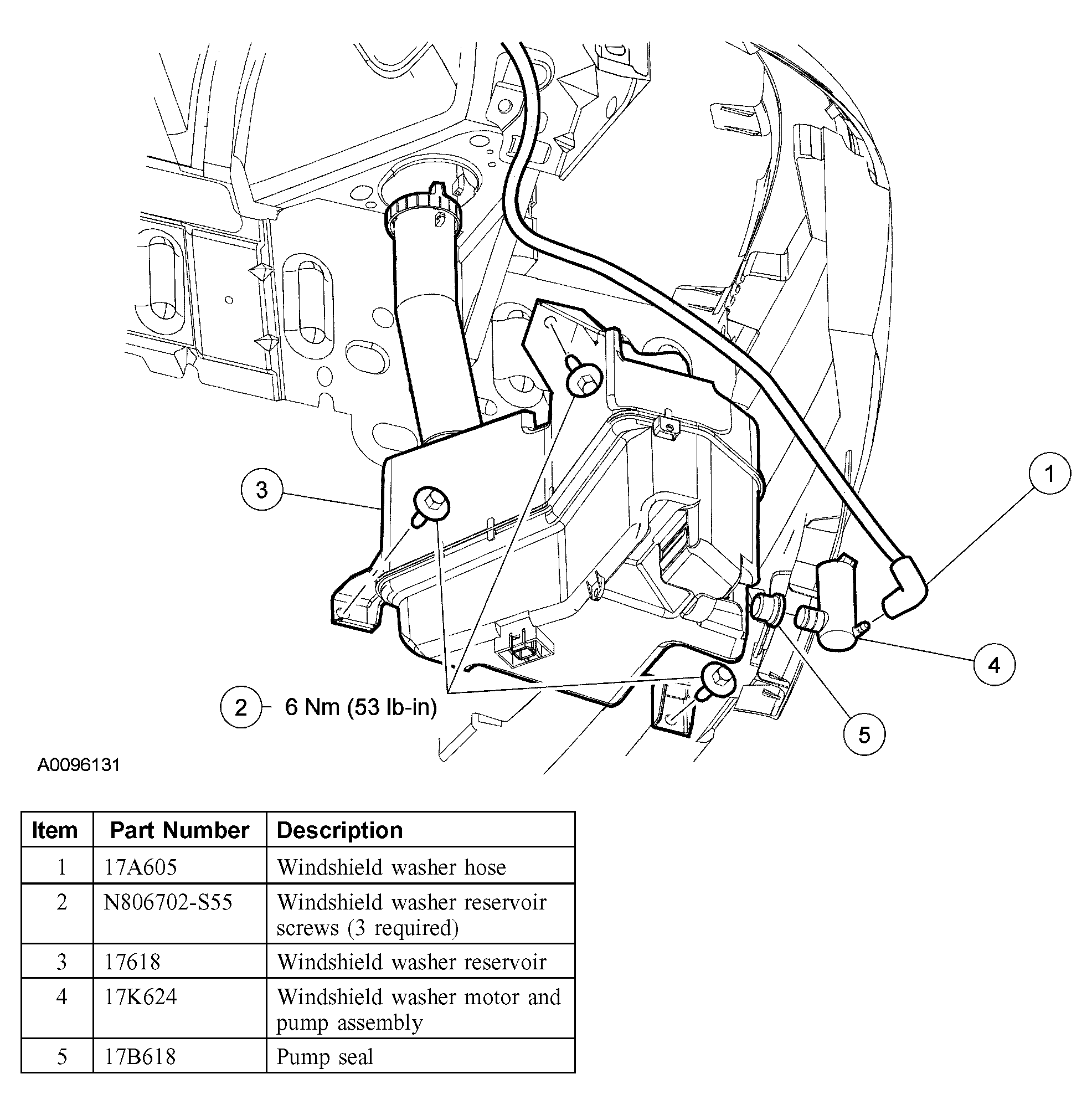

Fig 1: Exploded View Of Windshield Washer Pump And Reservoir Component
G03999814Courtesy of FORD MOTOR CO.
