Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the door lock control switch electrical connector.
  3. Release the switch from the locking tabs.

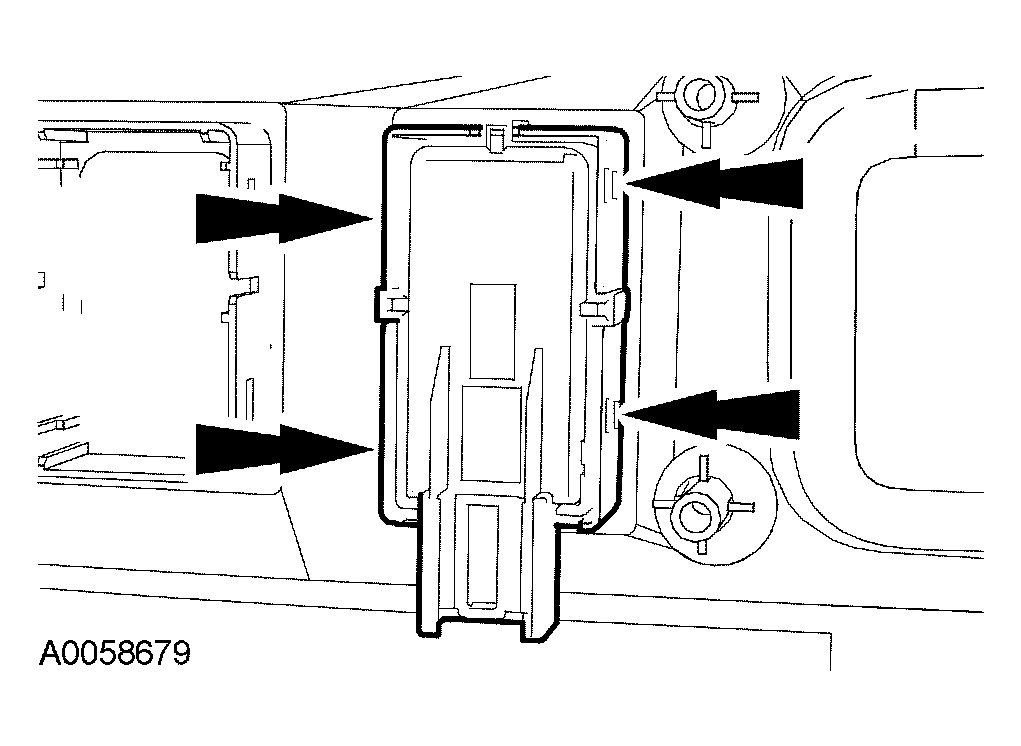

    Fig 1: Identifying Door Lock Control Switch Electrical Connector
    G03999774Courtesy of FORD MOTOR CO.
  4. Remove the door lock control switch.
  5. To install, reverse the removal procedure.
