Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

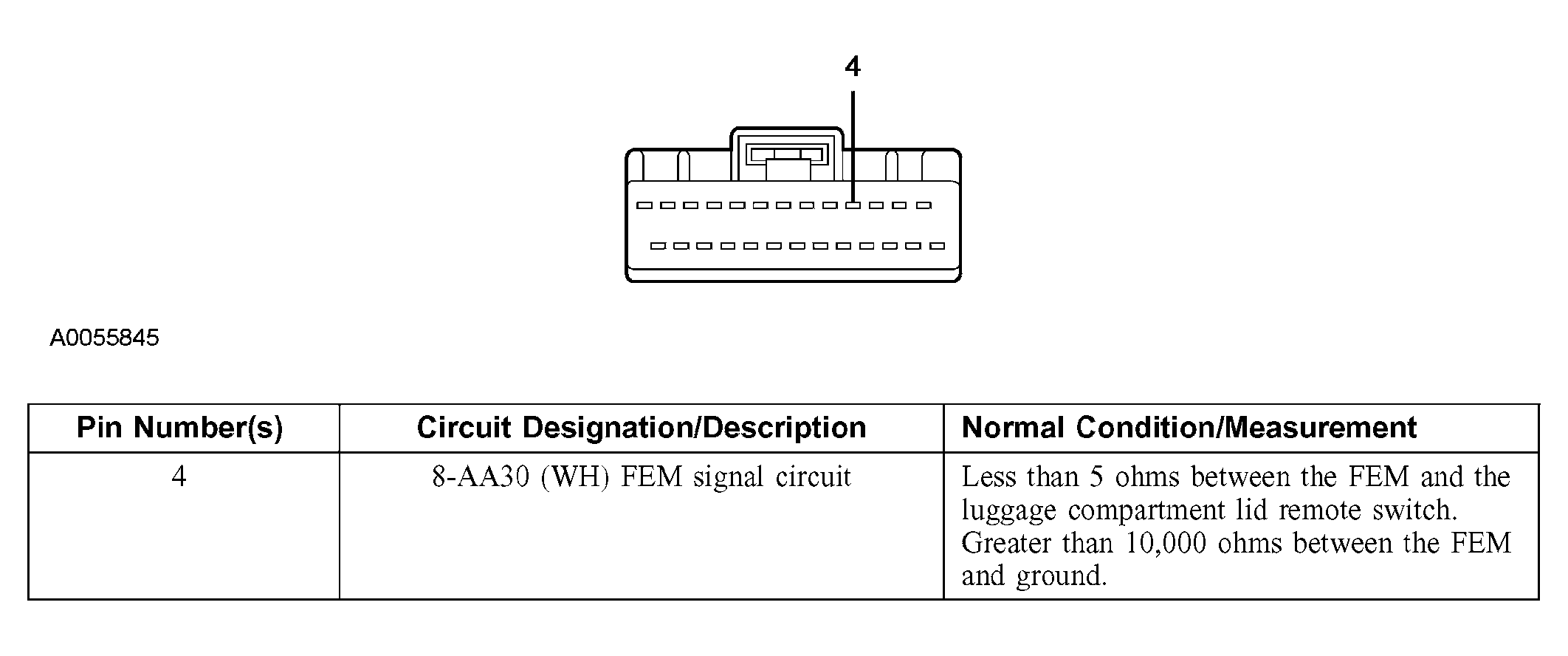

Fig 1: Connector Circuit Reference - Front Electronic Module (FEM) C201E

Courtesy of FORD MOTOR CO.

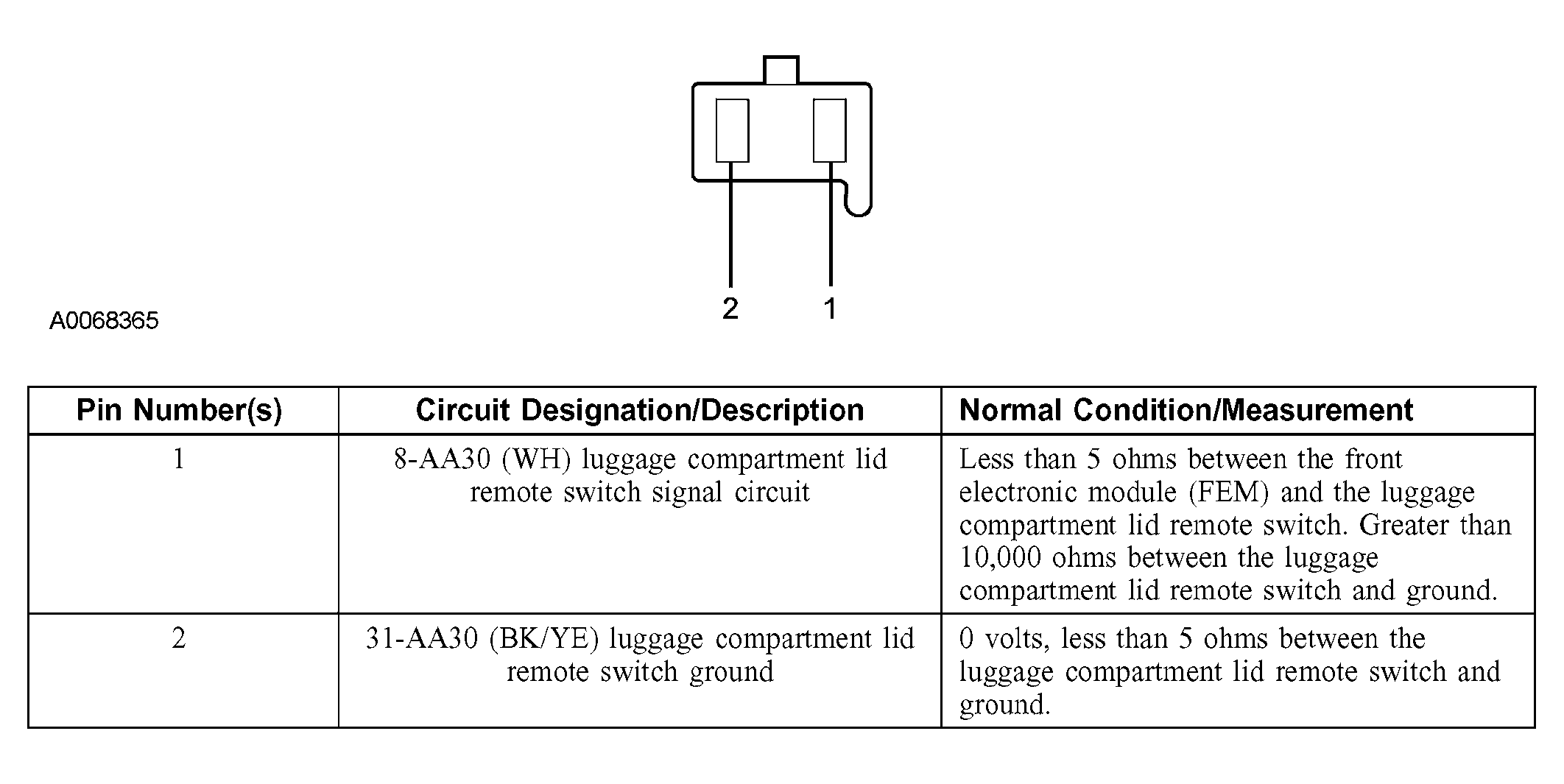

Fig 2: Connector Circuit Reference - Luggage Compartment Lid Remote Switch C207

Courtesy of FORD MOTOR CO.

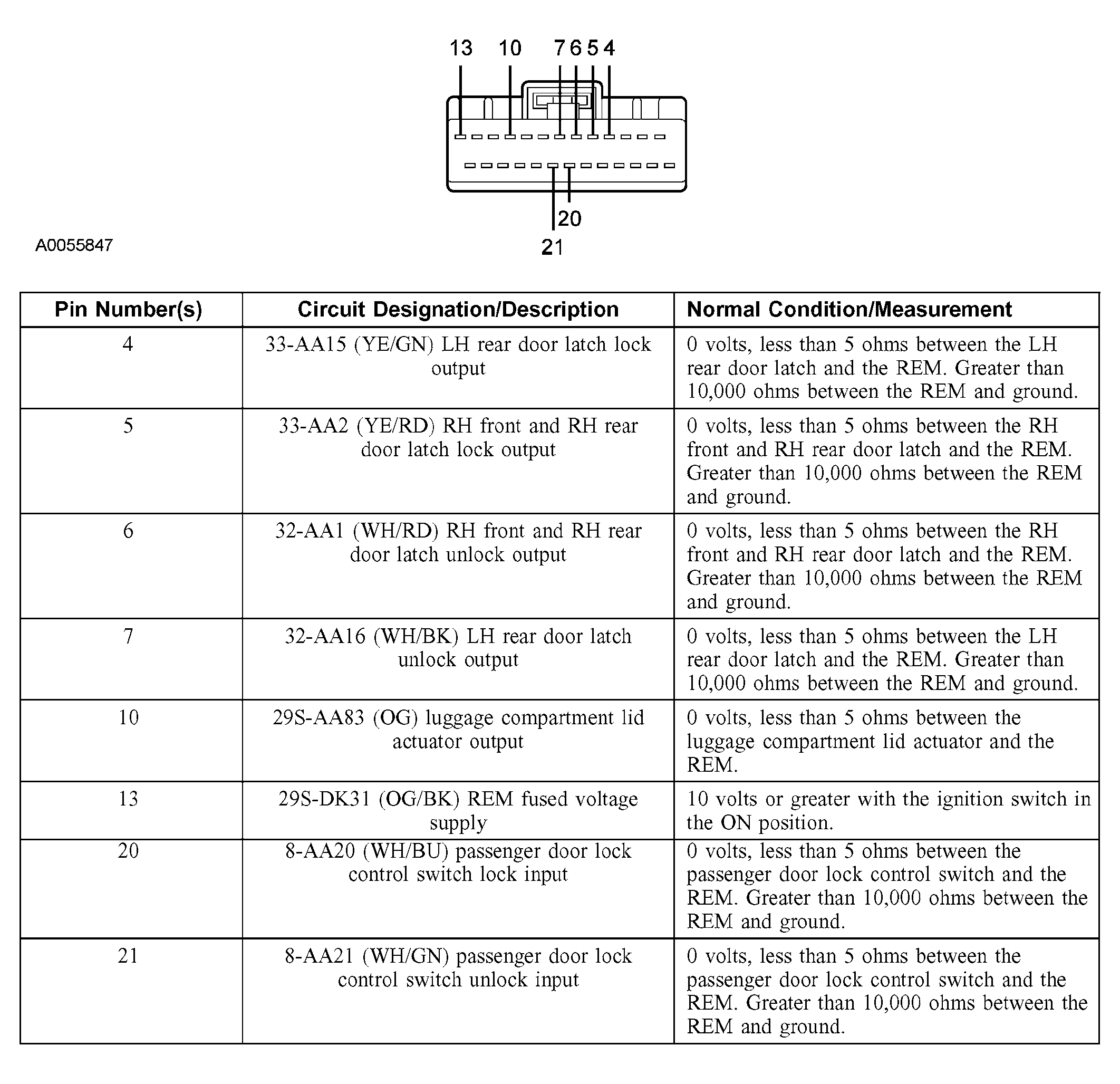

Fig 3: Connector Circuit Reference - Rear Electronic Module (REM) C420B

Courtesy of FORD MOTOR CO.

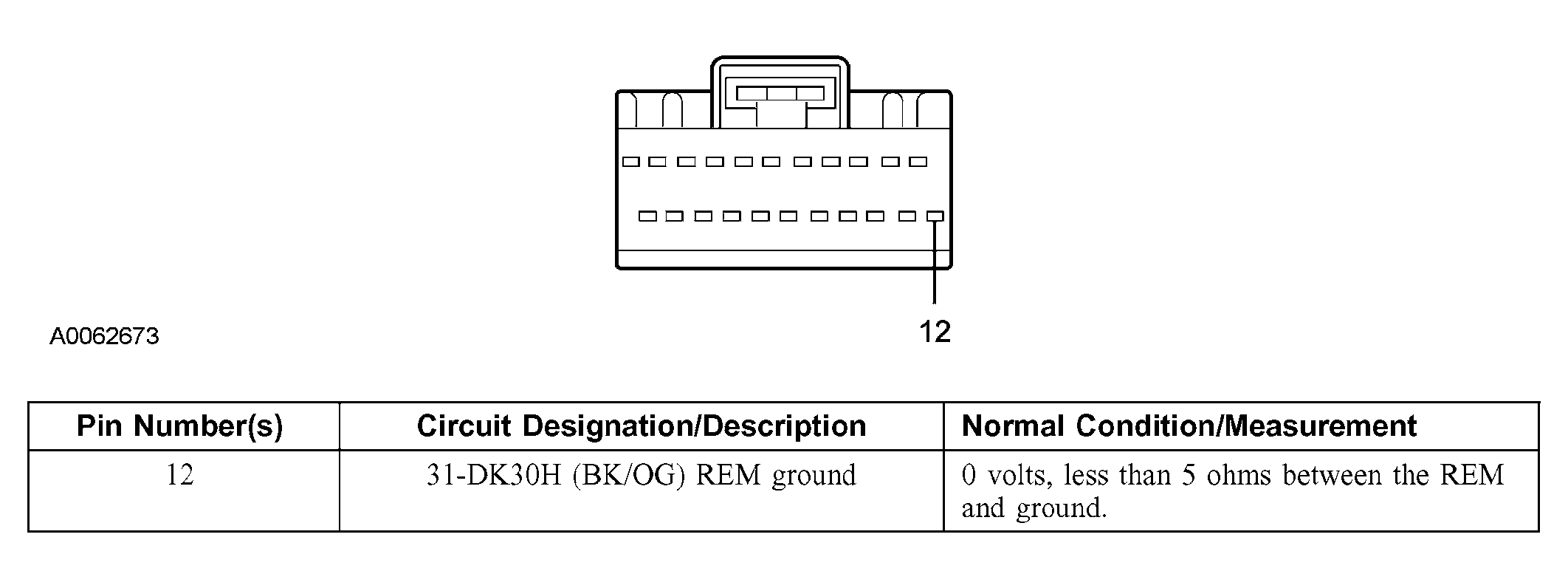

Fig 4: Connector Circuit Reference - REM C420C

Courtesy of FORD MOTOR CO.

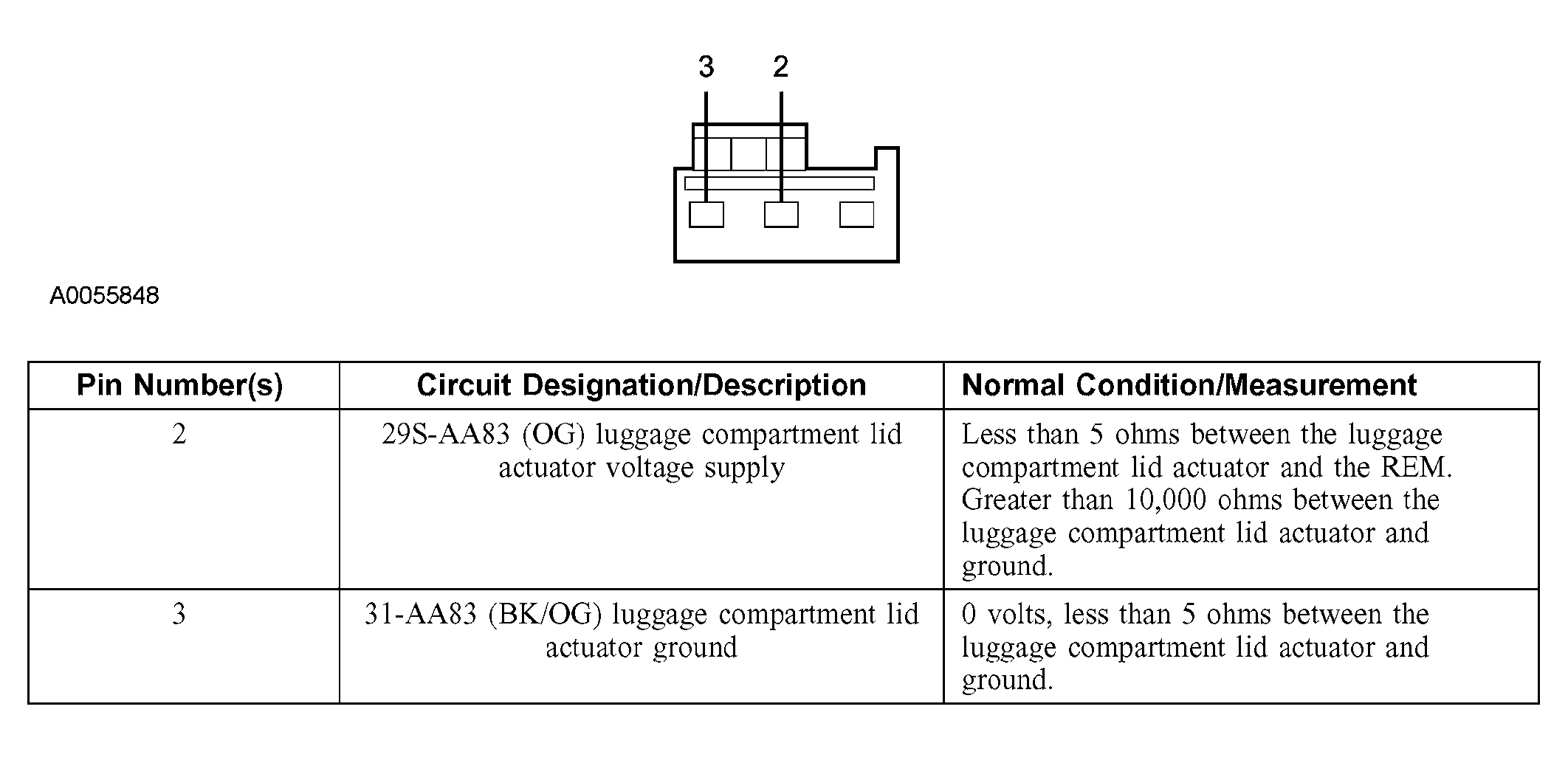

Fig 5: Connector Circuit Reference - Luggage Compartment Lid Actuator C430

Courtesy of FORD MOTOR CO.

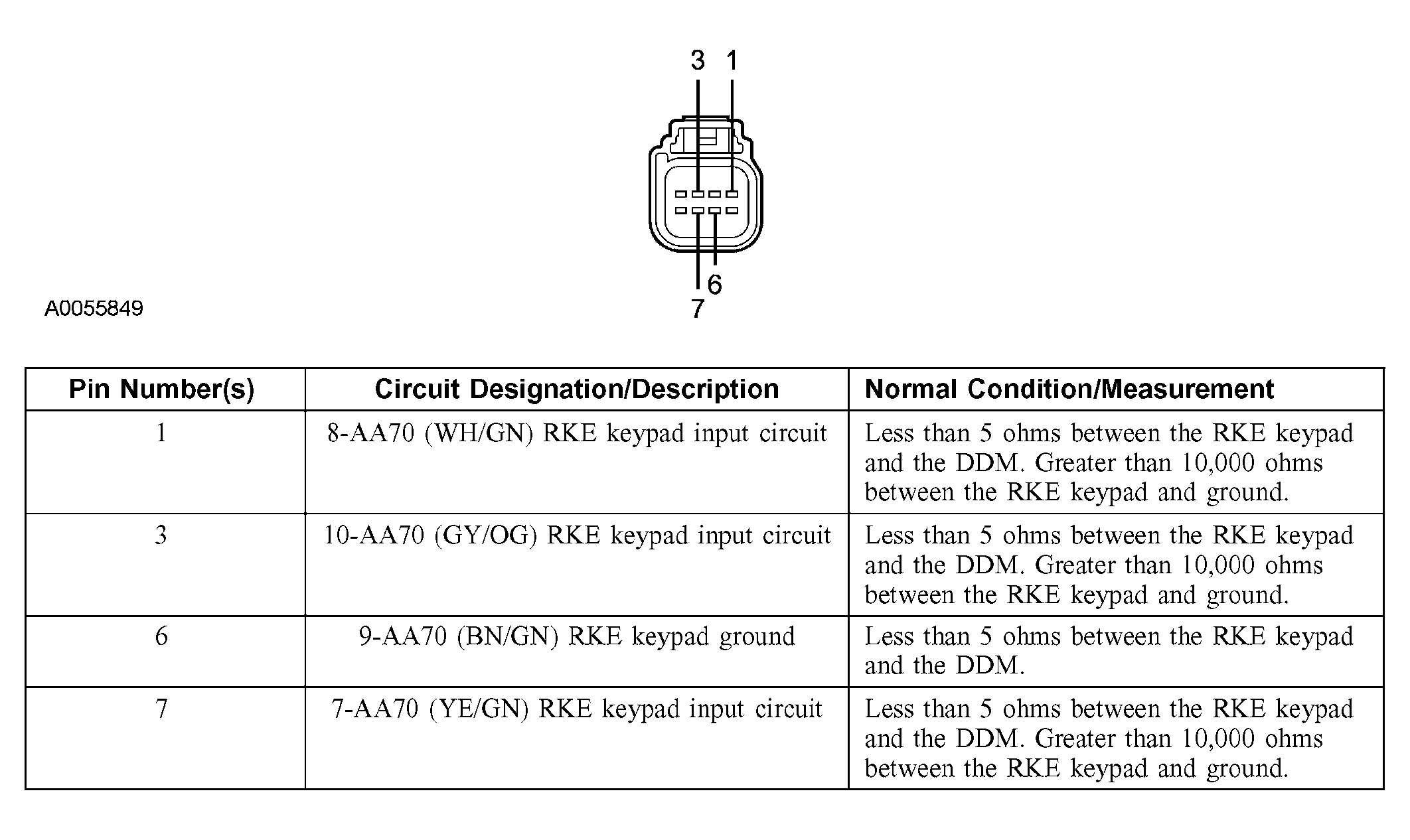

Fig 6: Connector Circuit Reference - Remote Keyless Entry (RKE) Keypad C500

Courtesy of FORD MOTOR CO.

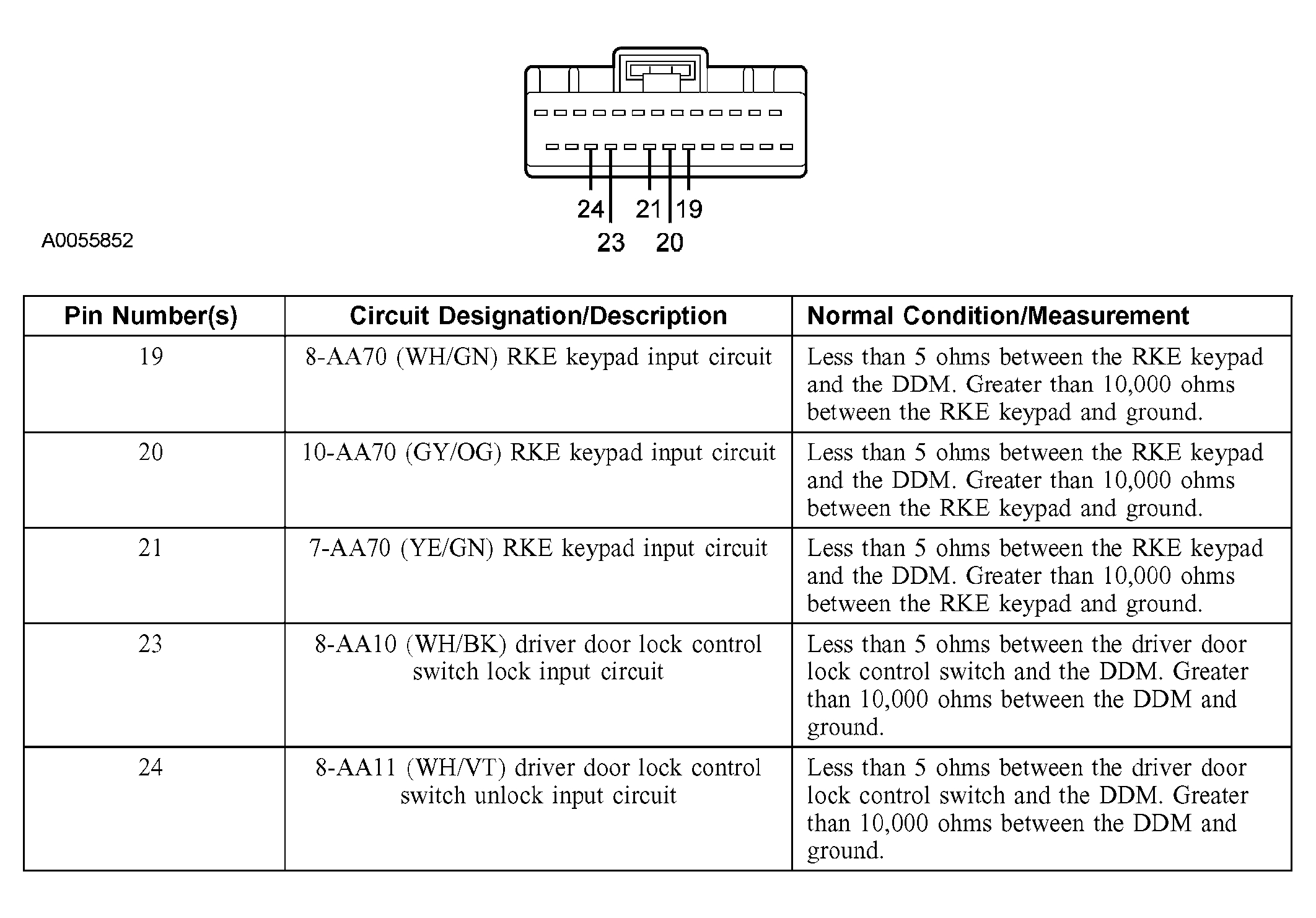

Fig 7: Connector Circuit Reference - Driver Door Module (DDM) C501C

Courtesy of FORD MOTOR CO.

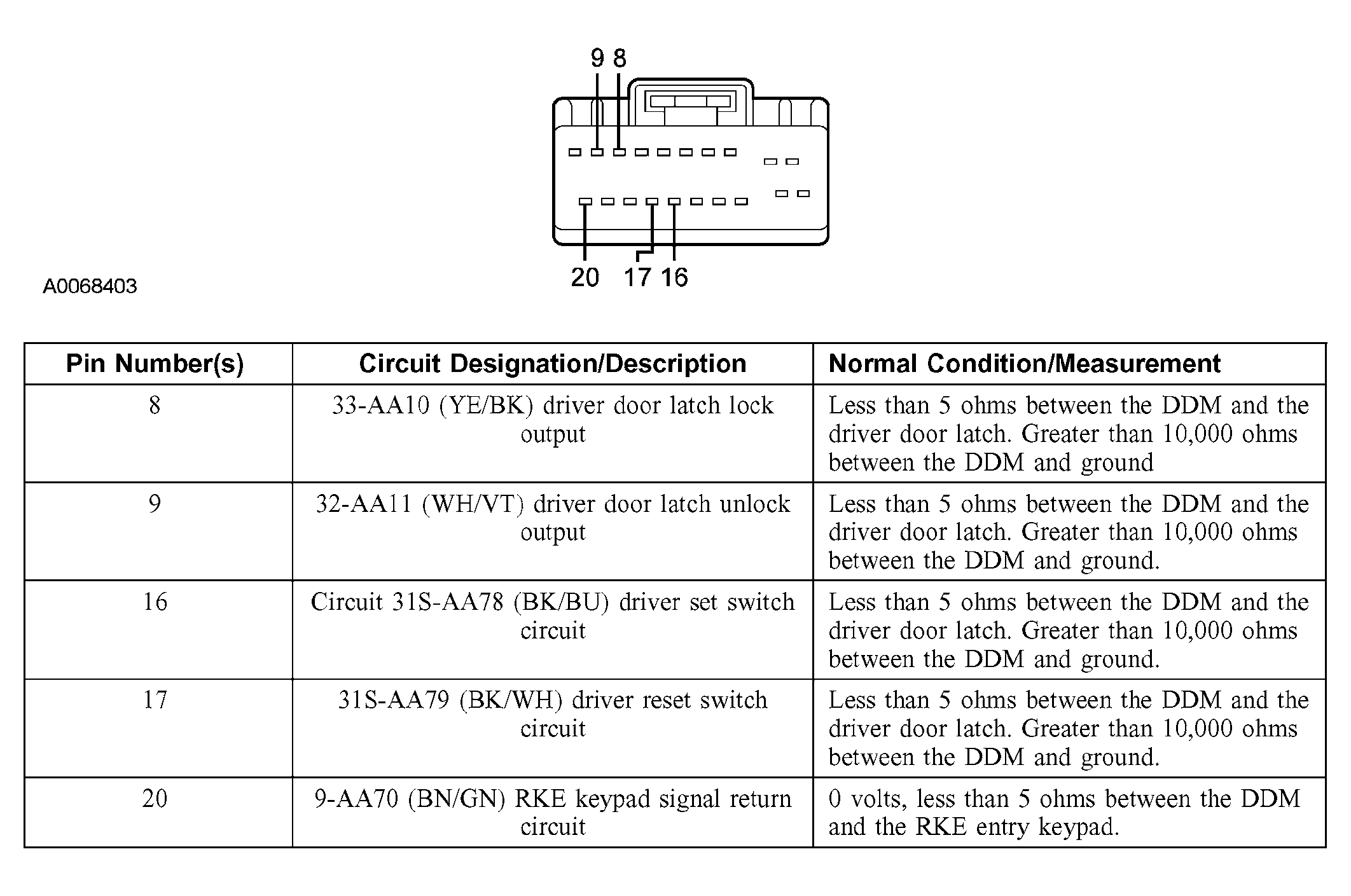

Fig 8: Connector Circuit Reference - DDM C501D

Courtesy of FORD MOTOR CO.

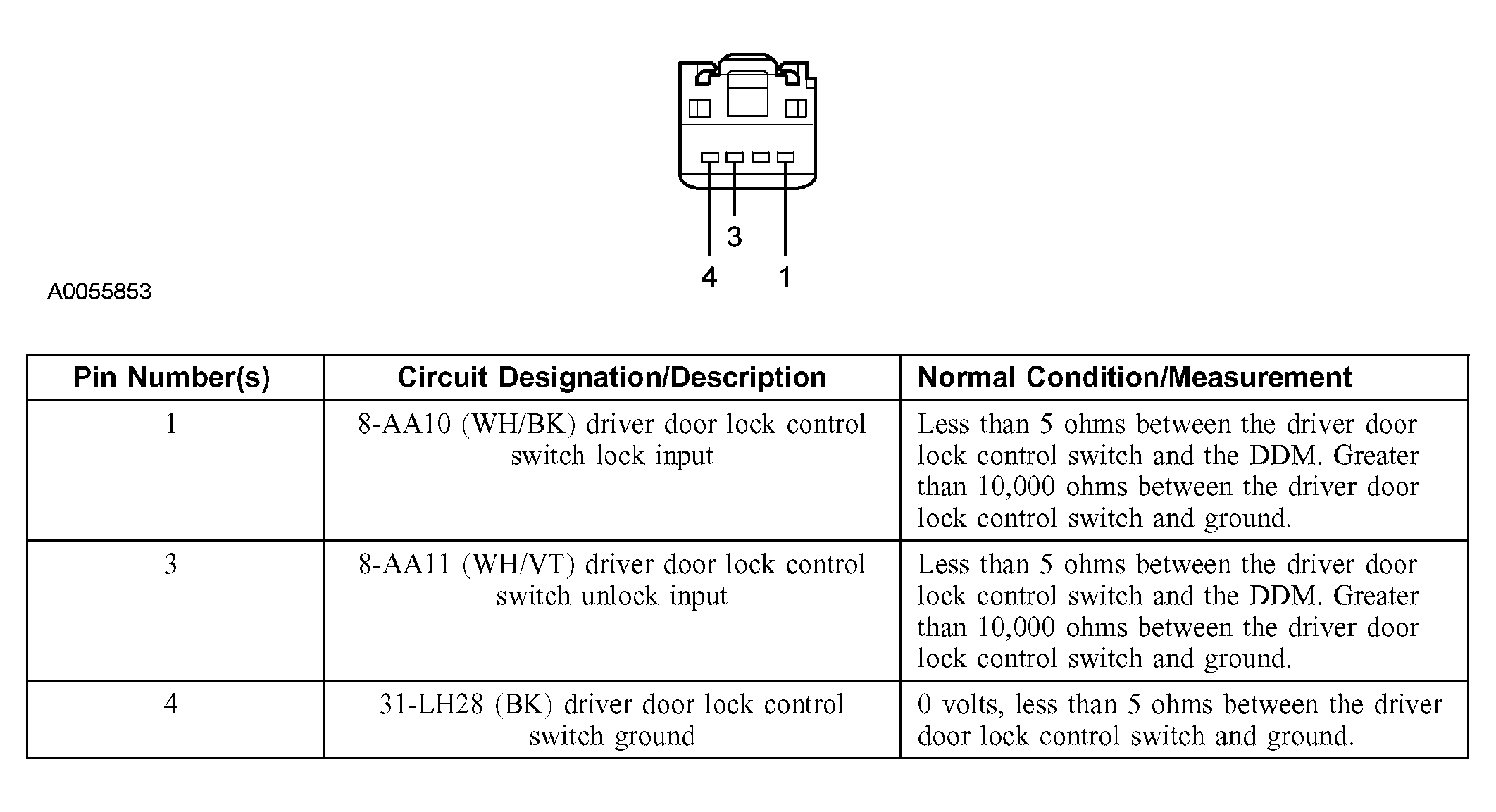

Fig 9: Connector Circuit Reference - Driver Door Lock Control Switch C505

Courtesy of FORD MOTOR CO.

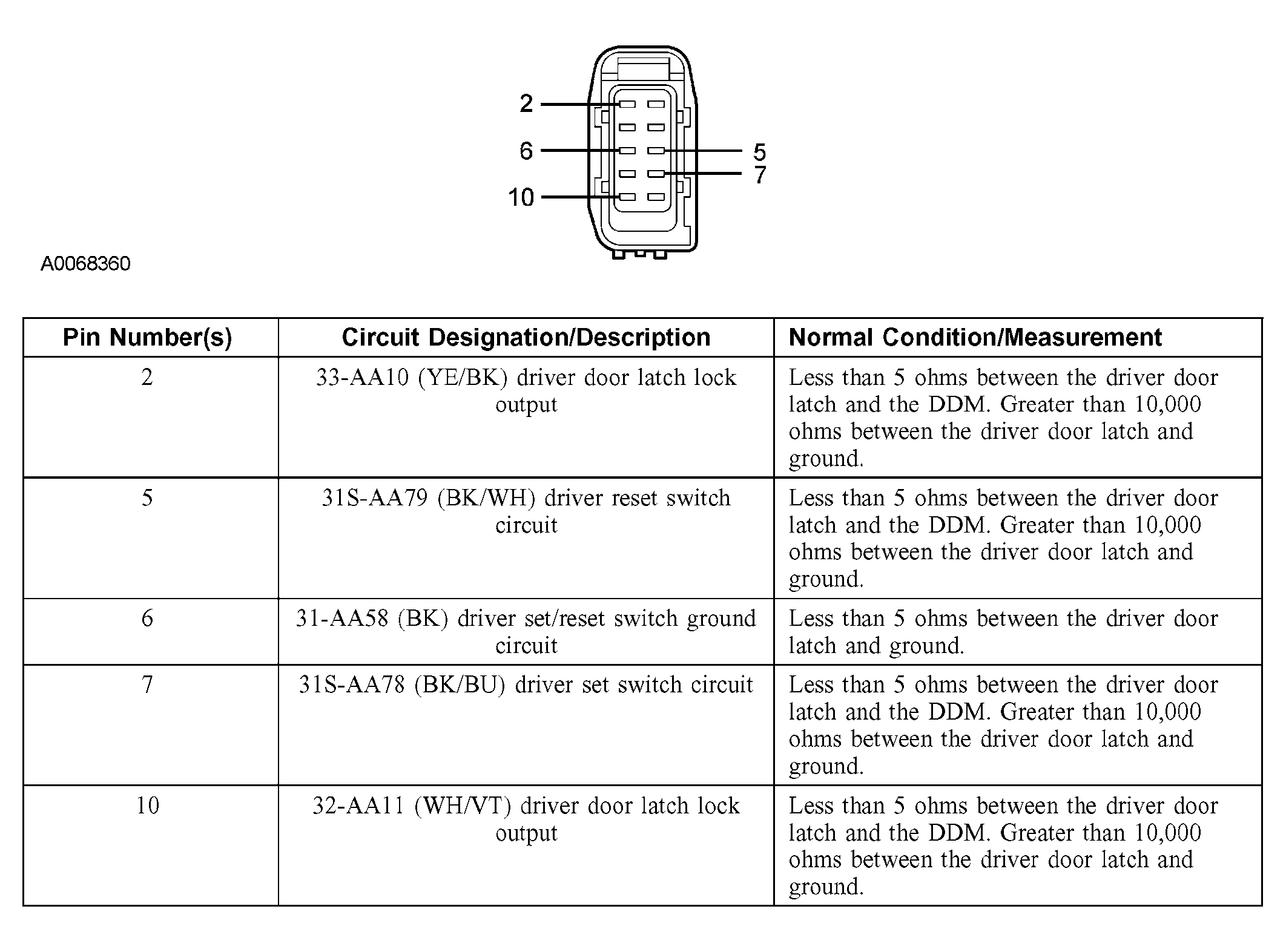

Fig 10: Connector Circuit Reference - Driver Door Latch C525

Courtesy of FORD MOTOR CO.

Fig 11: Connector Circuit Reference - Passenger Door Lock Control Switch C605

Courtesy of FORD MOTOR CO.

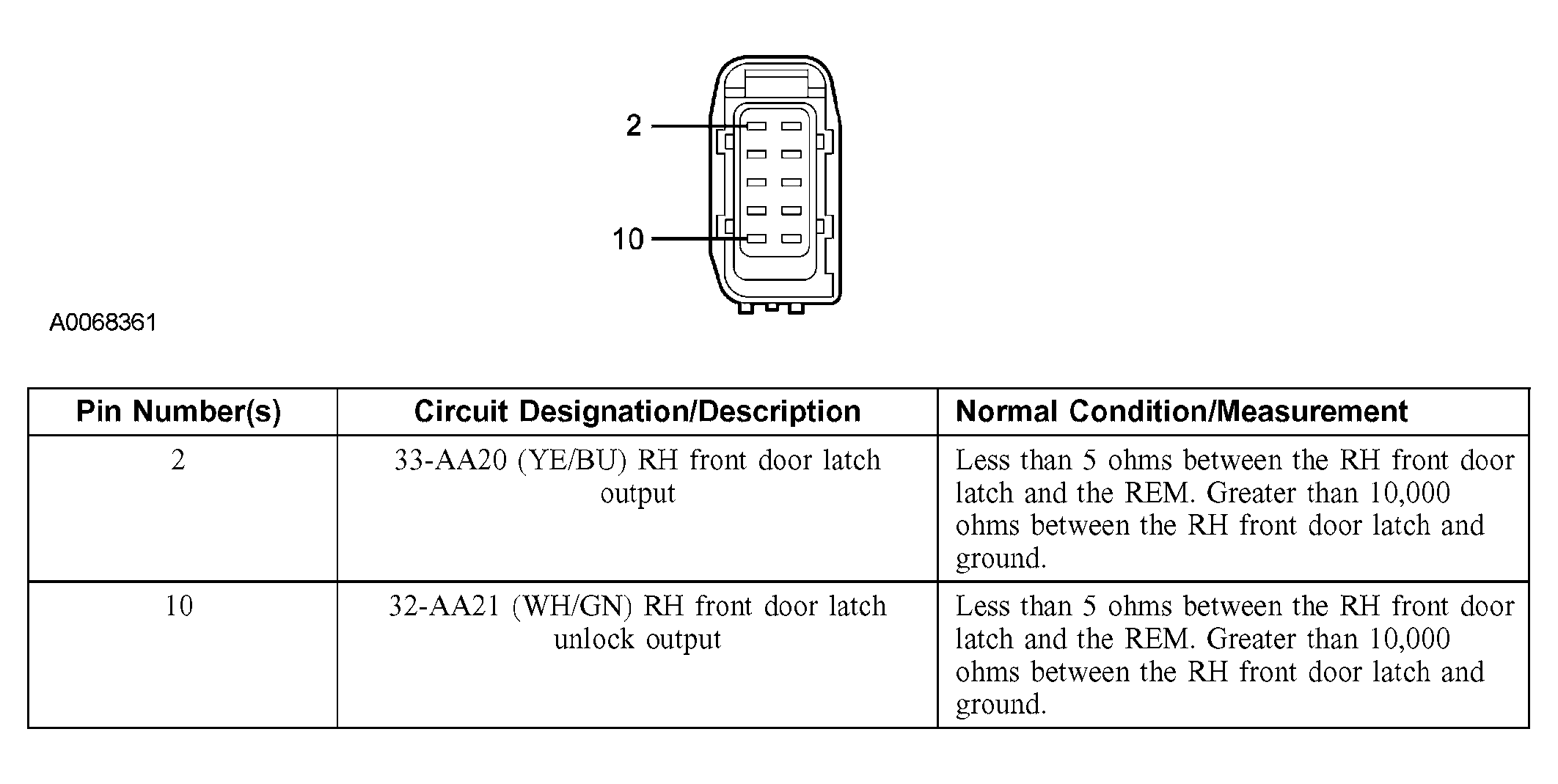

Fig 12: Connector Circuit Reference - RH Front Door Latch C609

Courtesy of FORD MOTOR CO.

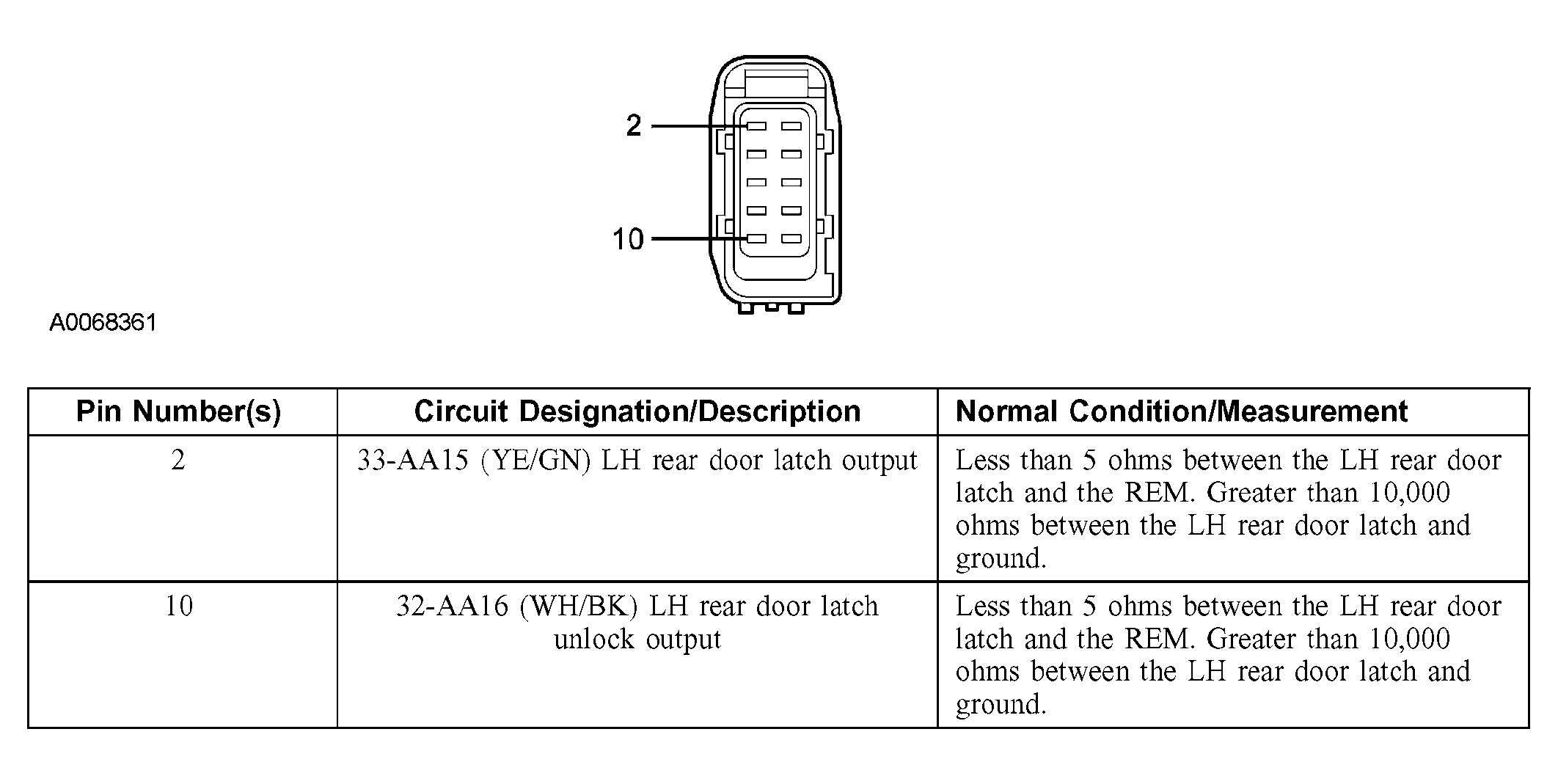

Fig 13: Connector Circuit Reference - LH Rear Door Latch C704

Courtesy of FORD MOTOR CO.

Fig 14: Connector Circuit Reference - LH Rear Door Latch C804

Courtesy of FORD MOTOR CO.
