Rear Electronic Module (REM) C420g

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

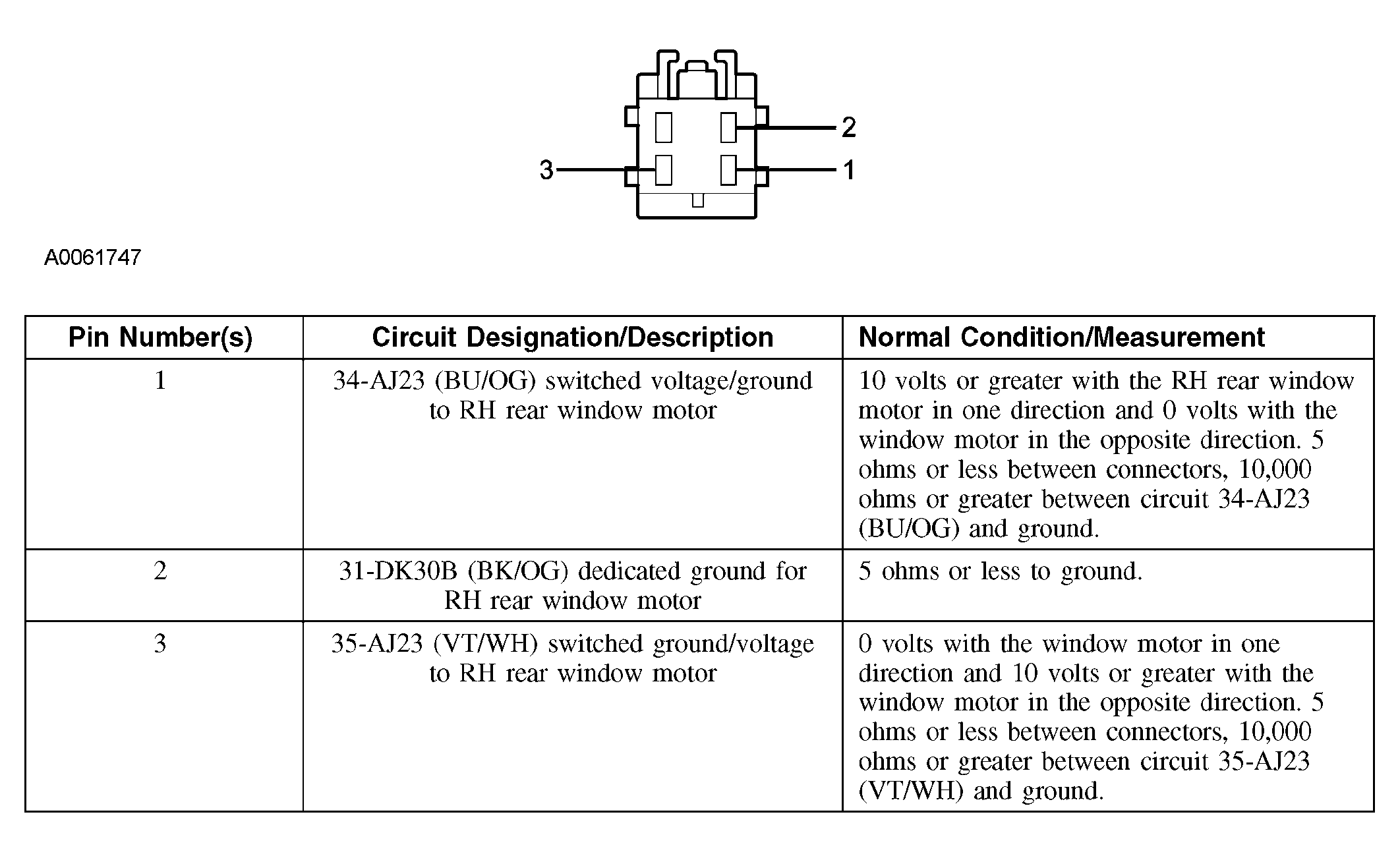

Fig 1: Identifying Rear Electronic Module (REM) C420G Connector Pinouts
G03999618Courtesy of FORD MOTOR CO.
