RH Rear Window Control Switch C801

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

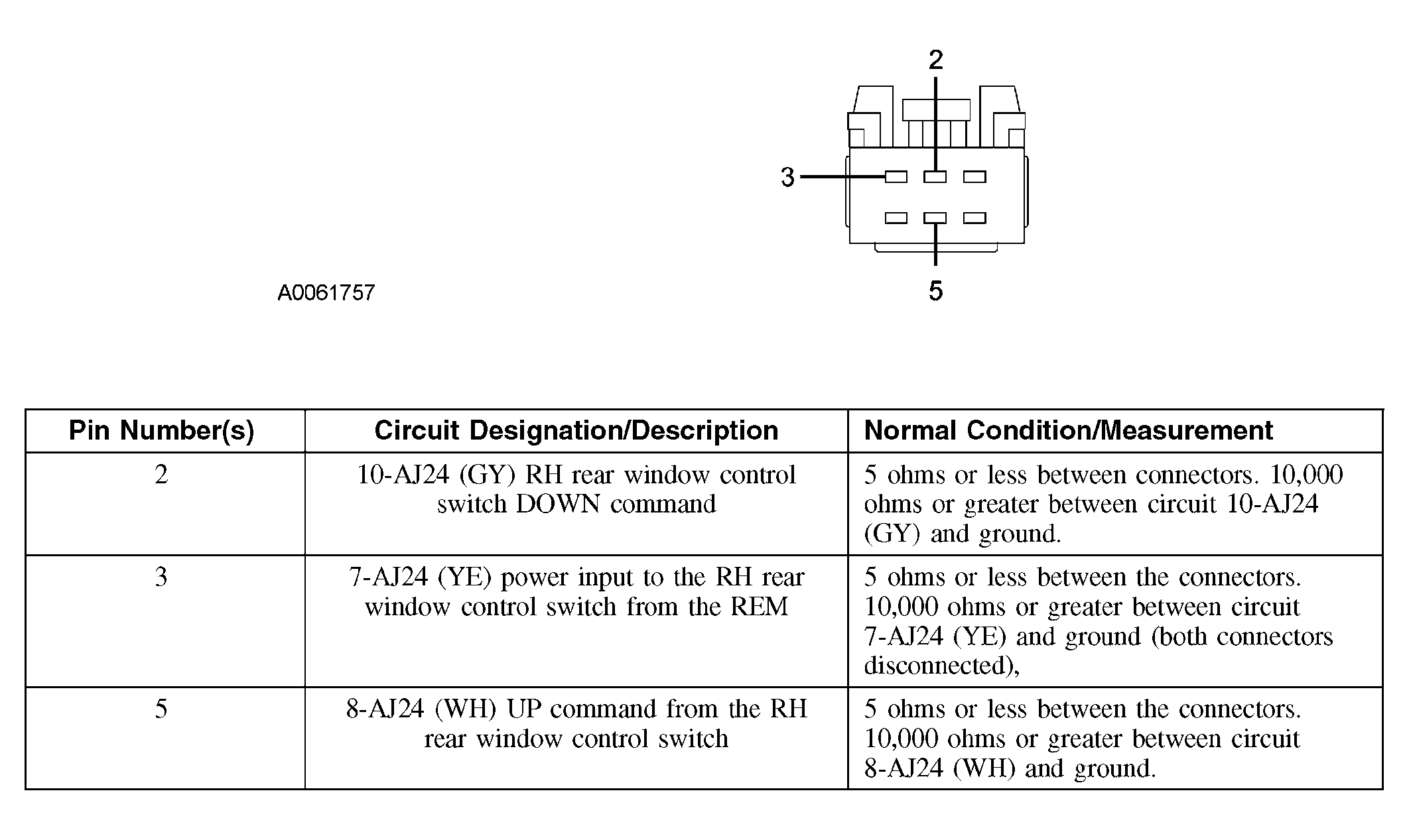

Fig 1: Identifying RH Rear Window Control Switch C801 Connector Pinouts
G03999628Courtesy of FORD MOTOR CO.
