LH Front Window Control Switch C504a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

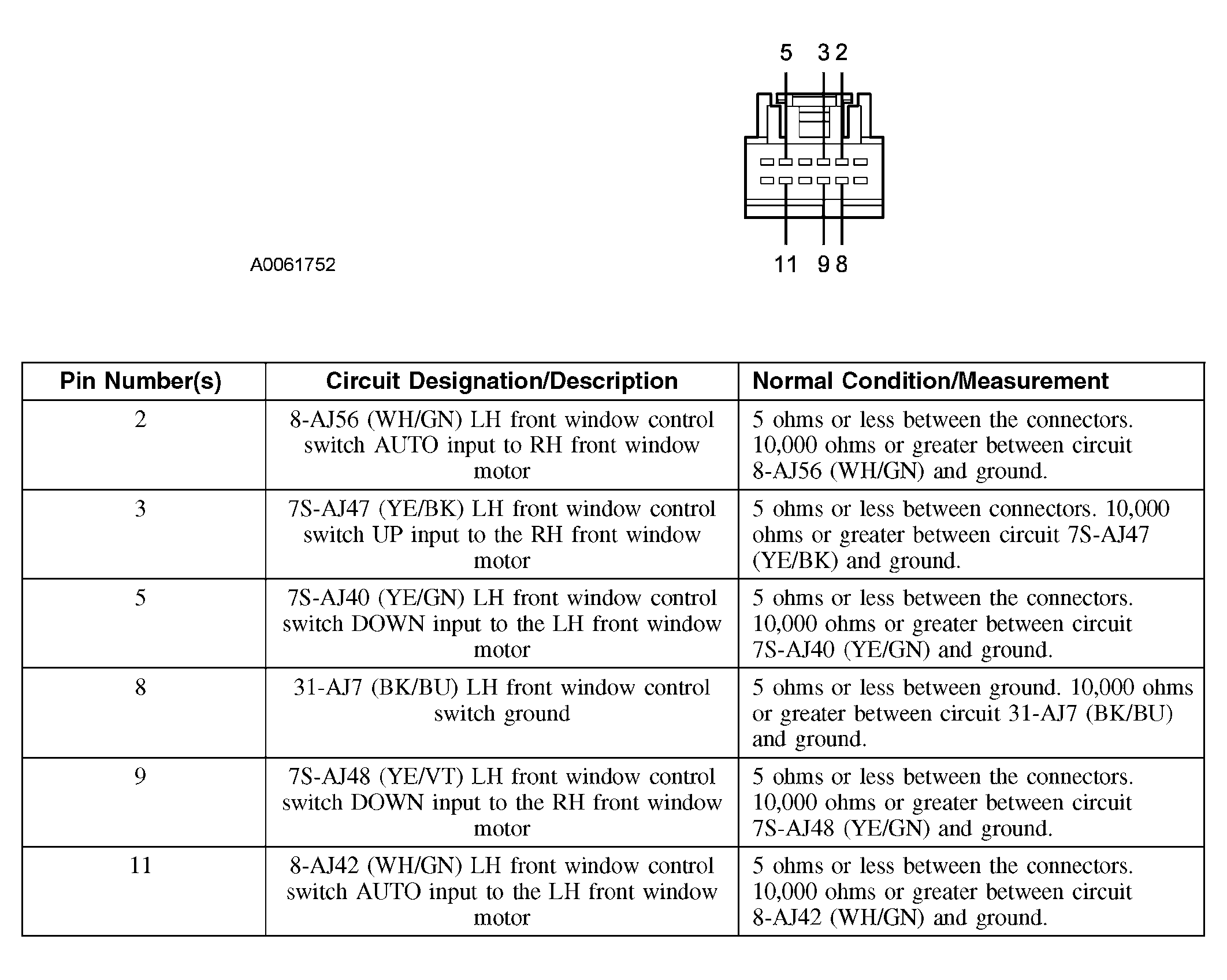

Fig 1: Identifying LH Front Window Control Switch C504A Connector Pinouts
G03999621Courtesy of FORD MOTOR CO.
